Shining 3D Single Scan SP V2
Jetzt auch Rechnungskauf für Firmen über Billie verfügbar
SKU P0736S EAN 6970163088129

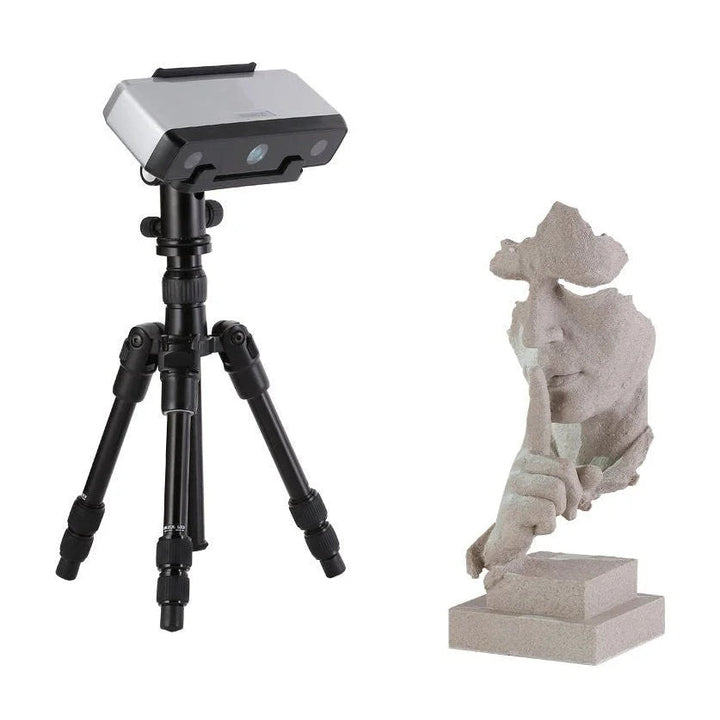

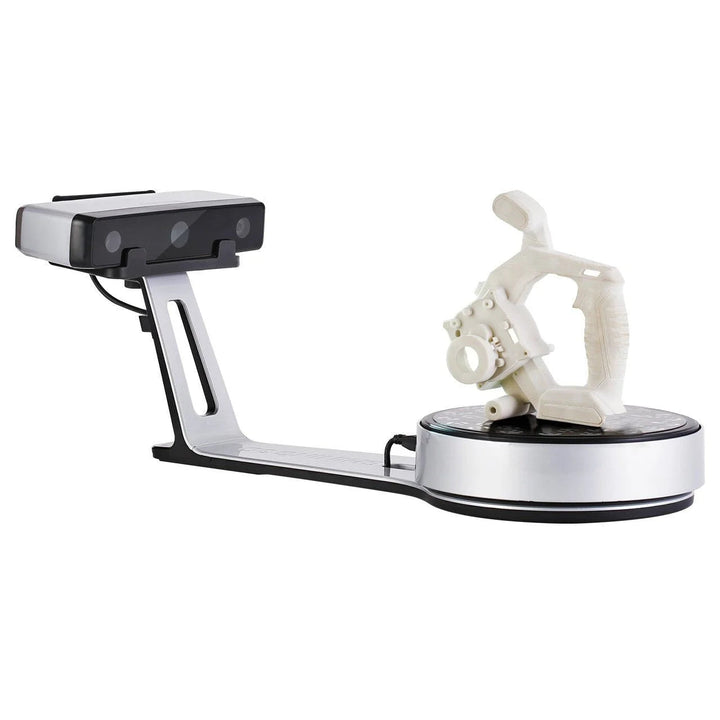

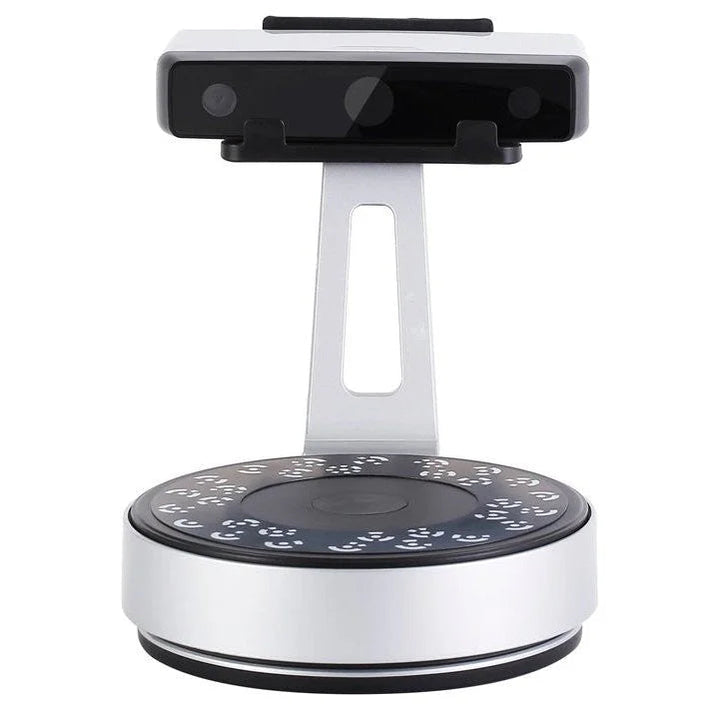

Einscan SP V2 is an upgraded version of the Einscan SP scanner which offers a significant improvement in scan speed.
Features:
- Time needed for a single scan: 1 seconds
- Time needed for a 360° scan in Auto Scan mode: 45 seconds
- Plug-and-play. Easy set-up with automated calibration
- Uses a safe structured white light, no laser or other light source that requires protection glasses
EINSCAN SP V2
Shining 3D has engineered and developed EinScan SE (Elite) and EinScan-SP (Platinum), with unique different specifications to meet most applications' requirement. Includes dual scan modes: Auto Scan and Fixed Scan. Manages a wide scan range from small to large. Scan in color, easy reconstruction of the real physical feature of an object.
EINSCAN-SP – COMPLETES THE MODEL RANGE
The EinScan-SP is the next generation of EinScan-S with its new design and upgraded capacity. Model SP fills a product gap between the more basic EinScan-S model and the more advanced EinScan-Pro. EinScan-SP is both easy to use, but also delivers fast, high resolution and reliable 3D scan data, perfect for development engineers, designers and mechanical engineers.
Some EinScan-SP features:
- Time needed for a single scan: 1 seconds
- Time needed for a 360° scan in Auto Scan mode: 45 seconds
- Plug-and-play. Easy set-up with automated calibration
- Uses a safe structured white light, no laser or other light source that requires protection glasses
Technische Daten
Datenblatt · Herstellerangaben| Schnittstelle | USB |
|---|---|
| Gerätegröße | 570 x 210 x 210 mm |
| Ausstattung | Einzelscan <1 Sek.; Turntable-Vollscan (360°) ca. 45 Sek.; Einzelscanbereich 200×150 mm; Turntable-Traglast 5 kg. |
| Scangröße | Min. 30×30×30 mm; Fest-Scan bis 1200×1200×1200 mm; Turntable-Scan bis 200×200×200 mm |
| Scan-Genauigkeit | ≤0,05 mm (Einzelaufnahme) |
| Scan-Auflösung | 0,17–0,2 mm (Punktabstand) |
| Scan-Technologie | Strukturiertes Licht |
| Scan-Verfahren | Desktop (Fest-/Turntable-Scan) |
| Scan-Abstand | 290–480 mm |
| Bildrate | Einzelscan <1 s; 360°-Scan (Turntable) <45 s |
| Ausgabeformat | OBJ,STL,ASC,PLY,P3,3MF |
| USB-Anschluss | USB 2.0 / 3.0 |
