Phaetus Dragon Hotend UHF
Experten-Check Ehrliche Einschätzung aus unserem Team
- Für Speed-Druck-Enthusiasten: Das Dragon UHF liefert bis zu 70,5 mm³/s Durchfluss – genug Schmelzleistung für sehr hohe Druckgeschwindigkeiten mit großen Düsen.
- Gut zu wissen: bis 500 °C und V6-kompatibel (u. a. Prusa i3 MK3/MK3S, Titan, BMG) – damit laufen auch PEEK, PEI und faserverstärkte Technikfilamente.
- Im Alltag durchdacht: Der Düsenwechsel gelingt einhändig, ohne den Heizblock zu kontern – der dünnwandige Titan-Heatbreak hält die Hitze dort, wo sie hingehört.
Persönliche Beratung von echten Machern aus Tuttlingen.
SKU P0965S EAN 6973090162580

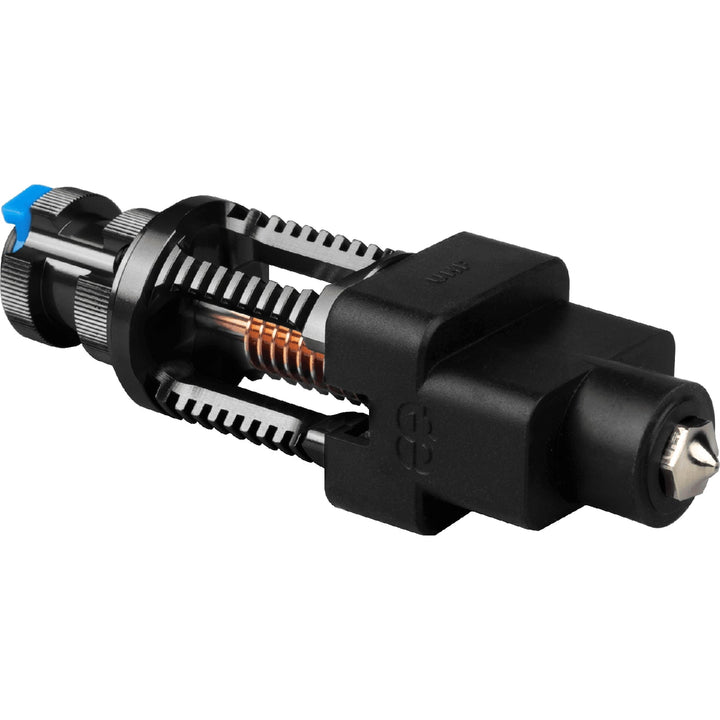

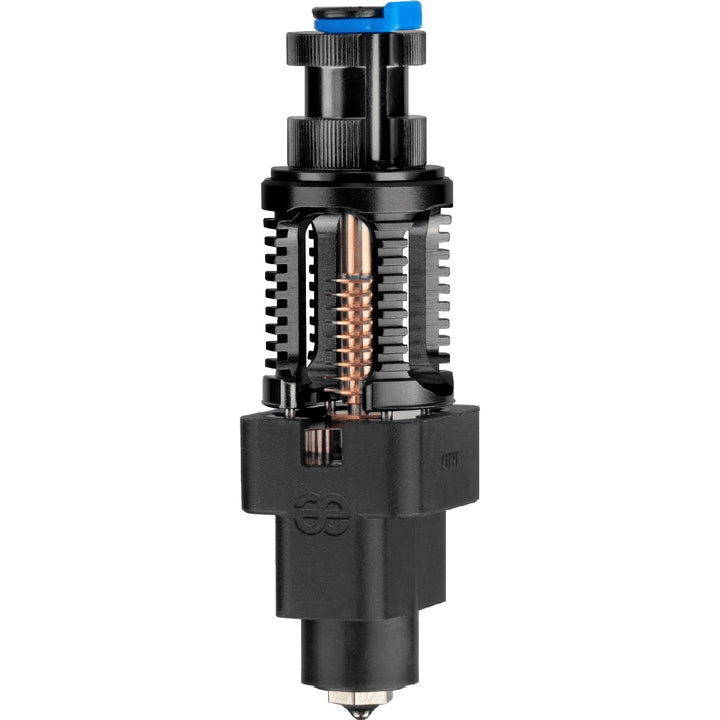

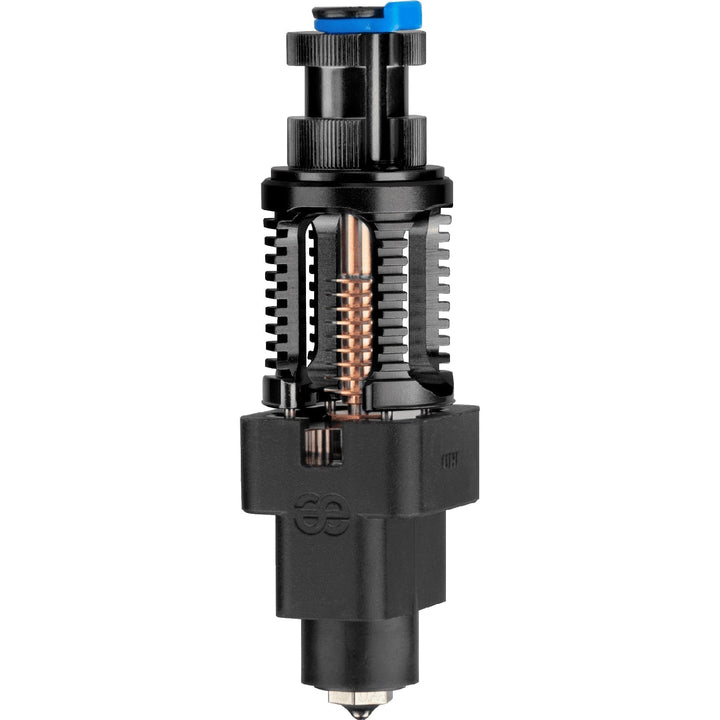

Phaetus Dragon Hot-End UHF - High-Performance Printing Solution for Fiber Filaments
Description
The Phaetus Dragon Hot-End UHF was specially developed for high-temperature and fiber filament printing. It is compatible with all V6 hot-end interfaces, including Prusa i3 MK3/MK3S printers as well as Titan and BMG extruders. This hot-end offers exceptionally high printing speed and filament compatibility, making it the ideal solution for demanding 3D printing projects.
Technical Data
Feature Description Heater Block Copper alloy, extended heater block for high throughput Extrusion Speed Up to 70.5 mm³/s Heatbreak Titanium alloy, wall thickness of 0.25 mm, high temperature resistant Compatible Printers Prusa i3 MK3/MK3S, Titan and BMG extruders Compatible Filaments PLA, ABS, PETG, TPU, PP, PA, PEEK, PEI, fiber-reinforced filaments (e.g. CF) Nozzle Change One-handed nozzle change via titanium screws Nozzle Diameter 0.4 mm coated copper nozzle Flow Rate Switching Seamless switching without nozzle change Filament Types Standard and composite filaments, including steel, wood, tungsten
Features & Benefits
- Ultra-High-Speed Printing: Enables printing speeds up to 70.5 mm³/s, ideal for fast and precise prints.
- Ultra-Thin Titanium Alloy Heatbreak: Only 0.25 mm wall thickness for excellent thermal insulation and fewer clogs.
- One-Handed Nozzle Change: Thanks to titanium screws, nozzles can be quickly and easily changed with one hand.
- Excellent Filament Compatibility: Compatible with a wide range of thermoplastic filaments, including fiber-reinforced and composite materials.
- Seamless Flow Rate Switching: Saves time and money as no nozzle change is required for different flow rates.
Why Should You Buy This Product?
The Phaetus Dragon Hot-End UHF sets new standards in high-temperature and fiber filament printing. It combines speed, precision, and flexibility, offering solutions for a wide range of printing requirements. With its excellent filament compatibility, ease of use, and high throughput performance, this hot-end is a worthwhile investment for professional and demanding 3D printing applications.
Technische Daten
Datenblatt · Herstellerangaben| Filamentart | PLA, PETG, ABS, ASA, TPU, PA, PC, PEEK, PEI/ULTEM, PPS (Hochtemperatur-Technikfilamente) |
|---|---|
| Max. Extrudertemperatur | 500 °C |
| Materialien | Heatbreak: Titan (0,1 mm Wandstärke) |
| Kompatibilität | Phaetus Dragon-System (UHF), V6-kompatible Düsenaufnahme |
Garantie & Gewährleistung
