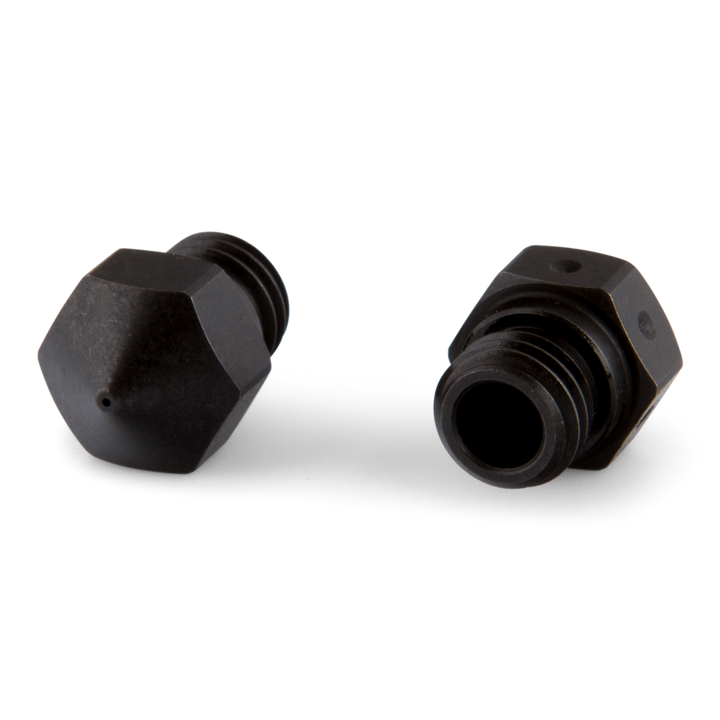

MK10 hardened steel nozzle 0.2 mm - 1 piece
Experten-Check Ehrliche Einschätzung aus unserem Team
- Für MK10-Extruder und feinste Details: Die 0,2-mm-Öffnung liefert Auflösung für Miniaturen und filigrane Beschriftungen – bei Toleranzen unter ±0,01 mm.
- Gehärteter Stahl macht sie unempfindlich gegen abrasive Filamente – wobei CF-Fasern in 0,2-mm-Öffnungen generell zum Verstopfen neigen.
- Realistisch planen: 0,2 mm bedeutet deutlich längere Druckzeiten und höhere Ansprüche an die Filamentqualität – nach dem Wechsel das Bett neu leveln.
Persönliche Beratung von echten Machern aus Tuttlingen.
SKU P4003S EAN 7340002111100
MK10 hardened steel nozzle 0.2 mm - 1 piece
Discover the MK10 hardened steel nozzle with a diameter of 0.2 mm, specially designed for precise 3D printing results. This premium nozzle from PrimaCreator is an essential accessory for every 3D printing enthusiast who values quality and detail accuracy.
Premium nozzles for excellent print results
PrimaCreator's premium nozzles are more than just spare parts – they are the key to impressive print results. A high-quality nozzle is comparable to a sharp pencil: you need it to achieve great prints.
High-quality materials and precise manufacturing
All nozzles from PrimaCreator are made from high-quality brass or steel and manufactured in a modern factory. The tolerance is less than ± 0.01 mm, which means your filament gets a very smooth and clear surface when extruded. This leads to better print results.
- The manufacturing process includes an ultrasonic cleaning bath, followed by further cleaning and protection against surface oxidation.
- The nozzle is shaped with millimeter precision, with a tolerance of less than ± 0.01 mm.
- Removing sharp edges is a crucial step to prevent clogs and ensure print quality.
- Each batch is inspected, and some nozzles are cut in half for quality assurance.
- The nozzles are finally individually packed in a protective box and made ready for shipping.
Recommendations for optimal print quality
For the best results and optimal print quality, we recommend realigning the build plate after switching to a new nozzle. Please note that a PrimaCreator nozzle may be compatible with your printer, but the distance between the nozzle and the build plate needs to be adjusted.
The manufacturing process
- The process begins with the selection of high-quality materials, followed by an optical inspection of the material for each batch of nozzles.
- The material is then formed into a long rod, which in our process only happens once, unlike many cheaper alternatives where this step must be repeated multiple times.
Technische Daten
Datenblatt · Herstellerangaben| Filament-Durchmesser | 0,2 mm |
|---|---|
| Max. Extrudertemperatur | 450 °C |
| Düse | MK10, 0,2 mm |
| Düsenmaterial | Gehärteter Stahl |
