FlowTech Hotend ELEGOO Neptune 4 Plus / 4 Max

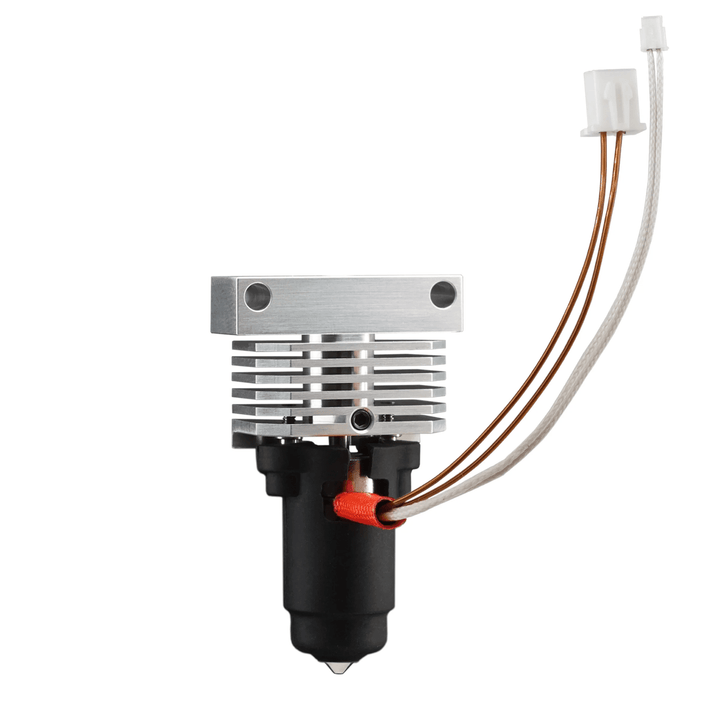

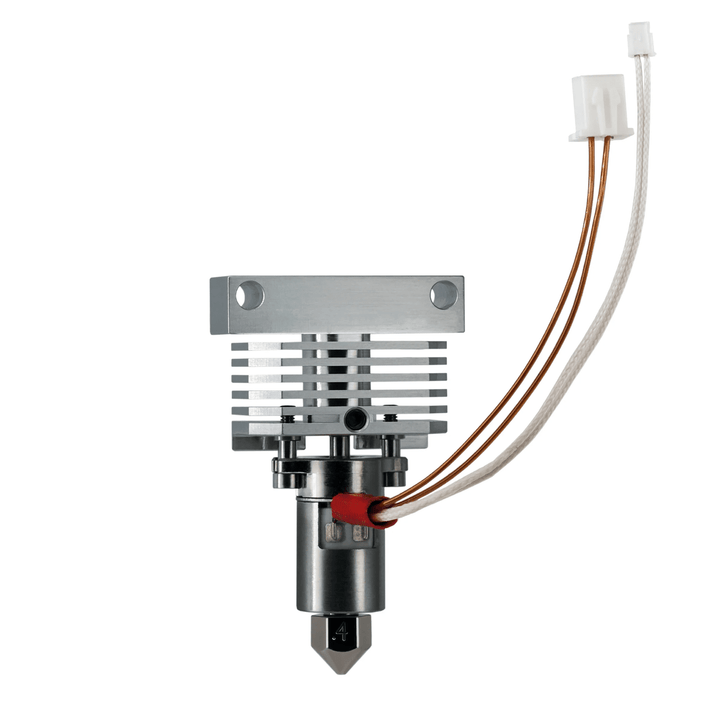

FlowTech™ Hotend for ELEGOO Neptune 4 Plus / 4 Max

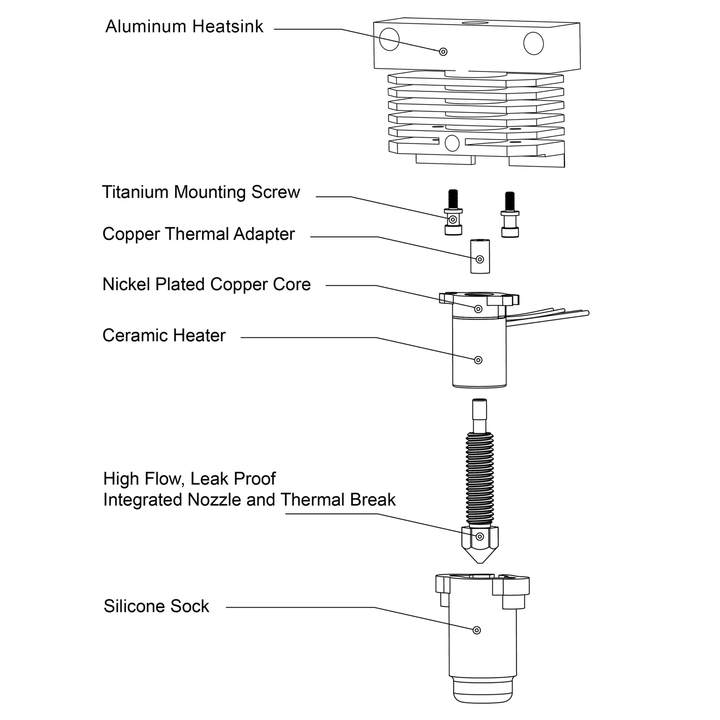

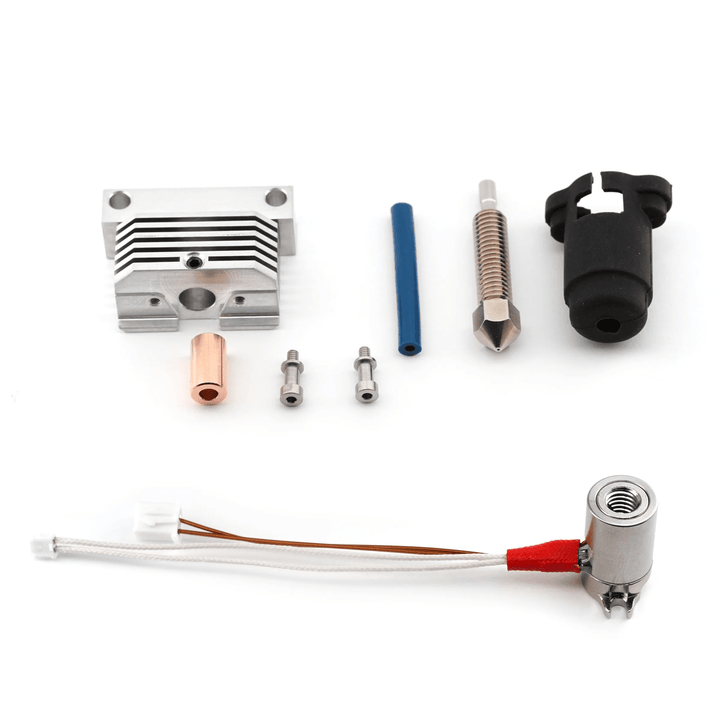

Installing this hotend on the Elegoo Neptune 4 Plus and Neptune 4 Max printers is a very quick and easy process. The kit includes a plug-and-play heating core, thermistor, and heat sink, fully compatible with the Neptune 4 Plus and 4 Max. The standard Z-height, build volume, and firmware remain unchanged.

By upgrading your Elegoo Neptune 4 Plus and 4 Max to a FlowTech ecosystem, you can use a full range of FlowTech leak-proof nozzles, including the Diamondback nozzles that feature a solid diamond tip – not just a diamond coating.

Benefits of the FlowTech hotend

• Leak-proof nozzle:
  Tired of annoying nozzle leaks that ruin your prints and waste filament? The FlowTech hotend combines nozzle and thermal break into a permanently sealed unit that ensures a leak-proof hotend.
• Easy nozzle change:
  Nozzle changes used to be a time-consuming and potentially dangerous task. With a FlowTech hotend, nozzle swaps are effortless, requiring no hot tightening, and can be done with just one hand.
• High flow rate:
  The ceramic cylindrical heater block and 28.6 mm melt zone provide excellent volumetric flow rate.
• All-metal design:
  Built for durability! The FlowTech hotend features an all-metal design that can handle most modern 3D printing materials. The entire hotend is machined and assembled in-house, with quality control performed at multiple stages of the manufacturing process. In the end, each hotend undergoes a full thermal cycle test before packaging.
• Maximum temperature of 300°C:
  This hotend is designed for temperatures up to 300°C, with a properly matched NTC thermistor for each specific printer. This special edition is perfectly tuned for the Elegoo Neptune 4 Plus and 4 Max, so no firmware changes are required.

Compatibility

Fits:

• ELEGOO Neptune 4 Plus
• ELEGOO Neptune 4 Max

Made in the USA by Microswiss
