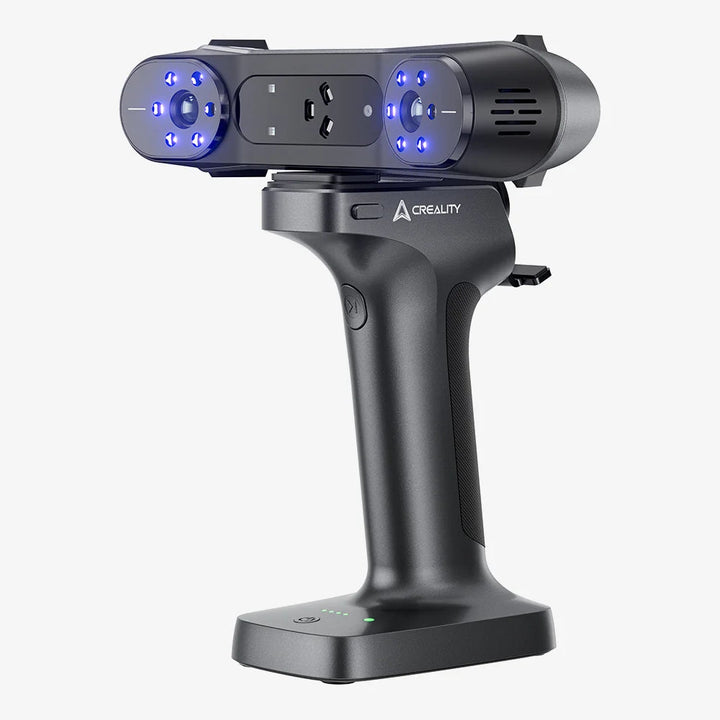

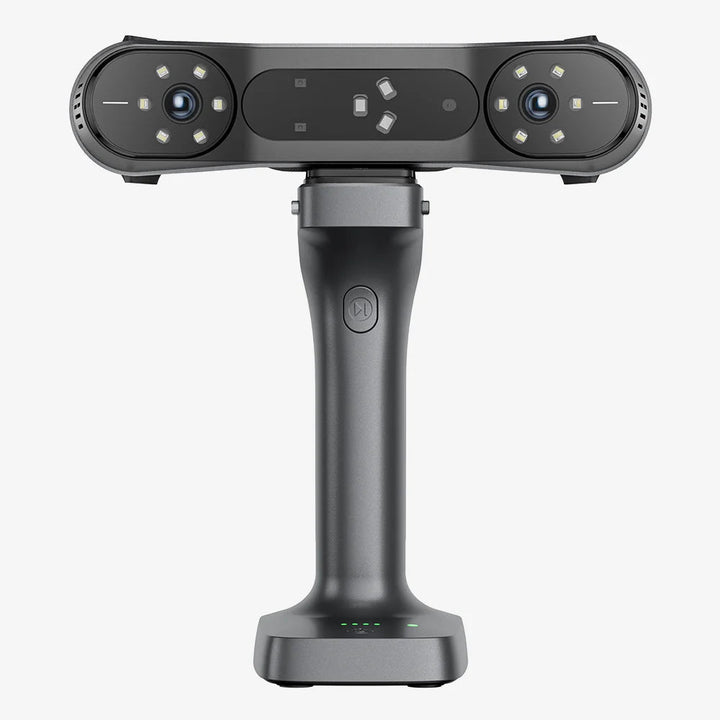

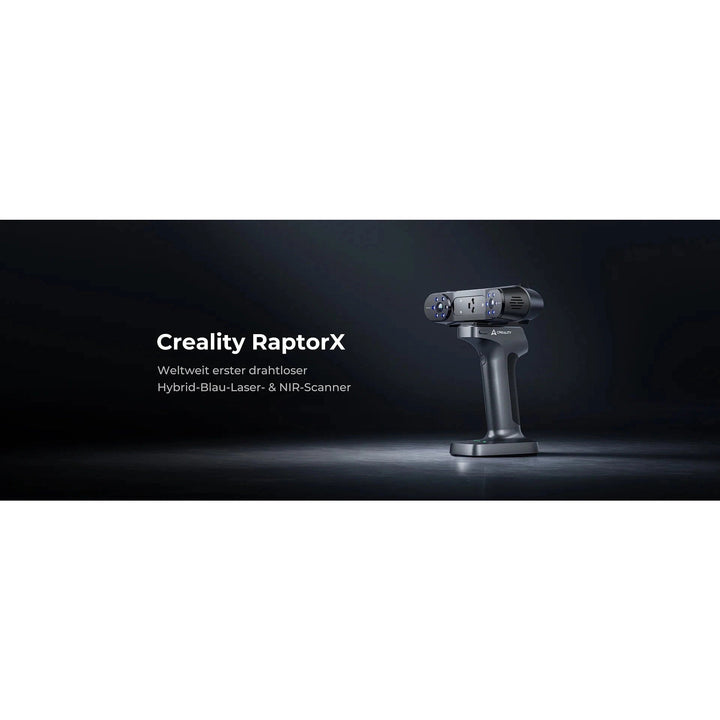

Creality RaptorX - Portable 3-in-1 3D Scanner

The Creality RaptorX is a powerful, portable, and versatile 3-in-1 3D scanner that combines both parallel blue laser lines and structured near-infrared light (NIR). This technology enables fast, accurate, and detailed capture of medium to large objects – ideal for technical parts, molds, and large automotive components.

Advantages & Main Features

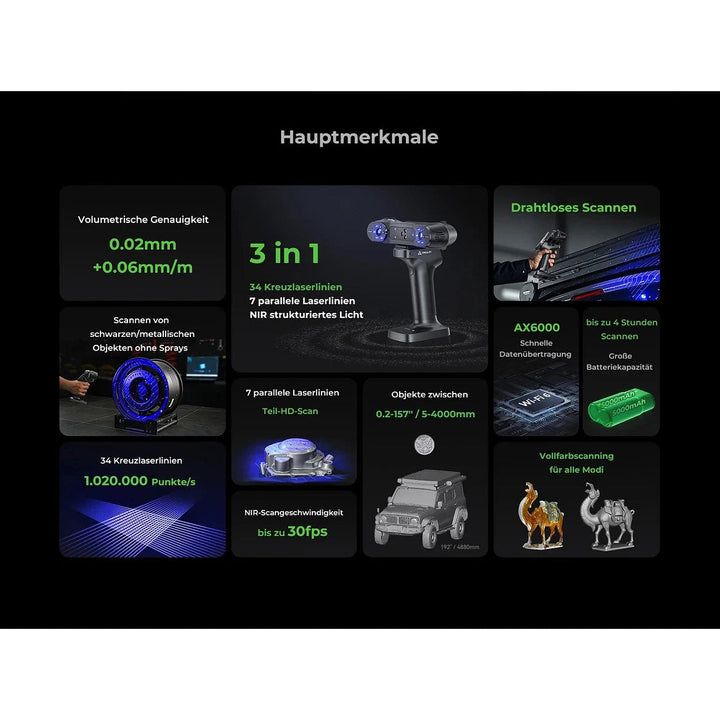

• Versatile Scan Modes:

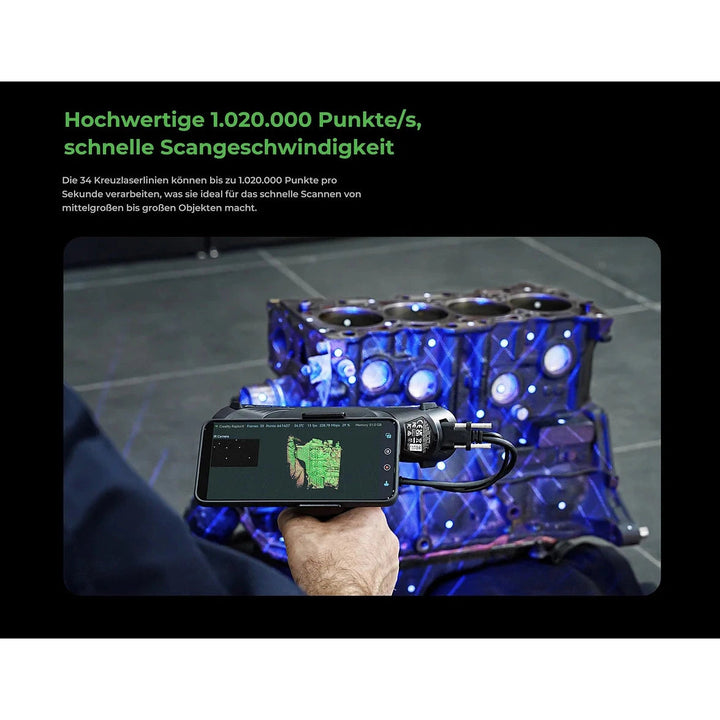

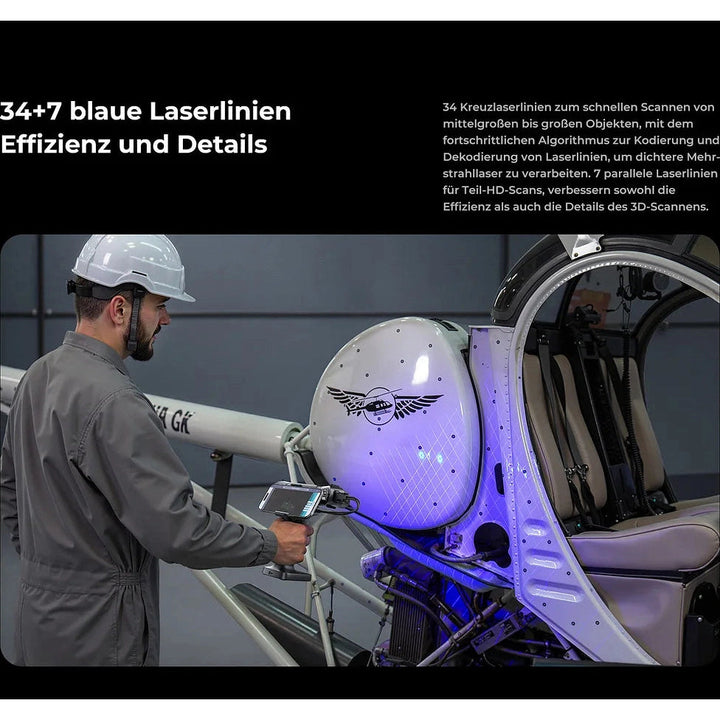

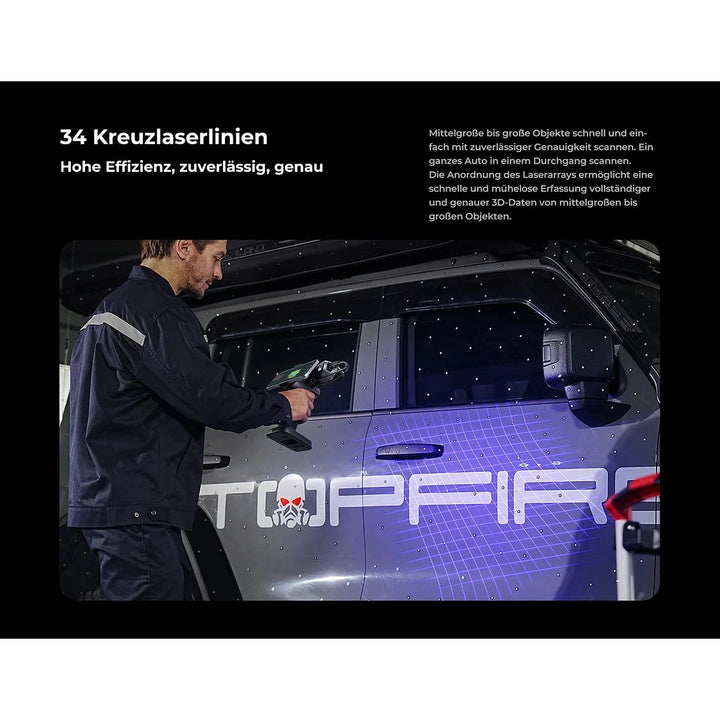

  • 34 crossed blue laser lines: Efficient data capture for medium to large objects to create precise 3D models.

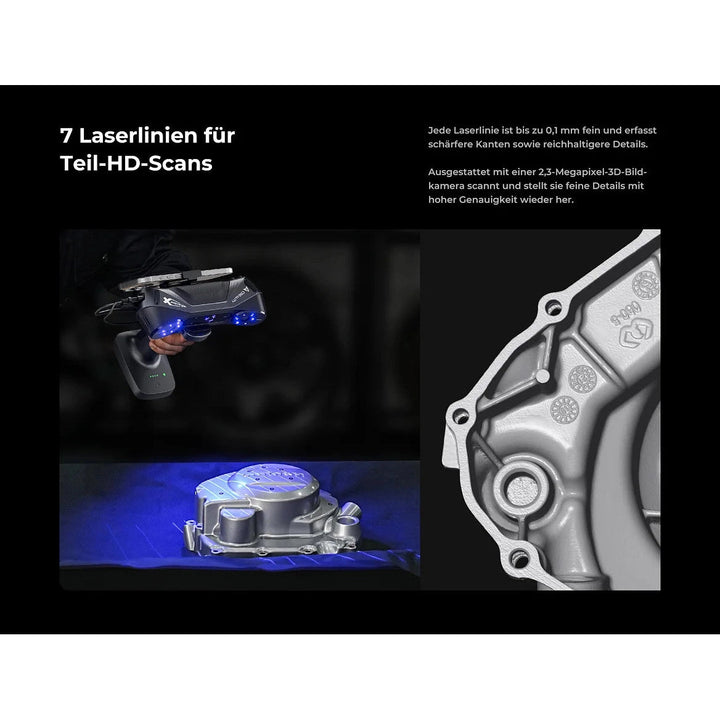

  • 7 parallel laser lines: Ideal for detailed scans with high resolution for finer structures.
  • NIR structured light: Enables markerless scanning and delivers excellent results even on challenging surfaces like black or metallic objects.

• Capture Range and Scan Rate:

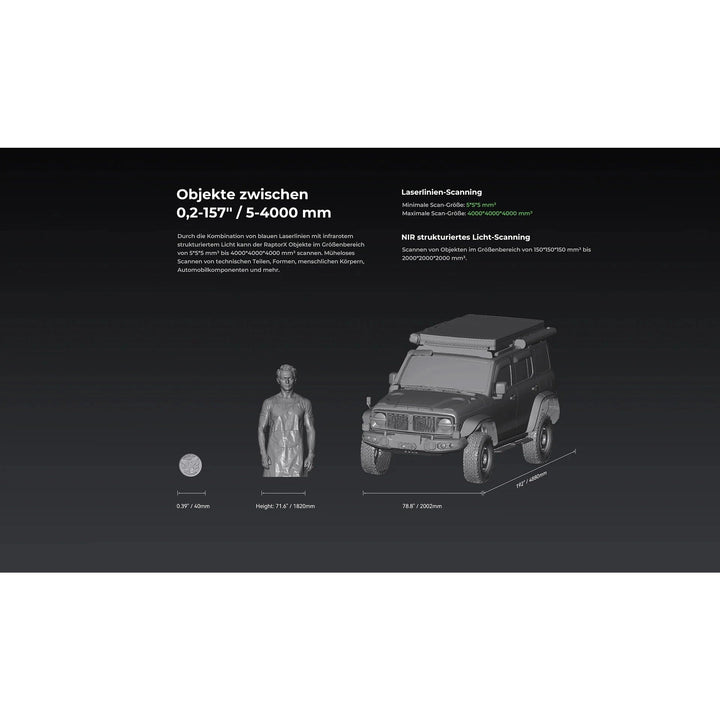

  • Scans objects from 5 mm to 4 meters in size.
  • Fast data capture with up to 3,580,000 measurements per second in structured NIR mode and 1,020,000 measurements per second in laser mode.

• Innovative Features:

  • Face and Body Algorithm: Captures detailed human bodies and hair – ideal for precise body and portrait scans in just 2 minutes.

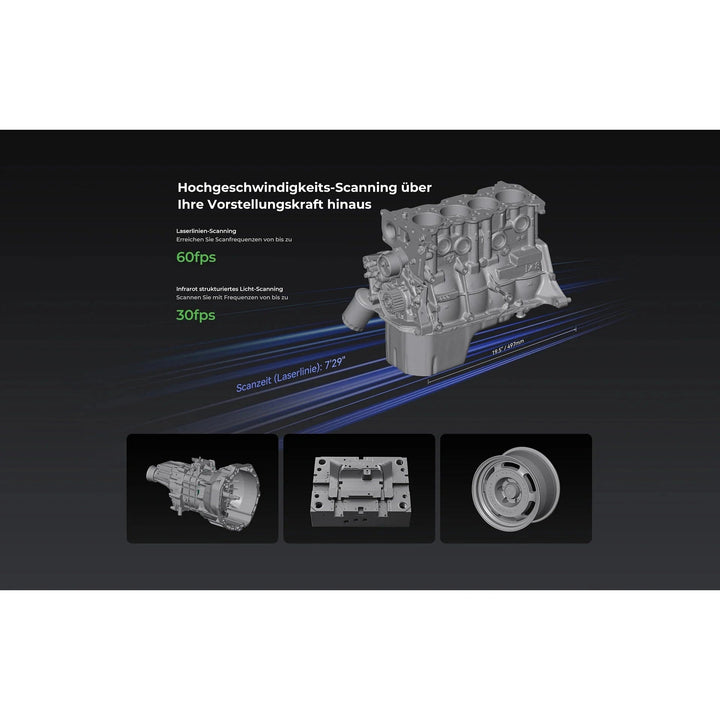

  • High-Speed Mode: Laser scanning up to 60 FPS and NIR light scanning up to 30 FPS.

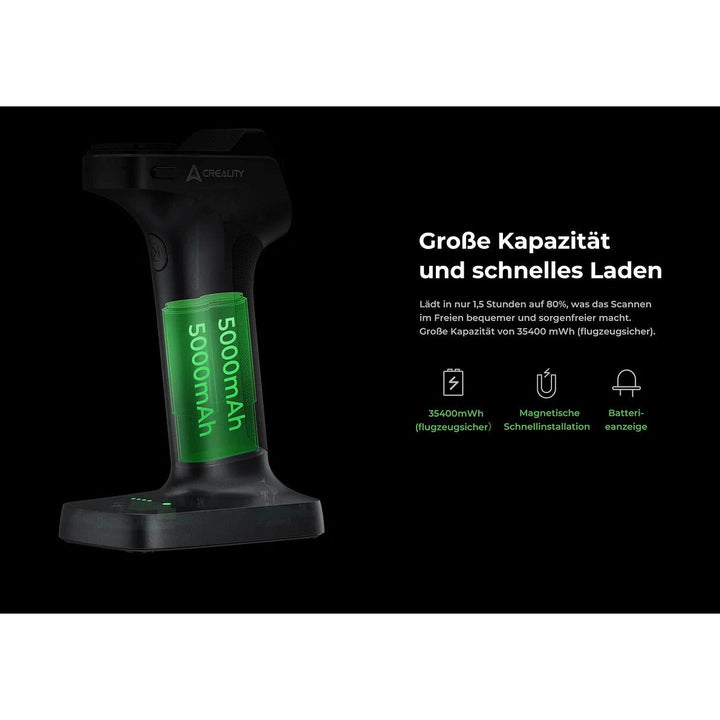

  • Long-lasting Battery: Fast charging time of only 1.5 hours to 80%, with a large capacity of 35,400 mWh.

• Outdoor and Wireless Scan:

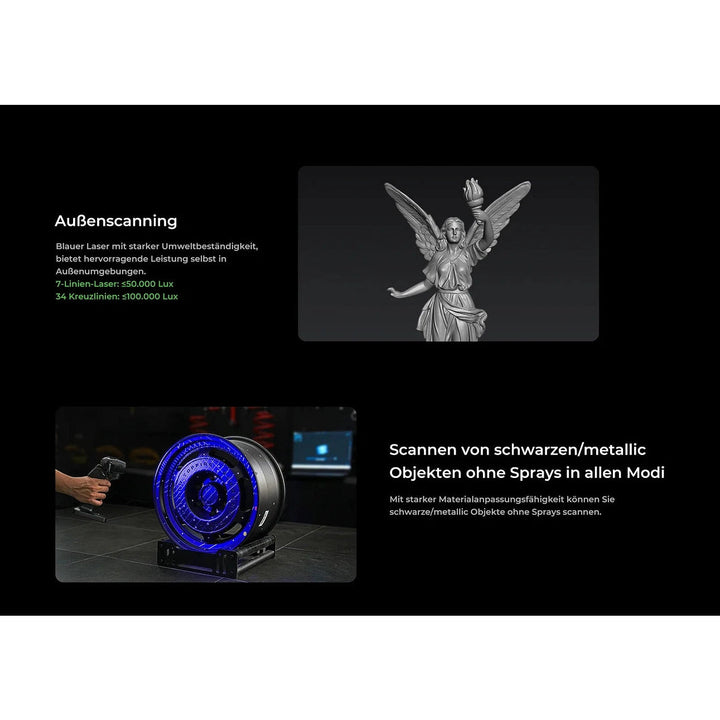

  • Supports outdoor shooting at up to 100,000 Lux and wireless data transmission via WiFi 6 (up to 4.7 Gbps).

Ergonomic Design & User-Friendly Software

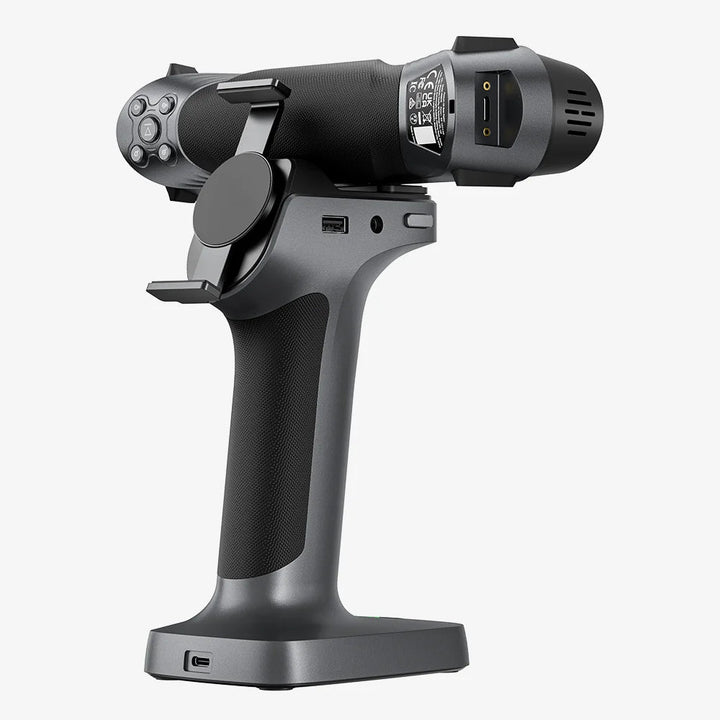

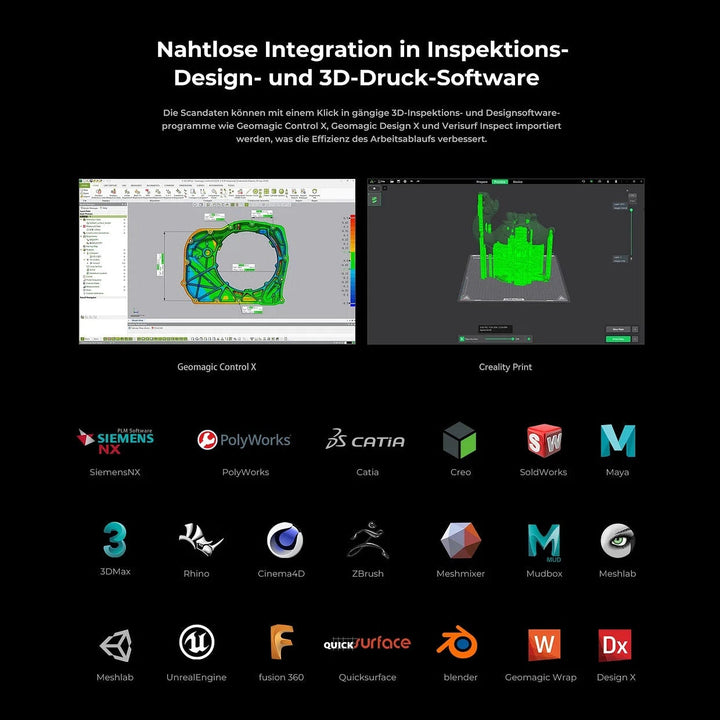

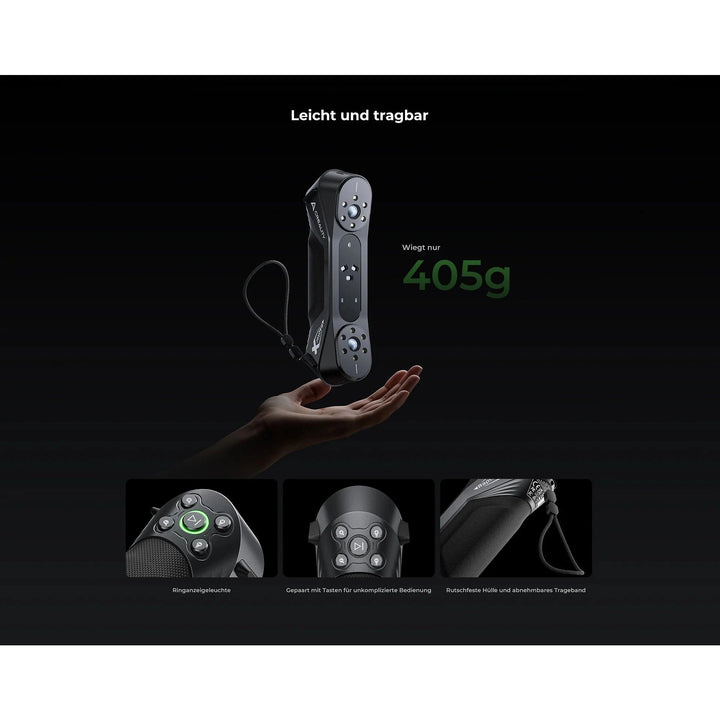

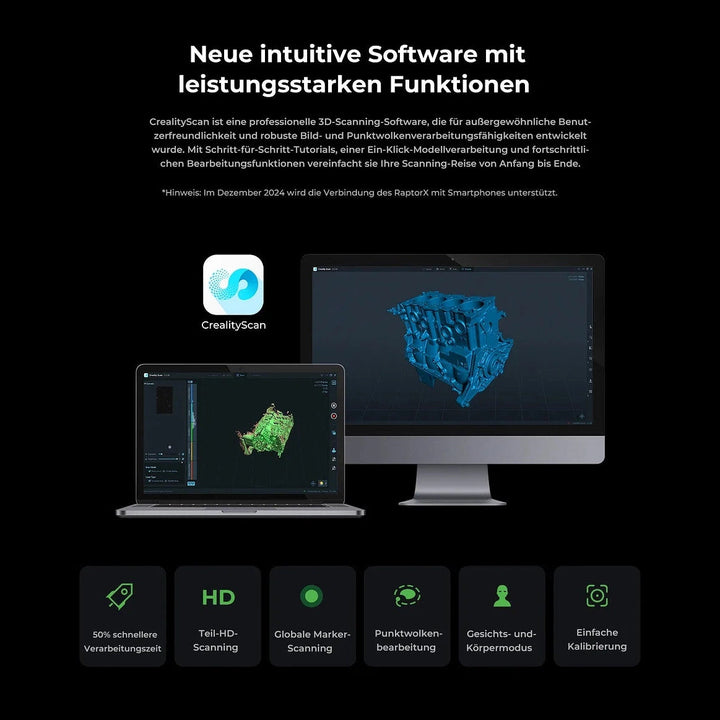

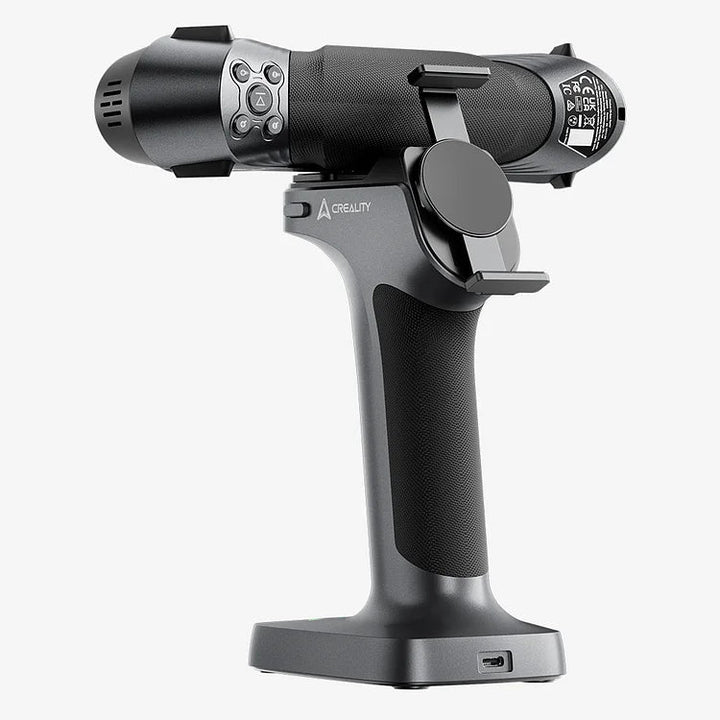

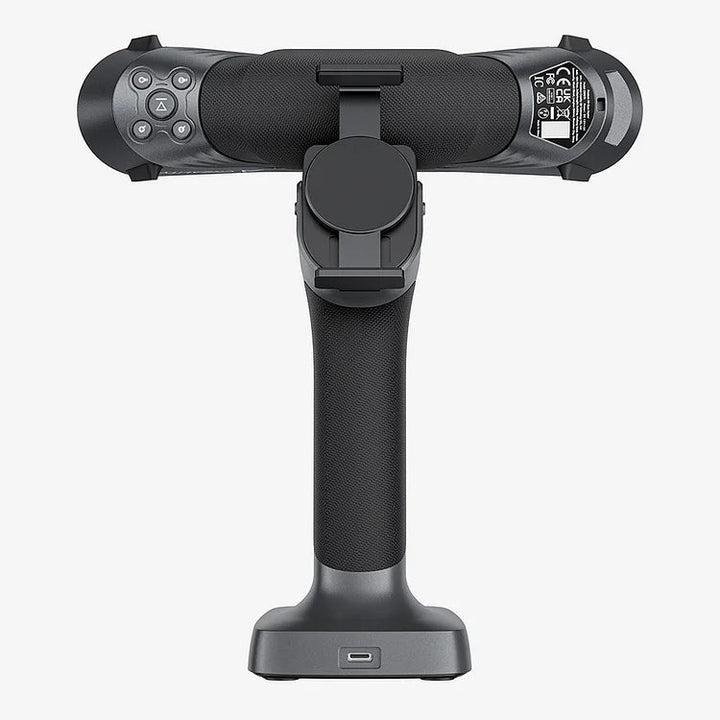

Weighing only 405 g, the RaptorX is lightweight and easy to handle. The integrated CrealityScan software offers intuitive features such as HD scan modes, point cloud editing, and automated calibration. Additionally, the RaptorX is compatible with common CAD and 3D design programs and supports USB-C and WiFi 6 for fast data transfer.

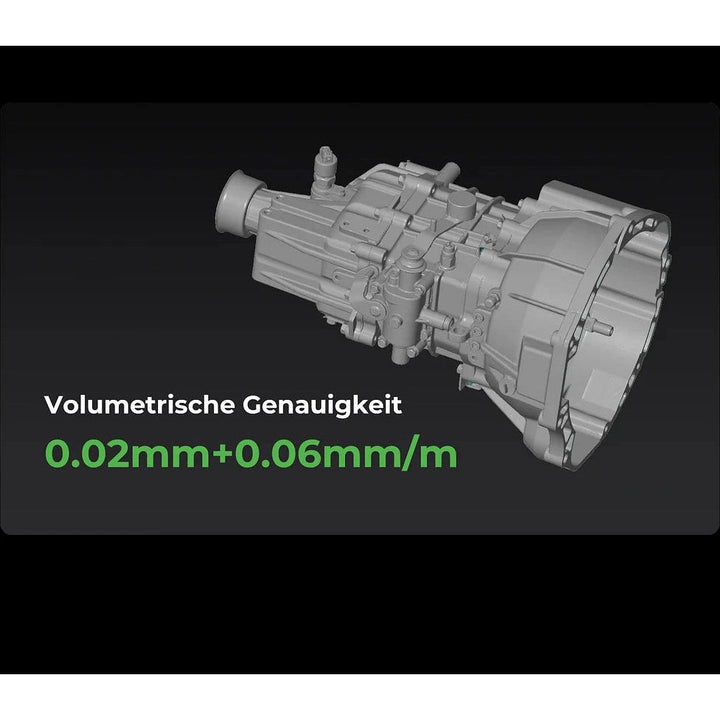

Technical Specifications Feature Details Laser Sources 34 crossed & 7 parallel blue laser lines Structured Light Near-infrared (NIR) Scan Rate Up to 3,580,000 measurements/s Accuracy Up to 0.02 mm (Laser) / 0.05 mm (NIR) Working Range 5 mm³ to 4000 mm³ Maximum Scan Area Up to 665 x 574 mm @ 1,000 mm Scan Distance 170–1000 mm depending on mode Battery Capacity 35,400 mWh Charging Time 1.5 hours to 80% Compatible Software Geomagic, Verisurf, CrealityScan Data Transmission USB-C, WiFi 6 Weight 405 g

The Creality RaptorX offers a combination of high precision, user-friendliness, and versatile features, making it a top-tier 3D scanner for both hobbyists and professionals alike. Ideal for anyone needing detailed scans – from technical parts to human figures.
