Raise3D takes the next step in the world of professional resin 3D printing with the new models DF2 and DF2+. Both systems combine high precision, automated workflows, and industrial reliability – ideal for engineering prototyping, small series production, and functional end parts.
While the DF2 already sets standards in Digital Light Printing (DLP), the new DF2+ offers more power, faster print times, and expanded material compatibility.
Why DLP 3D Printing with Raise3D?
The DLP process (Digital Light Processing) works with a precise projection unit that cures the entire layer image in a single light pulse. This ensures:
-
extremely fine details and smooth surfaces
-
consistent dimensional accuracy across many prints
-
shorter print times compared to classic LCD systems
Especially in product development, dental or jewelry fields, and in industrial small series production, this combination of speed, quality, and reproducibility is crucial.
The Highlights of the Raise3D DF Series
1. Industrial Precision
Both systems use a 2560 × 1440 pixel DLP engine and achieve layer heights of 50 to 200 µm. This allows even complex geometries and finest contours to be realized easily – without visible layer steps.
2. Fully Automated Resin Management
An integrated system handles resin supply, level control, and material confirmation. This minimizes user errors and ensures consistent printing conditions – a real advantage for reproducible series production.
3. Intelligent RFID Platform
Each build platform is equipped with an RFID chip that automatically recognizes the material used and stores the appropriate printing, washing, and curing parameters. This saves time and ensures seamless traceability in the production process.
4. Ready-to-Print Software Ecosystem
With ideaMaker, a powerful software is available that offers Auto-Support, Anti-Aliasing, Hollow Structures, Contour Compensation, and many other professional features. Through RaiseCloud (integrated in DF2+), print processes can even be fully monitored and managed in the future.
Raise3D DF2 vs DF2+: Technical Comparison
| Feature | Raise3D DF2 | Raise3D DF2+ |
|---|---|---|
| Printing technology | Digital Light Printing (DLP) | Digital Light Printing (DLP) |
| Build Volume (W × D × H) | 200 × 112 × 300 mm | 200 × 112 × 300 mm |
| Resolution (XY) | 2560 × 1440 px | 2560 × 1440 px |
| Max. print speed | 80 mm/h | 100 mm/h |
| General Print Speed | 50–60 mm/h | 60–80 mm/h |
| Layer Height | 50–200 µm | 50–200 µm |
| Resin Management | Automatic (feed + level + detection) | Automatic (feed + level + detection) |
| RFID platform | Integrated | Integrated |
| Chamber heating | Up to 40 °C | Up to 40 °C |
| Material compatibility | Raise3D Resins + Loctite 3D IND405, PRO410, etc. | Extended OMP list: including Loctite 3D IND147, RG9400 FR, Pro 9499 – ideal for high-performance applications |
| Software | ideaMaker | ideaMaker + RaiseCloud |
| Network & connections | Wi-Fi, LAN, USB, live camera | Wi-Fi, LAN, USB, live camera |
| Dimensions (W × D × H) | 450 × 408 × 730 mm | 450 × 408 × 730 mm |
| Weight (net) | 40 kg | 40 kg |
Conclusion of the comparison:
Both models share the same basic architecture – but the Raise3D DF2+ offers more performance, speed, and compatible high-performance resins. It is clearly aimed at users focusing on series production or functional end parts.
Material variety and Open Material Program
Raise3D relies on an Open Material Program (OMP) that allows the use of certified industrial resins. In addition to Raise3D's own resins, numerous materials from leading manufacturers are usable – including Loctite, BASF Ultracur3D, and other high-performance resins with special properties:
-
Heat resistant for functional components
-
ESD-capable for electronic applications
-
Transparent or flexible for design and prototyping applications
-
Flame retardant (FR) for aerospace and automotive sectors
This openness makes the DF series a professional platform for a wide range of requirements – from precision mechanics prototypes to series-capable production solutions.
Higher speed, less effort
With a maximum print speed of up to 100 mm/h, the DF2+ achieves a significant increase compared to the DF2. Together with the automated resin management, this greatly reduces operator effort and shortens production time per part.
In practice, this means:
-
Shorter waiting times between design and finished model
-
Higher productivity for prototypes or small series
-
Predictable production processes, especially in industrial environments
Perfect workflow from printing to post-processing
Raise3D offers a coordinated workflow system for both models consisting of Printer, Wash & Cure Station and Waste Management Container. This creates a seamless process – from the first print to the finished part:
-
Printing on the DF2 or DF2+
-
Washing in the DF Wash station
-
Curing in the DF Cure unit
-
Disposal of residues via the waste container
The result: clean, efficient, and safe processes – a key factor for professional environments with multiple users or strict quality standards.
Typical areas of application
-
Engineering & product development: functional prototypes with high dimensional accuracy
-
Dental technology: precise models, crowns, splints, or molding tools
-
Jewelry design: smooth, detailed shapes without post-polishing
-
Automotive: small series parts and fixtures made from technical resins
-
Education & research: material and geometry experiments with open resins
The combination of precision, speed, and workflow reliability makes the DF series a true all-round solution.
DF2 or DF2+ – which version is the right one?

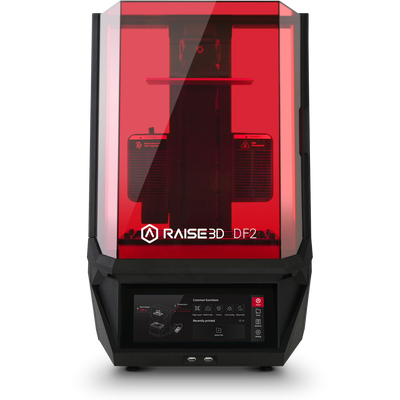

Raise3D DF2:
Ideal for users who need highest detail fidelity and reliable prototyping results – such as design studios, research institutes, or engineering departments.

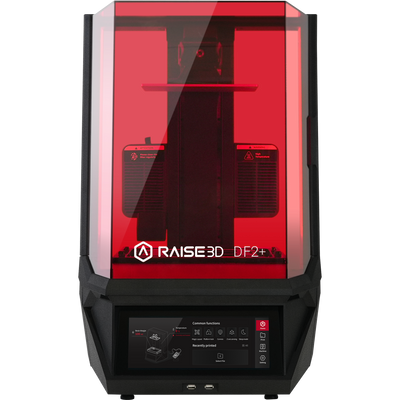

Raise3D DF2+:
Recommended for professional users focusing on small series, production, and demanding resins. Thanks to higher speed, a broader material portfolio, and extended workflow integration, the DF2+ is the new flagship in the Raise3D resin segment.
Conclusion
With the Raise3D DF2 series, Raise3D presents a well-thought-out, industrial-grade DLP system that takes precision, automation, and material variety to a new level.
The DF2 impresses as a reliable solution for detailed prototypes, while the DF2+ bridges the gap to scalable production. Both systems stand for high repeatability, ease of use, and reproducible quality – crucial factors for modern manufacturing environments.
Those looking for a future-proof resin 3D printing system that combines workflow automation and performance will find the perfect choice in the Raise3D DF2 series.
