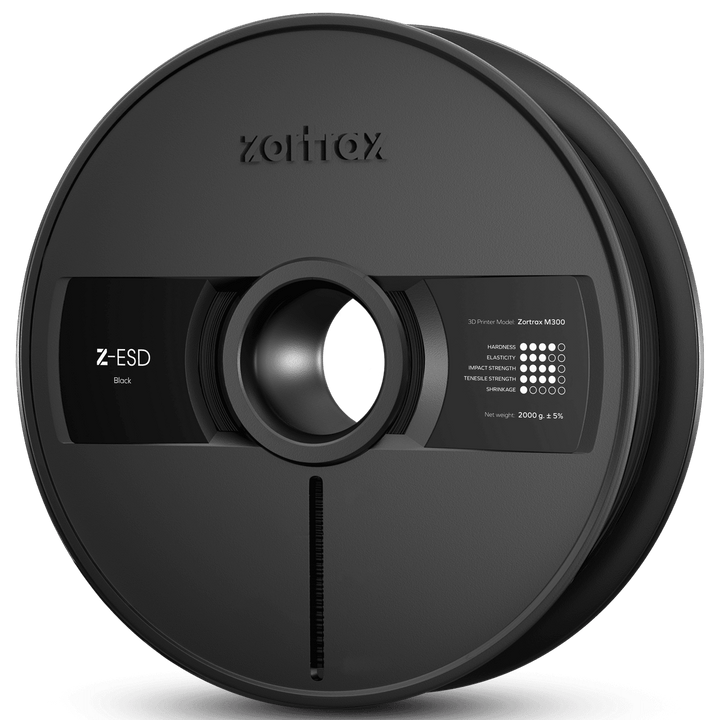

Zortrax Z-ESD filament for M300 - 1.75mm - 2 kg

Zortrax Z-ESD Filament for M300 – Industrial ESD Protection Material for Precise and Durable 3D Printed Parts

The Zortrax Z-ESD filament was specially developed to protect sensitive electronic components from electrostatic discharges (ESD). It not only offers excellent protection against ESD but also outstanding chemical resistance and low shrinkage. This makes Z-ESD ideal for industrial use where precise and durable parts are required.

Features of Zortrax Z-ESD:

• Electrostatic Protection: Z-ESD provides complete protection against electrostatic discharges with a volume resistance of 10⁴ to 10⁹ ohms. This makes it the ideal choice for electronics applications to prevent failures and damage to components.
• Low Shrinkage: Thanks to minimal shrinkage during printing, even large models remain dimensionally stable and accurate, which is especially advantageous for prototypes and end-use parts.
• Excellent Chemical Resistance: Z-ESD is resistant to most acids, salts, and alkalis commonly used in industry. This allows use in demanding environments without deformation or damage to the parts.

Applications:

• Industrial Parts and Tools: Ideal for producing robust parts used in harsh industrial conditions.
• End-Use Parts: Precise 3D prints for functional applications requiring high chemical resistance and ESD protection.
• Housings for Electronic Devices: Protection of sensitive electronic components from electrostatic discharges.
• Parts with Chemical Resistance: 3D printing of components used in environments with strong chemicals.

Technical Specifications:

• Material: ESD
• Diameter: 1.75 mm
• Tolerance: 0.05 mm
• Weight: 2.0 kg
• Length: 647 m
• Specific Gravity: 1.285 g/cm³ (ISO 1183-3:2003)
• Specific Volume Resistance: 10⁶ - 10⁹ ohm/m² (IEC 60093)

Mechanical Properties:

• Tensile Strength: 32.88 MPa (ISO 527:1998)
• Elongation at Break: 4.46 % (ISO 527:1998)
• Flexural Strength: 47.7 MPa (ISO 178:2011)
• Flexural Modulus: 1500 MPa (ISO 178:2011)
• Impact Strength: 4.92 KJ/m² (ISO 180:2004)
• Shore Hardness: 69.2 D (ISO 868:1998)

Printing Parameters:

• Maximum Printing Temperature: 270°C
• Maximum Bed Temperature: 60°C

With Zortrax Z-ESD you print precise, durable, and chemical-resistant parts with excellent ESD protection. This filament is the ideal choice for industrial applications requiring dimensionally accurate and robust components that provide both ESD protection and chemical resistance.
