TwoTrees TTC450 – 500W Spindle Motor Kit

TwoTrees TTC450 – 500 W Spindle Motor Kit

Powerful upgrade for your CNC: The 500 W spindle motor operates up to 12,000 RPM, runs quietly, and dissipates heat efficiently. Thanks to Smart Termination, the spindle automatically stops after the job ends. Ideal for precise engraving and milling work in metal and non-metal.

Highlights

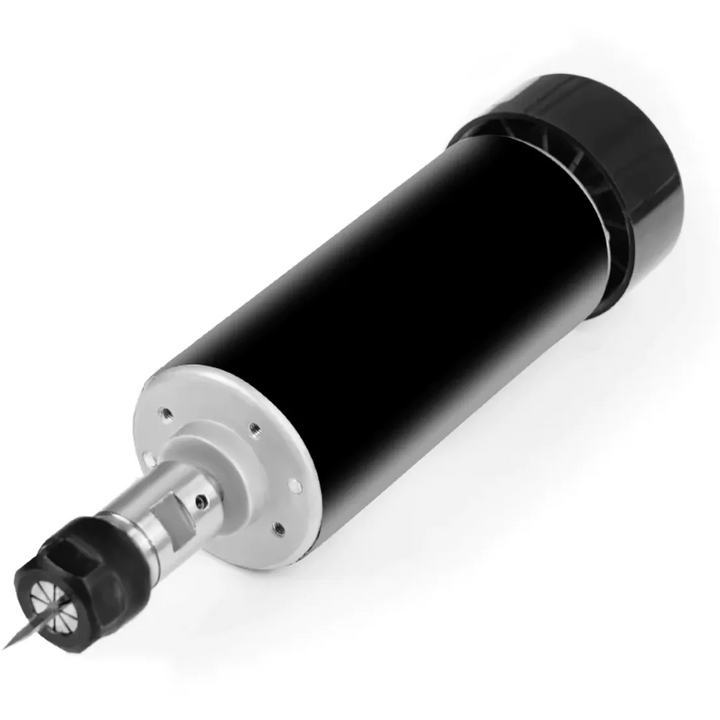

• 500 W spindle with up to 12,000 RPM
• Smart Termination: automatic shutdown after job completion
• ER11 collet included – wide selection of cutters/bits usable
• Quiet operation & fast heat dissipation for long jobs
• Suitable for metal and non-metal processing
• Runout accuracy: approx. 0.01–0.033 mm
• Compatible: TwoTrees TTC450

Technical Data

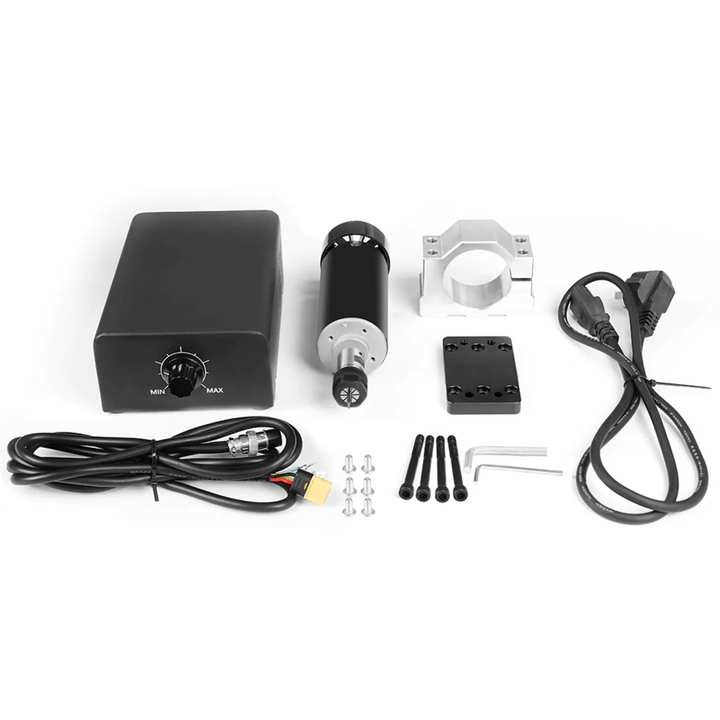

Scope of Delivery

• 500 W spindle motor (pre-assembled)
• ER11 collet
• Connector/adapter depending on kit version

Assembly & Notes

• Quick assembly: Click-&-install design, ready to use in a few steps.
• Check compatibility: Only for TTC450. Match mount/holder and cable connection beforehand.
• Tool clamping: Choose ER11 appropriately and clamp securely; observe maximum tool speed.
• Safety: Switch off power before work; safety glasses/extraction recommended for metal and wood chips.

Applications

• Fine engraving and milling in aluminum, copper (adjusted feeds)
• Plastics, wood, carbon/fiber composites (use suitable tools)
• Prototyping, signs, front panels, PCB isolation milling

Note: For optimal results, select cutting data (speed, feed, depth of cut) depending on material and tool. After the job, the spindle stops automatically (Smart Termination), enhancing user comfort and safety.
