TOOCAA L2 Desktop Laser Engraver & Cutter
🕵️♂️
Experten-Check & Highlights
- 10 W Laserleistung für saubere Schnitte und Gravuren
- Schneidet Materialstärken bis 0,18 mm in einem Durchgang
- Feine Gravuren mit Präzision bis 400 mm
Jetzt auch Rechnungskauf für Firmen über Billie verfügbar
SKU: P0967S | EAN: 9339402993445
TOOCAA L2 Laser Engraver & Cutter
Powerful desktop laser cutter for creative projects, professional applications, and precise engraving work
Product highlights
-
Available with 10 W, 20 W, or 40 W diode laser
-
Work area: 415 × 395 mm – suitable for medium to large workpieces
-

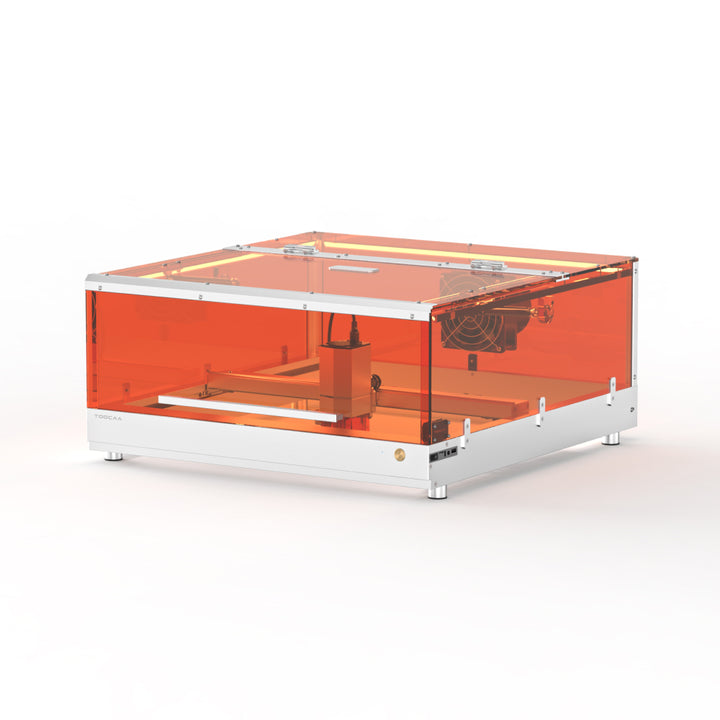

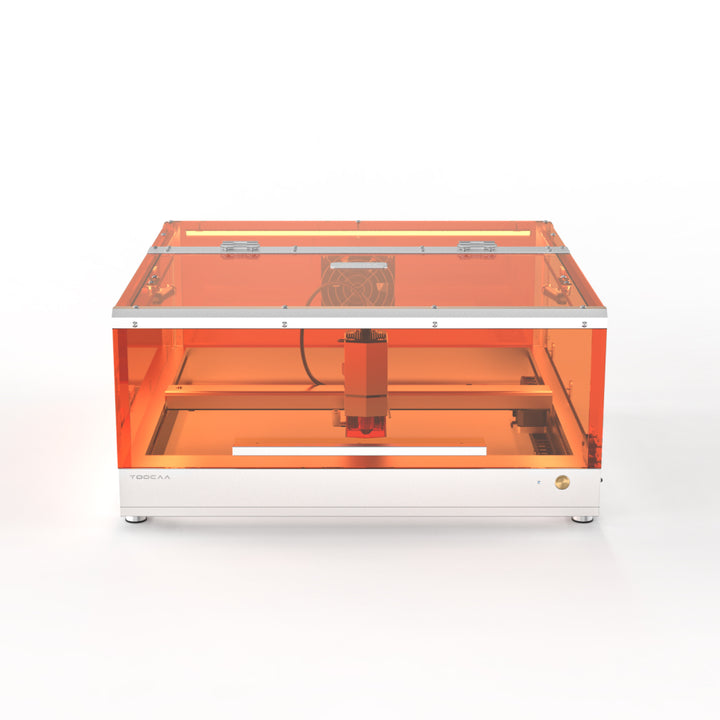

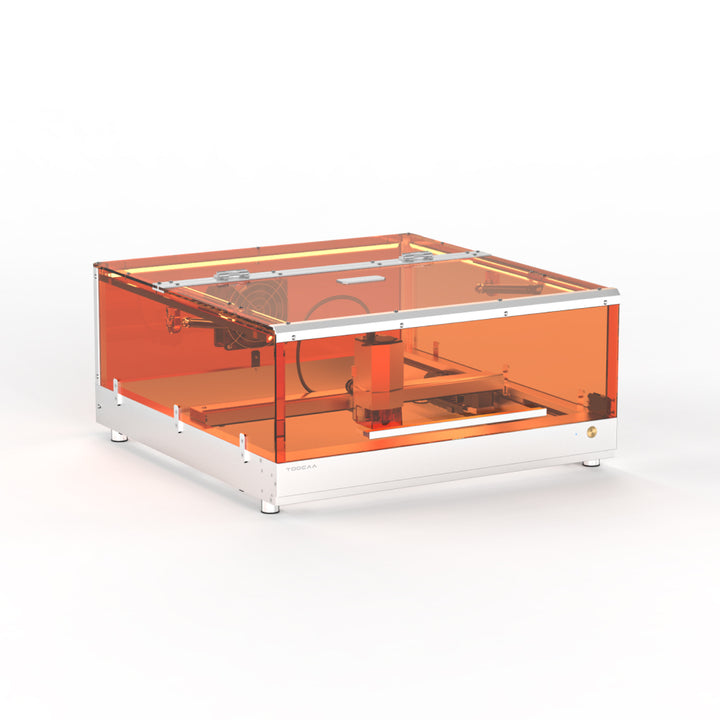

Enclosed housing with automatic shutdown when opened
-
High precision: engraving speed up to 400 mm/s, positioning accuracy 0.01 mm
-

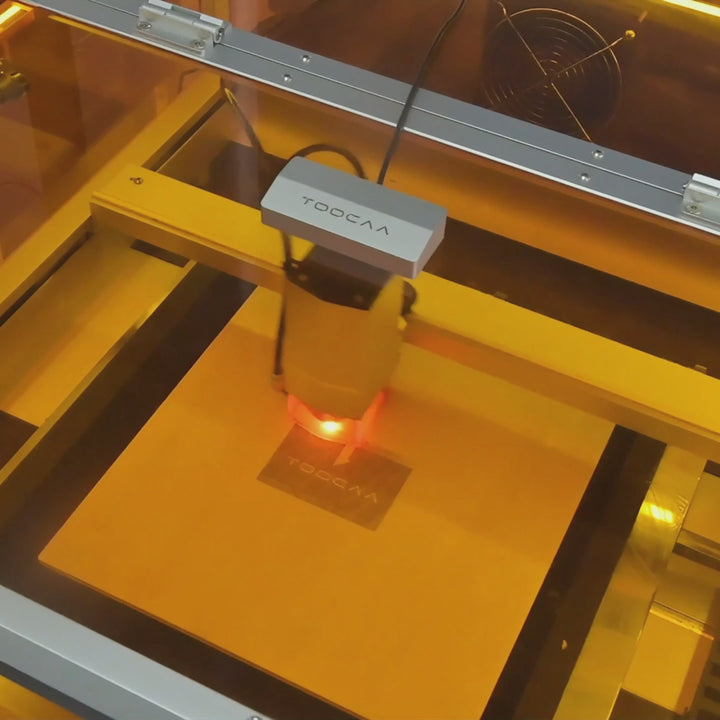

Tool-free laser module change
-
Compatible with LightBurn, LaserGRBL, and TOOCAA Studio
-
Expandable with accessories such as Air Assist, smoke extraction, camera, or rotary module
-
Comprehensive safety features: flame sensor, tilt protection, emergency stop, USB key
Overview of available laser powers
| Laser power | Spot size | Maximum cutting thickness (Basswood) |
|---|---|---|
| 10 W | 0,08 × 0,18 mm | up to 6 mm |
| 20 W | 0,15 × 0,27 mm | up to 10 mm |
| 40 W | 0,15 × 0,27 mm | up to 15 mm |
Technical specifications
| Feature | Specification |
|---|---|
| Work area | 415 × 395 mm |
| Device dimensions | 645 × 617 × 306 mm |
| Weight | approx. 17 kg (net), 19 kg (gross) |
| Voltage range | 100–240 V, 50–60 Hz |
| Control/Software | LightBurn, LaserGRBL, TOOCAA Studio |
| Connections | USB-C, microSD |
| security class | Laser class 1 |
| Housing material | Acrylic and aluminum |
| Lighting | LED interior lighting and RGB ambient lights |
Safety features
-
Fully enclosed design to reduce laser light and smoke generation
-

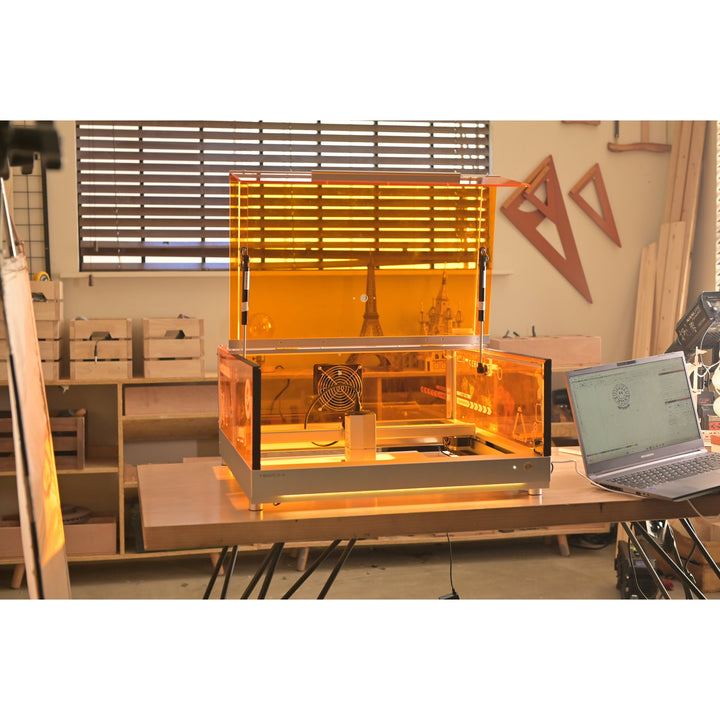

Automatic shutdown when opening the cover
-
Integrated flame sensor and tilt protection with emergency shutdown
-
Emergency stop button and USB security key for access control

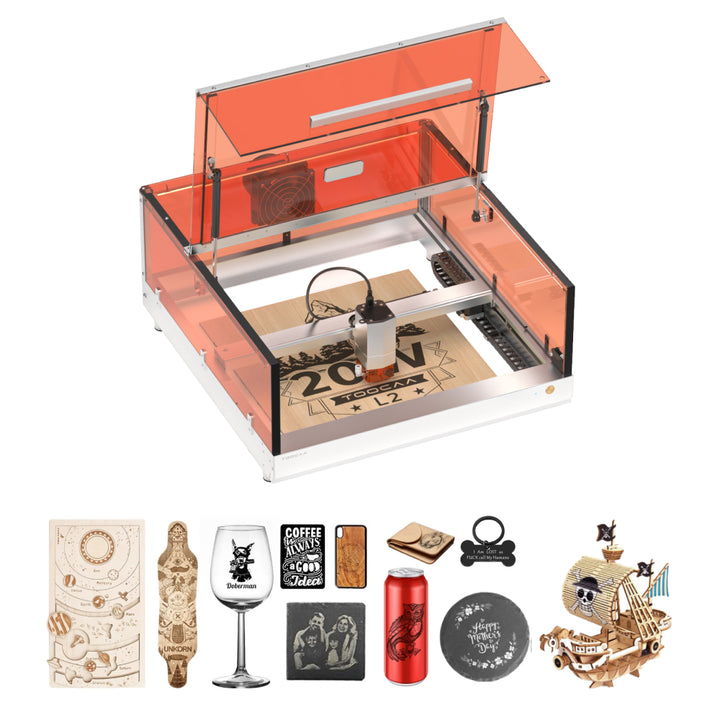

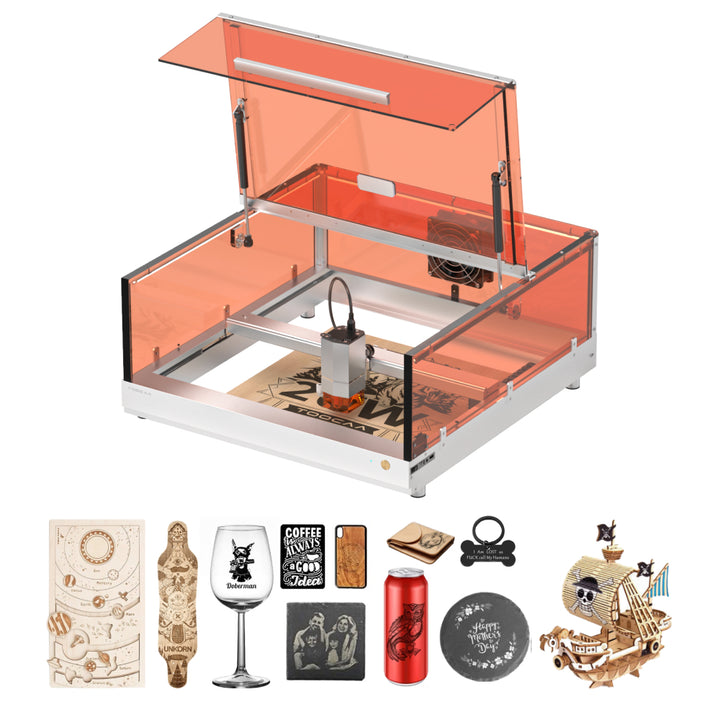

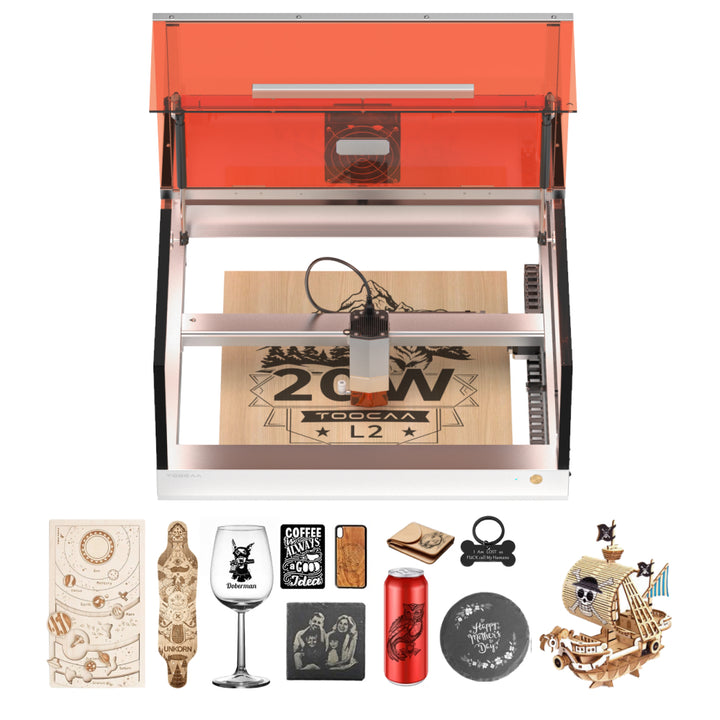

Supported materials
| Material | Engraving | Cutting |
|---|---|---|
| Wood | Yes | Yes |
| Acrylic (not transparent) | Yes | Yes |
| Leather, textiles | Yes | Yes |
| Cardboard, paper | Yes | Yes |
| Stainless steel (coated) | Yes | No |
| Aluminum (anodized) | Yes | No |
| Ceramic, glass, stone | Yes | No |
Operation & software
-
Supports Windows and macOS
-
Compatible with LightBurn (professional software) and LaserGRBL (free)
-
Offline operation via SD card possible
-
Optional: integration of a camera for position detection
Scope of delivery (depending on package)
-
TOOCAA L2 with selected laser module (10 W / 20 W / 40 W)
-
Accessory set including focus aid, tool, USB stick
-
User manual and software link
-
Optional available: Air Assist, camera, rotary module, filter unit
Target groups
-
Creative users, makers, and hobbyists
-
Small businesses and start-ups in product personalization
-
Schools and educational institutions focused on digital manufacturing
-
Model making, architecture, product design
