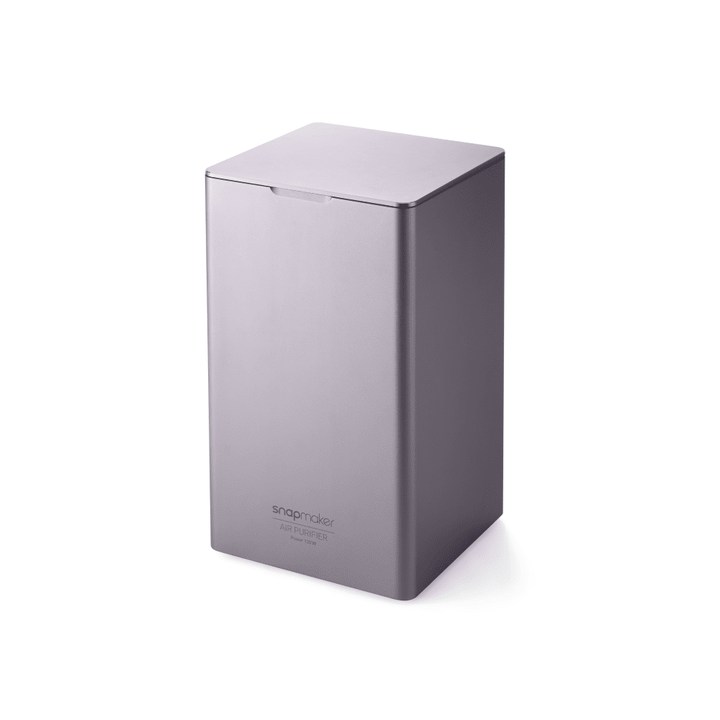

Snapmaker Air Purifier

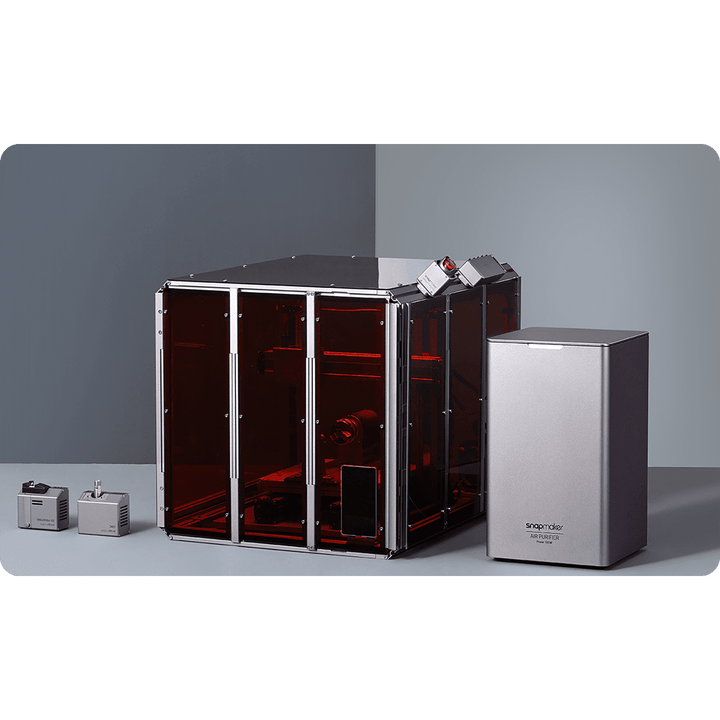

The Snapmaker Air Purifier was developed to ensure air quality in your work environment during 3D printing and laser engraving, effectively filtering out harmful particles and volatile organic compounds (VOCs). With a high filtration efficiency of 95.9% for particles from a size of 0.3 µm and VOC absorption, the air purifier offers an effective solution to reduce potential health risks. The device is specially tailored for use with the models Snapmaker 2.0, Artisan, and Snapmaker Ray and can only be used together with a compatible enclosure.

Main features:

• High filtration performance: Filters 95.9% of particles (PM0.3) and VOCs.

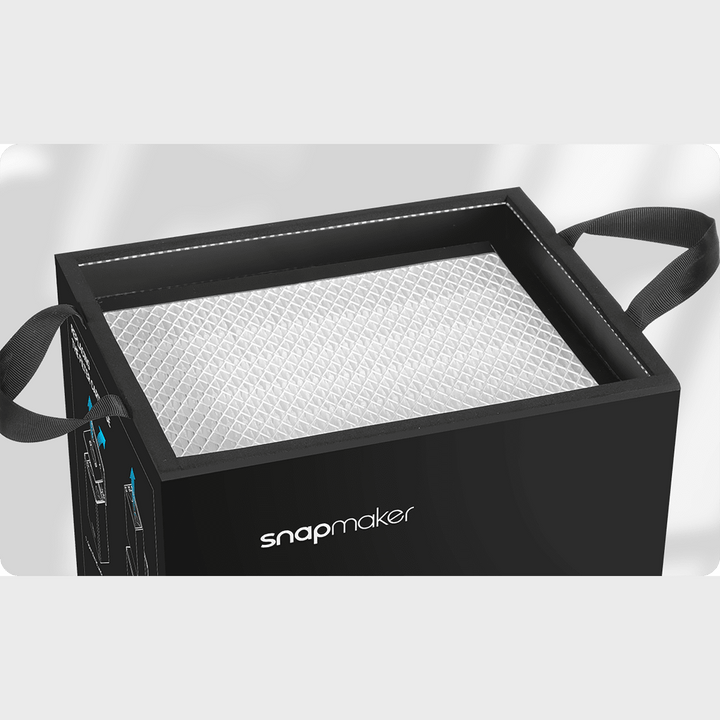

• Custom filter cartridge: Five different filter layers, including a G4 filter for larger particles, an F9 filter for finer particles, and an H13 HEPA filter for ultrafine particles.

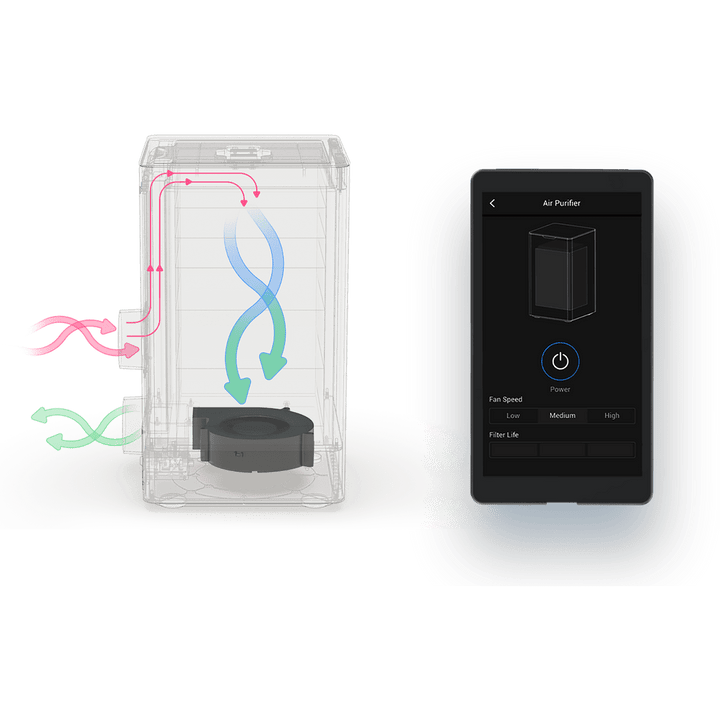

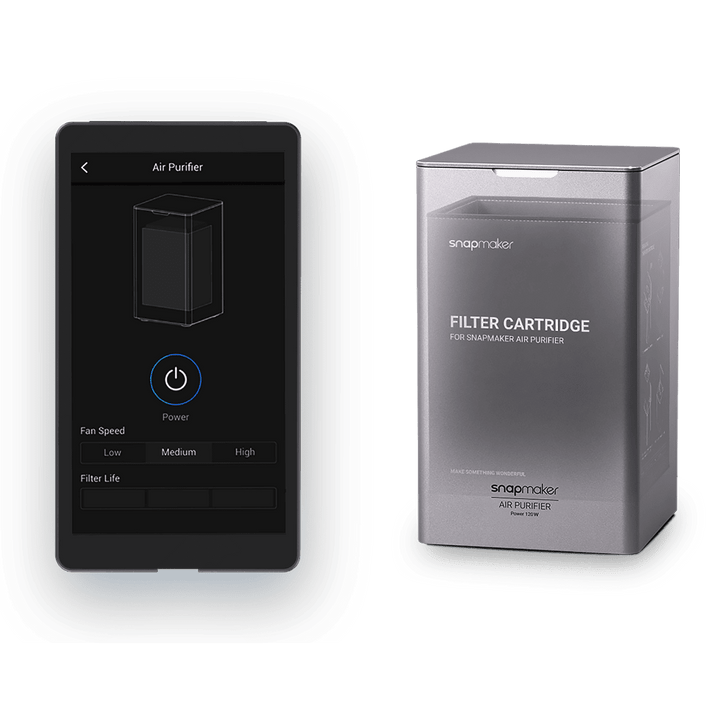

• Real-time monitoring: The filter lifecycle is continuously monitored and displayed on the Snapmaker touchscreen.
• Comfortable control: Touchscreen operation to adjust the fan speed.

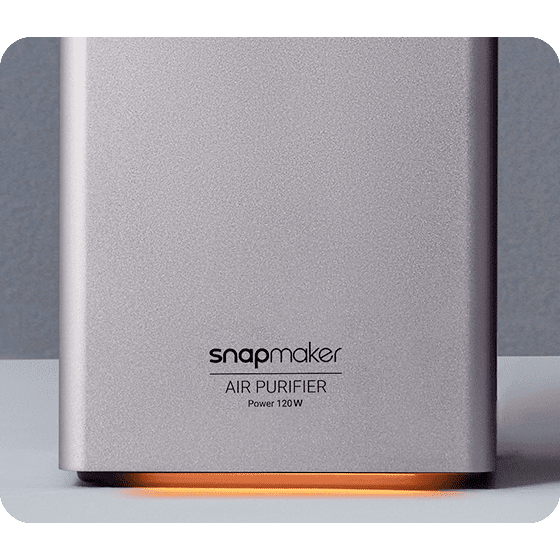

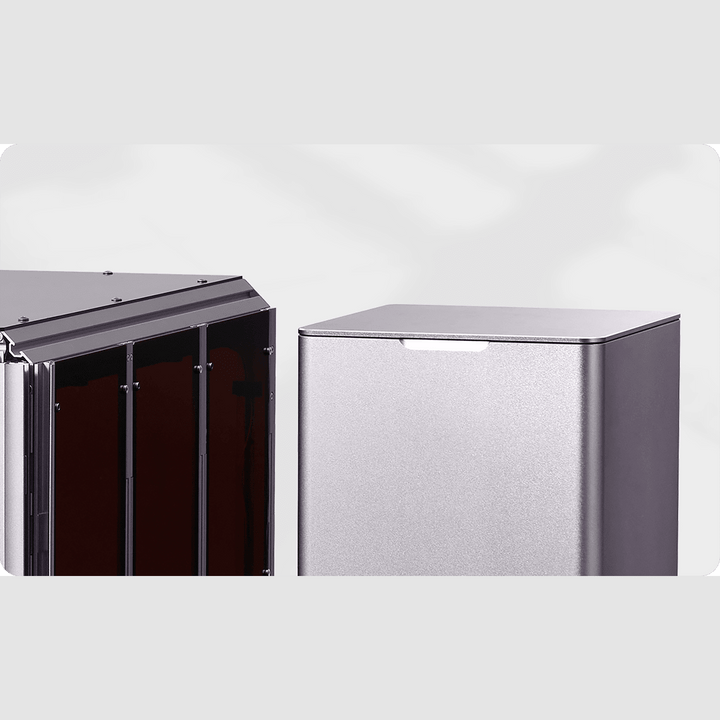

• All-metal design: Robust and durable design made of CNC-milled aluminum.

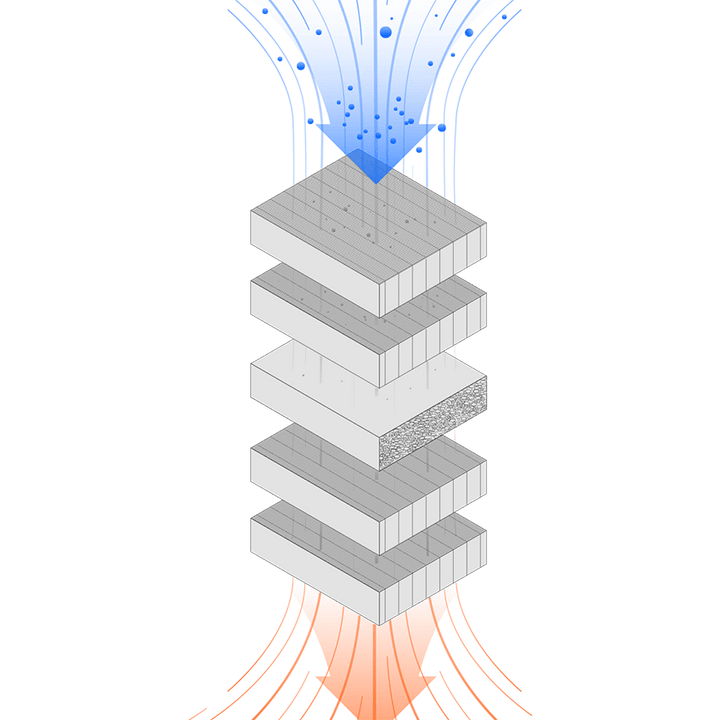

Functionality of the filter cartridge:

1. G4 filter: For larger particles from 5 µm (PM10, PM5).
2. F9 filter: For finer particles from 1 µm, filters up to 95% of PM10, PM5, and PM2.5 particles.
3. Activated carbon filter: Absorbs VOCs and reduces unpleasant odors.
4. H13 HEPA filter: Captures up to 99.97% of the smallest particles, including PM0.3.

Technical data: Property Details Product size (W×D×H) 240 × 271 × 420 mm Weight 8.8 kg Airflow 150 m³/h Hose diameter 70 mm Filtration rate (0.3-0.5 µm) 95.9% Noise level Max. 65 dB Voltage AC 100 V – 240 V Rated power 120 W Operating temperature 0°C–35°C Compatibility Snapmaker 2.0, Artisan, Ray Filter cartridge lifespan Approx. 3 months*

*The lifespan of the filter cartridge varies depending on frequency of use.

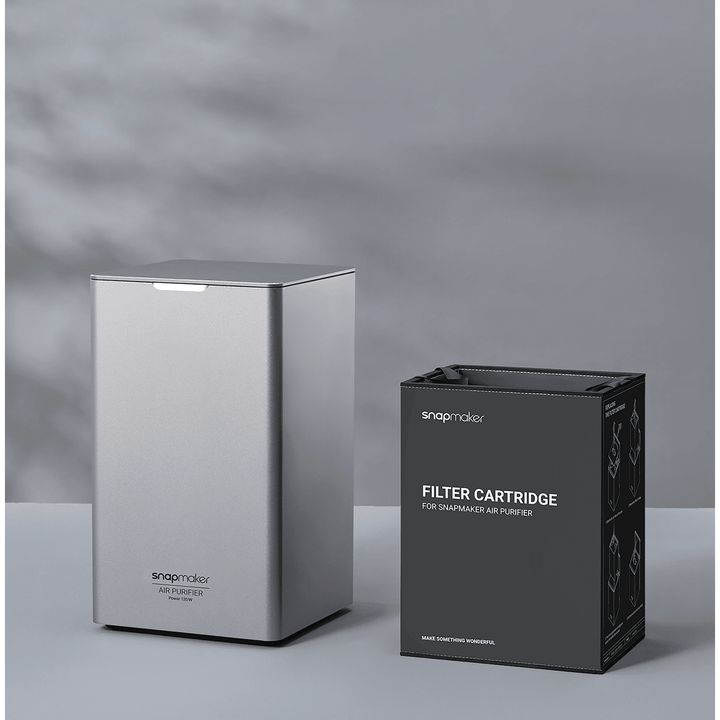

Scope of delivery:

• 1x Snapmaker Air Purifier
• 1x Filter cartridge

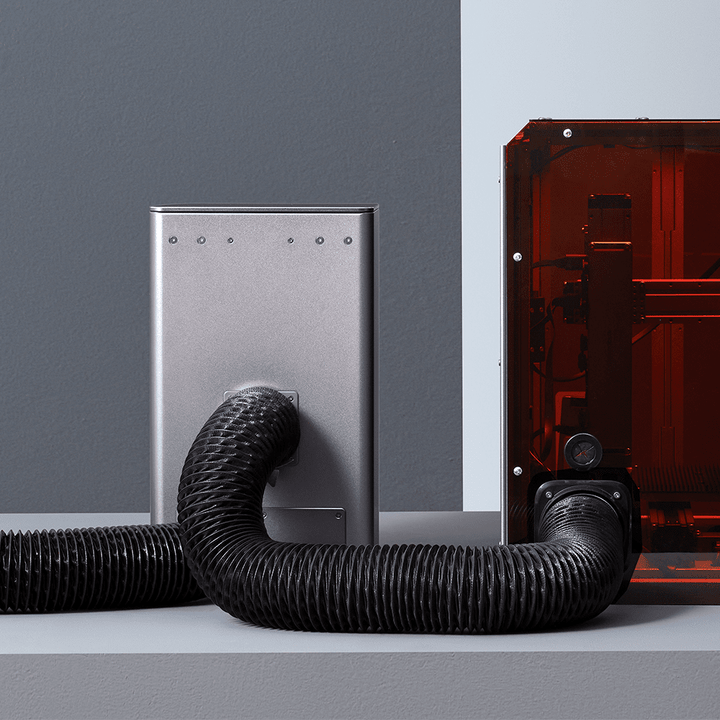

• 1x Hose (including hose clamps)
• 1x Power adapter and connection cable
• 1x Quick start guide

The Snapmaker Air Purifier not only offers improved air quality but also enables you to have a safe and clean working environment, especially for demanding laser and printing projects.
