Mosquito Magnum Hotend for High-Speed Printing

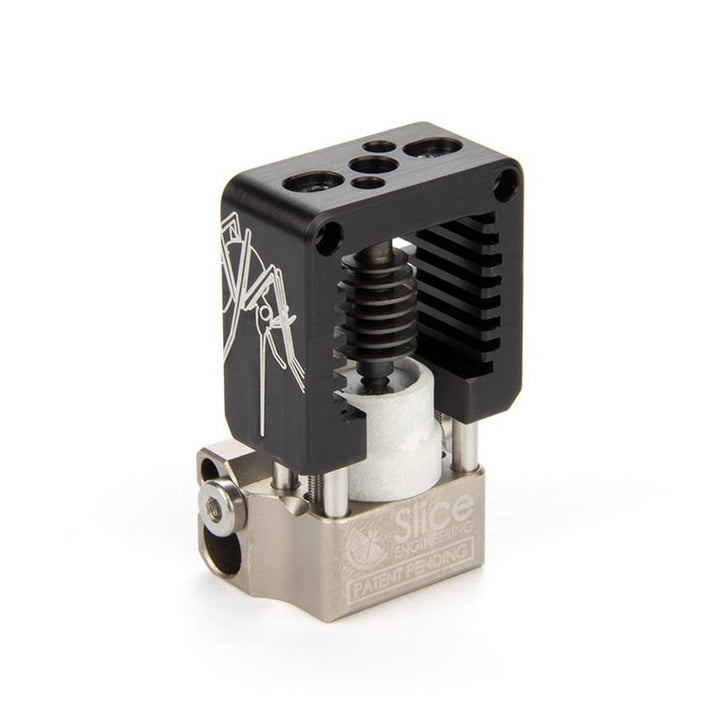

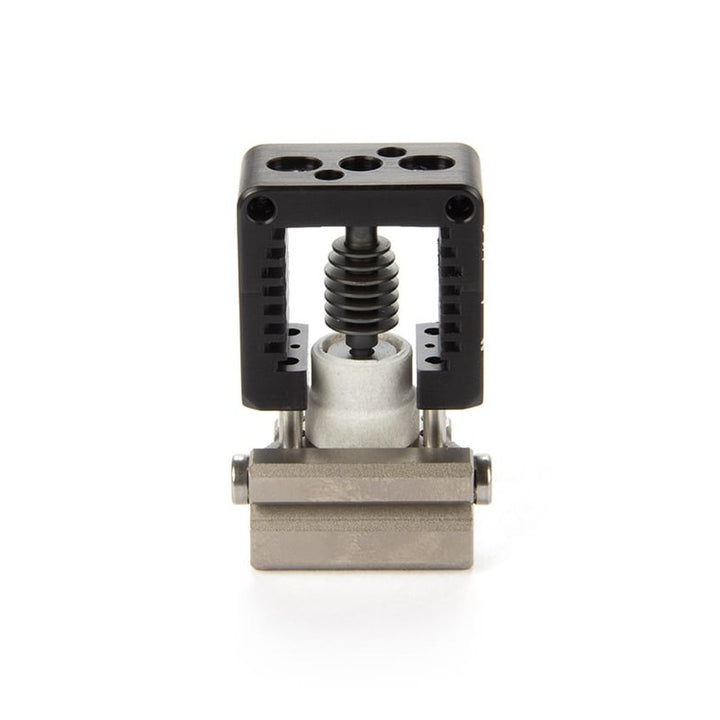

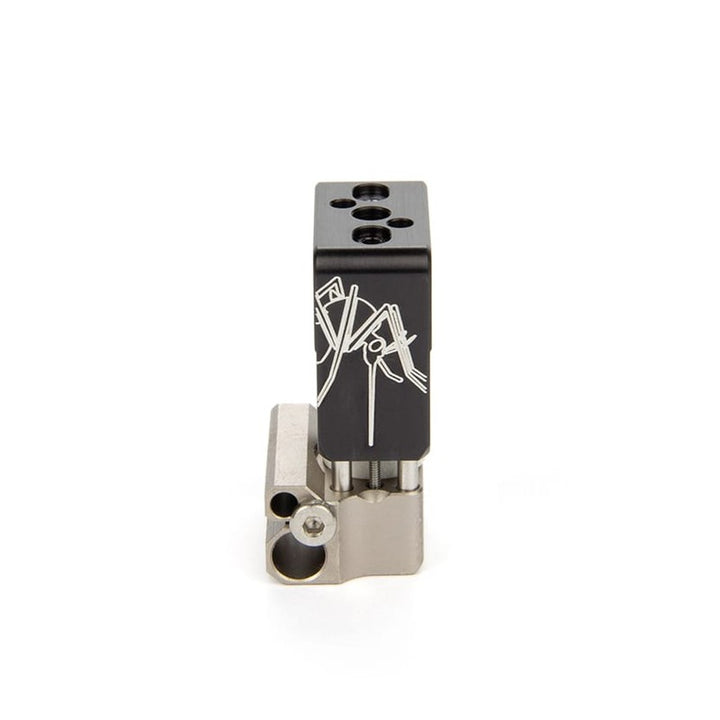

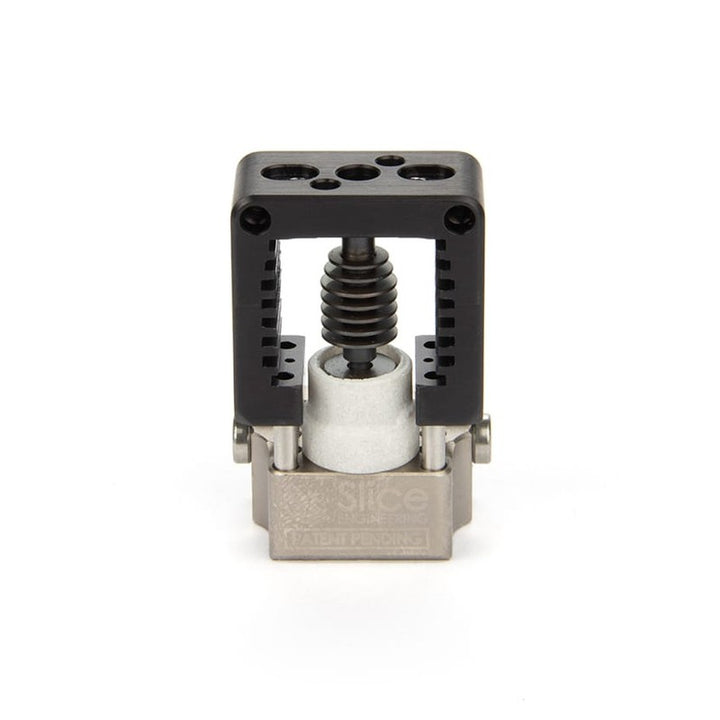

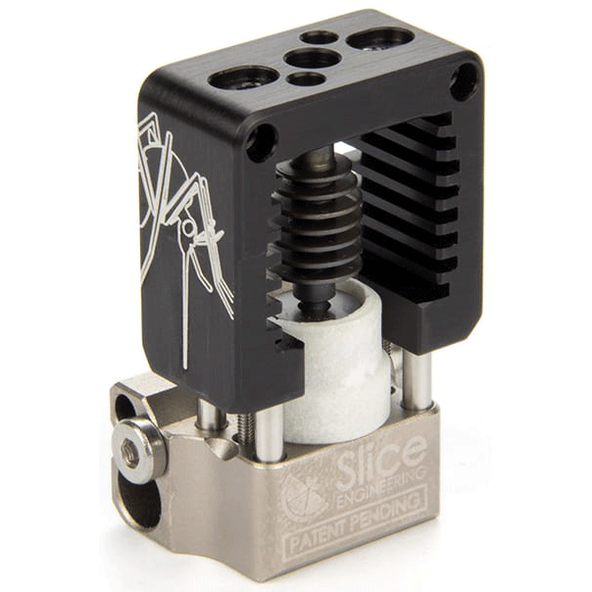

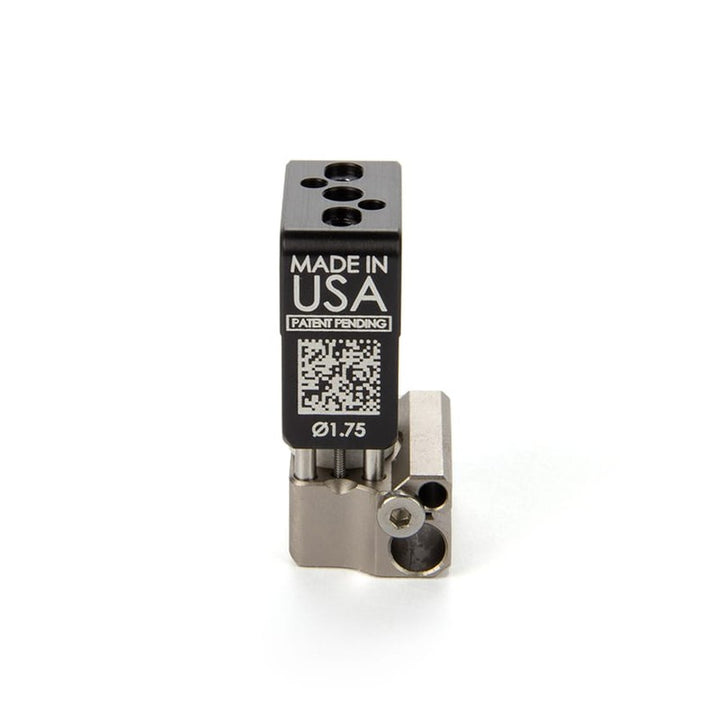

Slice Engineering Mosquito Magnum Hotend

About the revised version

The Slice Engineering Mosquito™ Magnum Hotend has been redesigned and now offers improved heat break and an optimized heat sink with innovative features. The new heat break has a reinforced neck and a redesigned radiator that prevents damage during installation or repair. It is also equipped with the same WS2 anti-stick coating used on our Vanadium™ nozzles to further enhance performance with PLA. The new heat sink has a wider opening for the filament path to better handle spliced filament from multi-material setups like the Prusa MMU or Mosaic Palette.

The old heat breaks and heat sinks are not compatible with the new ones. However, customers who want to upgrade can retrofit their Mosquito™ Hotend with the new features by purchasing both the heat sink and the heat break.

The versatility of the Mosquito

The Mosquito Hotend is adaptable to almost any printer. By replacing a single component, you benefit from the high-performance features of a printer that would cost thousands of euros. Since the Mosquito (for aesthetics) and the Mosquito Magnum (for speed) have the same length, these hotends can be easily mounted on the same carriage. This allows you to switch between high flow and high precision in the same print.

And yes, you can change the nozzle with one hand.

Ready to fully realize your vision?

Designed for speed and technical plastics

Anyone who says, "Sorry, I can't do a GoT marathon with you on Saturday, I'm doing a big print," obviously doesn't have the Mosquito Magnum Hotend, which completes projects 20% faster than other high-throughput hotends on the market. Your 3D printer can deliver high-resolution prints and process technical plastics that other desktop printers can't even come close to handling. With minimal layer lines, your vision quickly becomes reality.

The Mosquito Magnum Hotend offers the same precision as our Mosquito Hotend, but with a significantly faster flow rate.

Use engineering plastics up to 450 °C. This means you can print auto parts, medical devices, and anything else you can imagine without having to buy an expensive printer.

Reinterpretation of the hotend

We have completely rethought the design and structure of a hotend from the ground up. The materials in every part of the Mosquito Magnum were carefully selected to fulfill a specific task and optimize your printer's performance. We even used the same insulating materials NASA uses for their Space Shuttle to protect the hotend's extended melt zone.

Some might say it is over the top.

We say it is necessary to create something truly excellent.

And it gives you a great anecdote for the next 3D printing convention.

Additional details

• Superior heat break performance
  • The heat break conducts 85% less heat into the heat sink than a typical threadless heat break.
  • Steep temperature gradient at the heat break and high tolerances along the filament path allow better transmission of fine movements, resulting in beautiful, high-resolution prints.
  • The steep temperature gradient at the heat break reduces the likelihood of clogs.
  • Reduced heat transfer eliminates the need for a large heat sink.
  • The composite construction of the heat break enables the use of materials optimized for heat transfer in each section of the heat break.
  • Allows mounting the hotend with a printed plastic adapter without safety concerns.
• Increased structural stiffness
  • The heat break is separated from the structural components of the hotend, allowing for a non-load-bearing heat break that can be very thin-walled. This ensures a reliable, rigid outer structure.
  • No components at the mounting points are susceptible to loosening.
  • Nozzles can be changed with one hand without gripping the hot block.
  • In the event of a severe fall, a complete replacement of the hotend is not required; parts can be easily exchanged.
• Larger temperature operating range
  • Specially developed high-temperature copper alloy in
