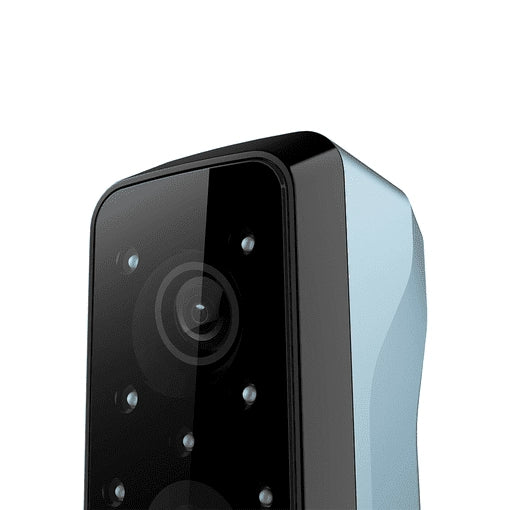

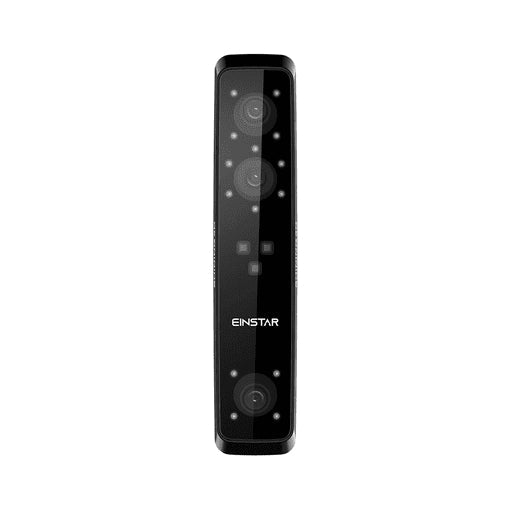

Shining 3D single star 3D scanner

The Shining 3D EinStar 3D Scanner is the ideal tool for anyone looking for an affordable yet powerful solution for scanning objects and people. Thanks to its easy handling and advanced IR technology, this scanner is especially suitable for beginners. The scanner combines precise measurement technology with user-friendly software, opening up a wide range of applications – from person scans to highly detailed object models.

Technological innovations of the Shining 3D EinStar 1. Infrared-based Structured Light Projection

The Shining 3D EinStar works with infrared structured light projection combined with two stereo depth cameras. This technology enables the capture of highly precise 3D information. The infrared technology not only ensures reliable data acquisition but is also eye-safe and allows comfortable scanning, even of people. An additional RGB camera ensures complete and authentic color capture of the object.

2. Special "Hair Mode" for more detail accuracy

Especially in person scans, the EinStar shows its strengths: The special hair mode increases the detail depth when capturing hair, which is traditionally difficult to scan. This makes the EinStar particularly attractive for use in the fashion industry, entertainment sector, or medical modeling.

3. High scanning accuracy and speed

With an impressive speed of up to 14 fps (frames per second), the Shining 3D EinStar captures objects not only precisely but also extremely quickly. The point resolution ranges from 0.1 to 3 mm and guarantees a detailed representation even of complex structures. The optimal working distance of 40 cm allows versatile use – from small objects to larger models.

4. Versatile application possibilities

Besides person scans and small objects, the EinStar can also be used for outdoor applications. Thanks to the IR technology, it is ensured that ambient light does not negatively affect the scans. Additionally, for uniform or structureless objects, targets (reference points) can be used to guarantee exact capture.

Easy operation: Plug and play for all users 1. Intuitive software with real-time feedback

The software of the Shining 3D EinStar is designed to make the scanning process as simple as possible. Scanned and unscanned areas are visualized in real time during scanning, providing high transparency and control. Additionally, the EinStar can automatically align partial scan areas with an intelligent algorithm, significantly reducing processing time.

2. Plug and play: quick start without complications

The EinStar requires only a cable connection to the computer and is ready to use immediately. This eliminates complicated installation processes or the need for multiple connections. This facilitates use both in stationary and mobile environments and makes the scanner the first choice for spontaneous projects and on-site scans.

3. Compact design and light weight

With a handy format and a weight that facilitates mobile use, the Shining 3D EinStar can be transported easily. Whether at events, in offices, or in outdoor use – the scanner is always a reliable companion.

Technical requirements and compatibility

To fully exploit the performance of the Shining 3D EinStar, the following minimum hardware requirements must be met:

• Processor: Intel Core i7-11800H or higher
• RAM: 32GB or more
• Graphics card: NVIDIA GTXL 1060 or higher
• VRAM: 6GB or more
• USB: 2.0 or higher
• Operating system: Windows 10/11 64-bit

These requirements ensure that the scanner operates smoothly and stably even when processing highly detailed scans.

Advantages of the Shining 3D EinStar

The EinStar offers a number of advantages that make it an outstanding product in the 3D scanning market:

• Easy operation: Thanks to intuitive software and plug and play design, the scanner is also suitable for beginners.
• Price-performance ratio: Despite its high-quality features, the EinStar remains affordable, offering an excellent entry into the world of 3D scanning.
• Authentic color capture: The RGB camera captures colors true to life and in detail.
• Eye safety: The infrared technology ensures that scans are safe even for people.
• Versatility: The scanner is suitable for both indoor and outdoor use and can easily work with a wide variety of objects.

Scope of delivery of the Shining 3D EinStar

The scope of delivery of the Shining 3D EinStar includes the following components:

• 1x SHINING EinStar 3D Scanner
• 1x Transport case
• 1x Power supply
• 1x Calibration plate
• 1x Hand strap

Important note: Accessories such as computers or 3D models shown in some images are not included in the scope of delivery.

Application examples and potential for various industries

The Shining 3D EinStar is versatile and suitable for various industries. Especially in medicine, the fashion industry, and archaeology, it can play a decisive role in capturing precise 3D data. Also in the field of industrial design and research, the EinStar is frequently used due to its easy handling and high detail accuracy.
