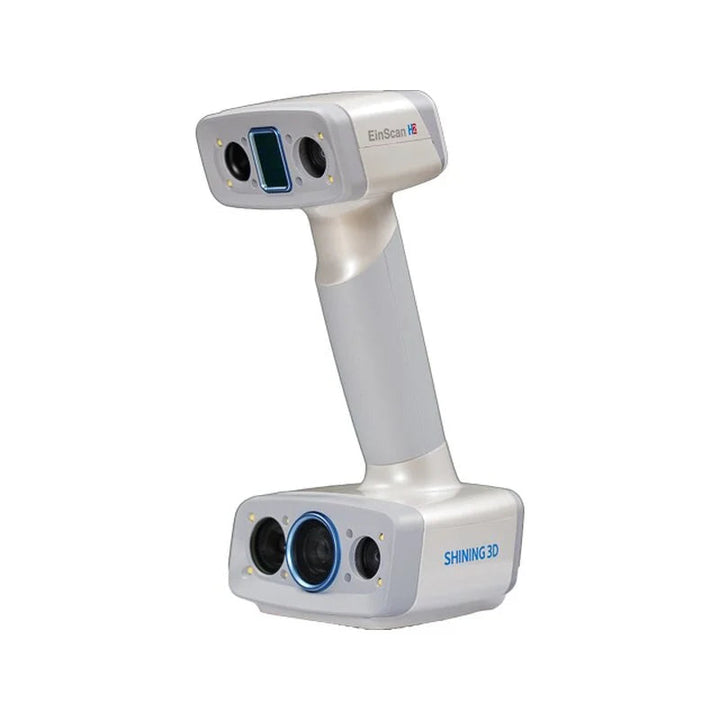

Shining 3D EinScan H2 3D Scanner

EinScan H2 Hybrid Hand Scanner – Flexible and Powerful 3D Scanning

Product Description:

The EinScan H2 is a versatile next-generation hybrid hand scanner designed for a wide range of applications. With its enhanced functionality and extended scanning range, it enables efficient 3D scanning both at close and longer distances. The user-friendly operation, ergonomic design, and powerful 5 MP texture camera make the EinScan H2 ideal for applications in automotive, mechanical engineering, medical, and art fields.

Key Features:

• Hybrid Scan Mode: Supports both white light and infrared VCSEL light for flexible scanning under various conditions.
• High Scan Accuracy: Up to 0.05 mm in white light mode and up to 0.1 mm in infrared mode.
• Extended Working Distance: Flexibly adjustable from 200 mm to 1,500 mm for objects of different sizes.
• 5 MP Texture Camera: Delivers vivid colors and clear textures for photorealistic 3D models.
• Versatile Alignment Modes: Supports marker alignment, feature, and texture alignment for precise results.
• Built-in Color Camera: For true-color texture scans of people and objects.

Technical Data: Property Details Scan Modes White light mode, Infrared mode Scan Accuracy Up to 0.05 mm (white light), up to 0.1 mm (infrared) Volumetric Accuracy 0.05 mm ± 0.1 mm/m Working Distance 200 mm – 1,500 mm Max. Field of View 780 mm x 900 mm Scan Speed 1,200,000 points/s Texture Resolution 5 MP Output Formats OBJ, STL, ASC, PLY, P3, 3MF Connection USB 3.0 Weight 731.1 g Dimensions 108 mm x 110 mm x 237 mm Certifications CE, FCC, ROHS, WEEE, KC Software EXScanH System Requirements Win10/11, 64 bit, NVIDIA RTX2060 or better, 64 GB RAM, Intel i7 or better Why choose the EinScan H2?

• Flexibility in Scanning Conditions: Captures objects both at close and long range, ideal for a variety of scanning scenarios.
• High Accuracy and Speed: Delivers precise scans at high speed, ideal for industrial applications and healthcare.
• User-Friendly: Easy to use thanks to ergonomic design and intuitive software, even for longer scanning sessions.
• Versatile Applications: Perfect for industries such as automotive, mechanical engineering, medical, art, and more.
