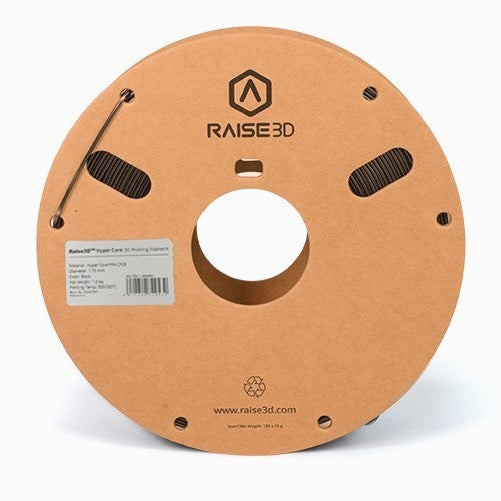

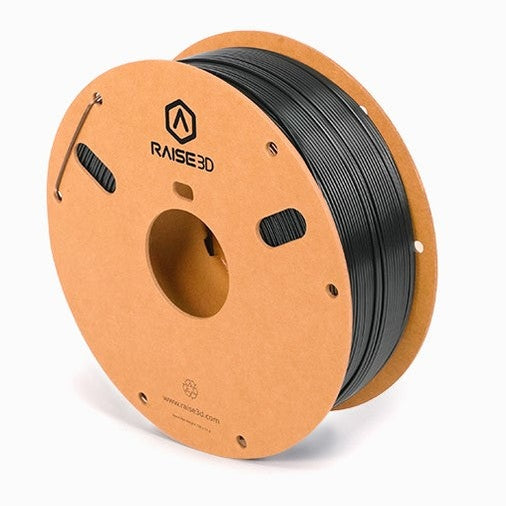

Raise3D Hyper Core PPA CF25 Filament 1.75 mm
SKU: P2900S | EAN: 6970240729532
High-performance composite material for end-use applications
The Raise3D Industrial PPA CF Filament is a carbon fiber reinforced composite material based on PPA (polyphthalamide or high-performance/high-temperature nylon). Thanks to its high-performance nylon matrix, this composite material offers superior mechanical and thermal properties compared to other nylon filaments. With well-controlled dispersion and length distribution of chopped carbon fibers (15 wt.%), the PPA CF features lower density, lower moisture absorption, high strength and stiffness, as well as excellent wear and creep resistance. It is promising for end-use applications in the automotive, aerospace, and electrical and electronics industries.
Applications
- Automotive
- Aerospace
- Electrical and electronics industry
- Industrial end parts
Advantages
- High strength
- Heat resistance
- High stiffness
Recommended print settings
- Nozzle temperature (°C): 290-310℃
- Print speed (mm/s): 30-120 mm/s
- Bed temperature (°C): 65-80℃
- Cooling fan: OFF
- Layer height (mm): 0.1-0.25 mm
- Drying temperature (°C): 80-100°C for 4 to 6 hours
