Raise3D DF2

Raise3D DF2 – Precision meets productivity

Designed for highest resolution. Built for industrial reliability.

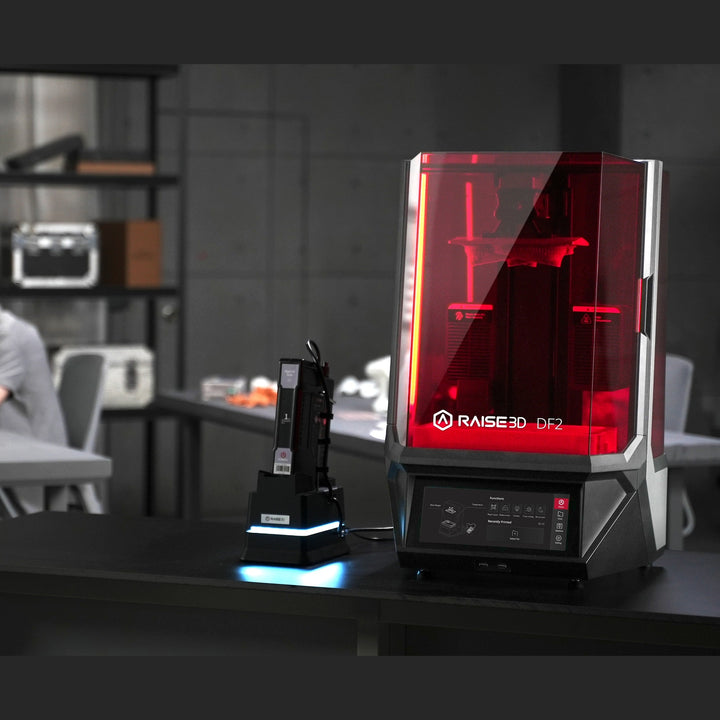

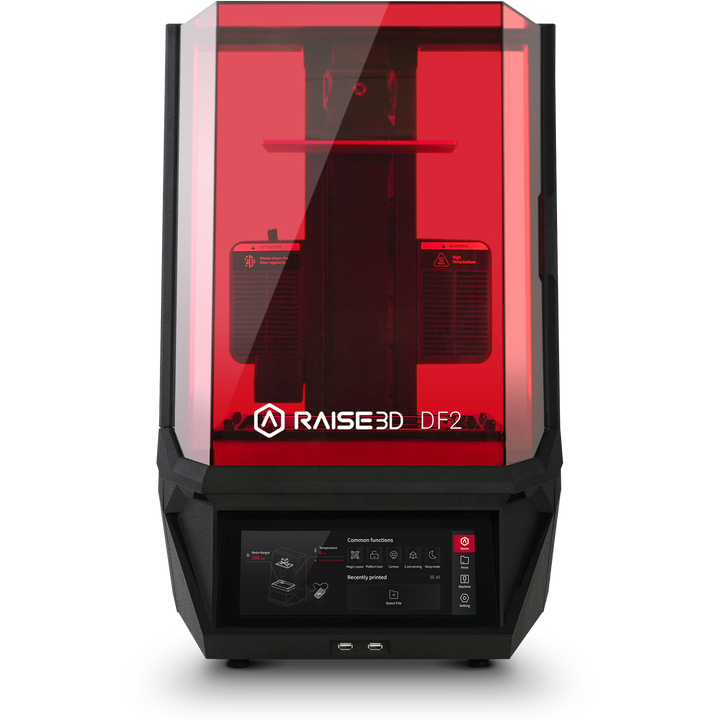

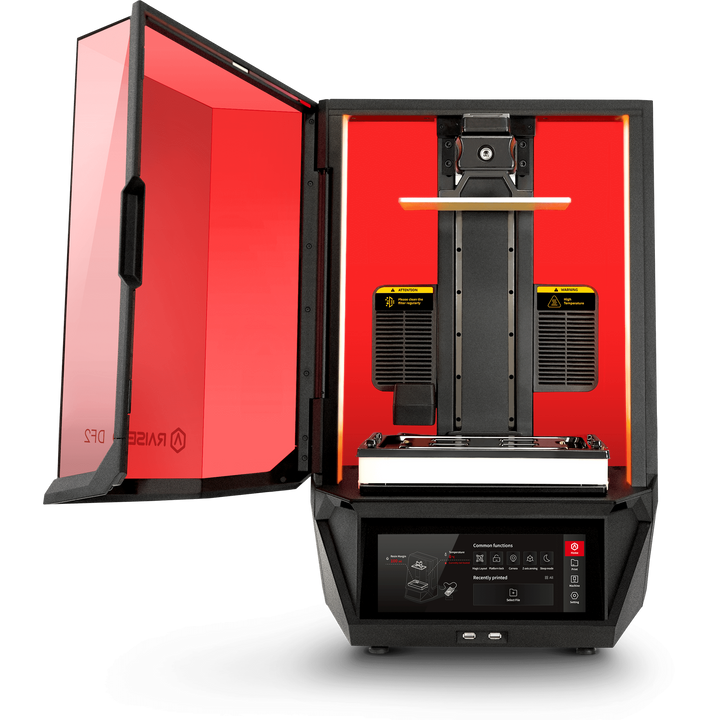

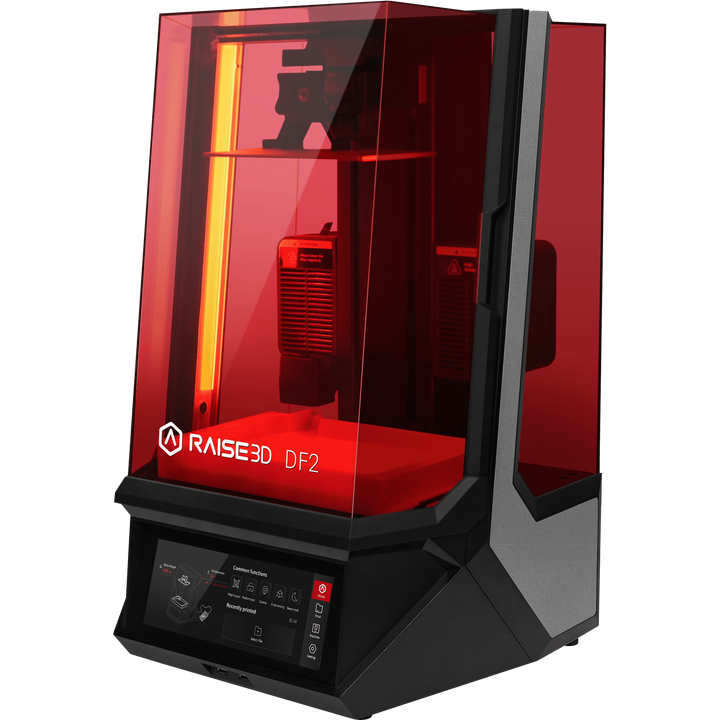

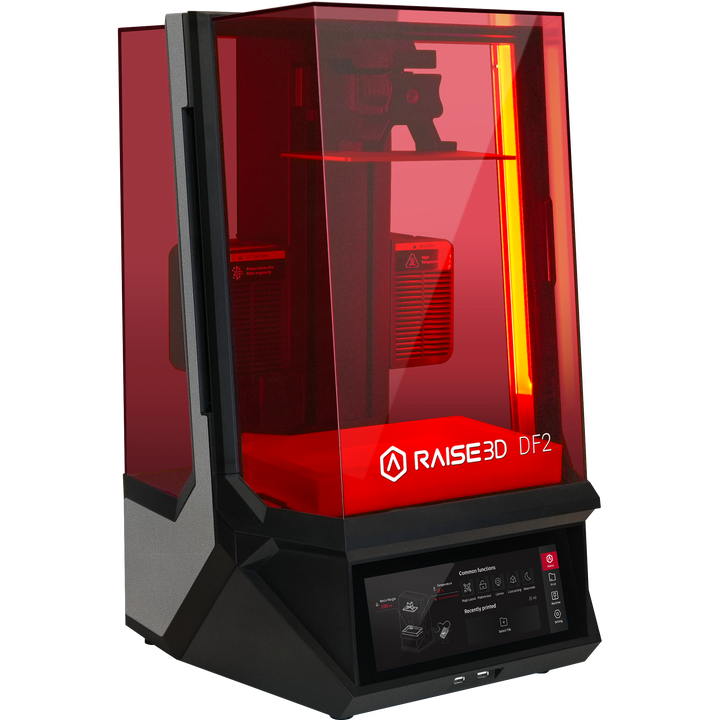

The Raise3D DF2 is a professional DLP 3D printer, designed for producing high-resolution, smooth, and reproducible resin parts. With its precise Z-axis lift system, intelligent material management, and innovative Air-Peel technology, the DF2 delivers consistent results – from prototype to small series.

Highest detail fidelity in every layer

The 2560 × 1440 pixel powerful projection unit ensures razor-sharp details and clean surfaces – ideal for functional prototypes, medical applications, or delicate designs. The stable Z-axis with a load capacity of up to 200 kg guarantees absolutely even layer formation without offset or wobble.

Air-Peel technology – less force, more success

The intelligent air separation system reduces the layer peel force from 50 kg to only 10 kg. This almost eliminates layer lifting, shortens print times, and significantly increases the success of every print.

Smart Build Platform with RFID technology

The RFID-supported build platform automatically detects resin type, process parameters, and post-processing settings. This allows printing, washing, and curing to be efficiently linked – without manual intervention. This saves time and eliminates user errors.

Intelligent control with Raise Touch

Through the 10.25-inch touchscreen, you have all functions under control:

• Magic Layout for easy multiple model placement

• Automatic pre-print inspection for maximum safety

• Intuitive user interface for comfortable workflow control

Consistent results with every print

The precisely guided Z-axis and heated build volume ensure reproducible quality – even for larger parts or long print jobs.

Open material system with co-branding resins

Raise3D collaborates with renowned manufacturers such as BASF and Henkel. The optimized resins – including LOCTITE 3D IND405™, Ultracur3D® RG 3280, or RG 1100 B – expand the application range from design prototyping to technical series components.

Technical highlights

• Printing technology: DLP (405 nm)

• Build volume: 200 × 112 × 300 mm

• Resolution: 2560 × 1440 pixels

• Layer height: 0.05 – 0.1 mm

• Z-axis load capacity: 200 kg

• Touchscreen: 10.25-inch Raise Touch

• Connectivity: USB | Ethernet | Wi-Fi

• Safety features: Door lock + HEPA filter + camera

Raise3D DF2 – The DLP 3D printer for those who expect uncompromising precision.
Perfect for demanding engineers, designers, and manufacturers who require consistent quality in every layer.
