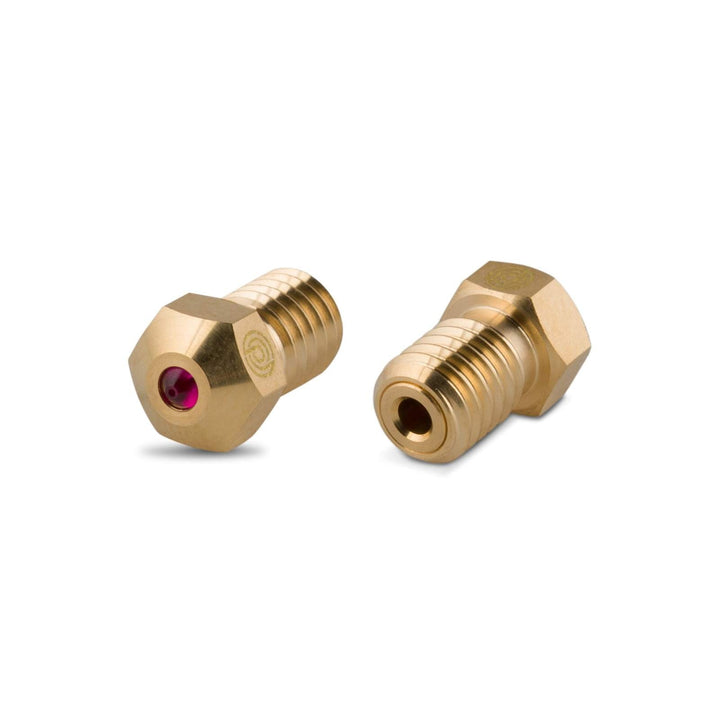

PrimaCreator RepRap M6 Ruby Nozzle 0.4 mm - 1.75 mm - 1 Piece

PrimaCreator Ruby Nozzle – The Perfect Solution for All Materials

The PrimaCreator Ruby Nozzle is the latest addition to the PrimaCreator nozzle lineup. This innovative nozzle combines the advantages of a high-quality brass nozzle with the robustness of a ruby tip to provide you with an unparalleled printing experience.

A conventional brass nozzle is often recommended because it has superior thermal conductivity. However, a brass nozzle has its drawbacks: when using abrasive materials like carbon or glowing filaments, it wears out quickly. This is where the hardened steel nozzle comes into play, which is more durable but does not offer the same thermal conductivity as brass. The logical solution is to combine the best of both worlds.

The Advantages of the PrimaCreator Ruby Nozzle

With the PrimaCreator Ruby Nozzle, you get the same high-quality brass quality as with our regular nozzles, complemented by a small ruby tip. This combination allows you to print with both standard filaments like PLA, ABS, and PETG as well as abrasive materials such as carbon-filled filament, metal, glowing filaments, and wood. This finally lets you use one nozzle for all your materials.

All PrimaCreator Ruby nozzles are made from the best high-quality brass with a genuine ruby tip. They are produced in a state-of-the-art factory, with all nozzles manufactured to a tolerance of less than ± 0.01 mm. This ensures that your filament has a very smooth and clear surface when extruded, leading to better print results.

For optimal print quality, we strongly recommend re-leveling the build plate after switching to a new nozzle. Note that a PrimaCreator nozzle may be compatible with your printer, but the distance between the nozzle and build plate must be adjusted.

The Manufacturing Process of PrimaCreator Nozzles

The process of manufacturing a PrimaCreator nozzle begins with selecting high-quality materials. Upon arrival at the factory, the material undergoes an optical inspection. Then the material is formed into a long rod. This process is done only once, unlike many other (cheaper) manufacturers where this step must be repeated multiple times. Afterward, the material goes through an ultrasonic cleaning bath and is then cleaned again and protected against surface oxidation.

The nozzle is now shaped with millimeter precision, with a tolerance of less than ± 0.01 mm. Removing sharp edges is a crucial step, as it greatly affects the result. A smooth and clean nozzle is essential to avoid clogs. In each batch, some nozzles are selected and cut in half to ensure all specifications are met and the surface is in perfect condition.

The nozzles are then checked one last time and individually packed in a protective box – ready to be shipped to you.

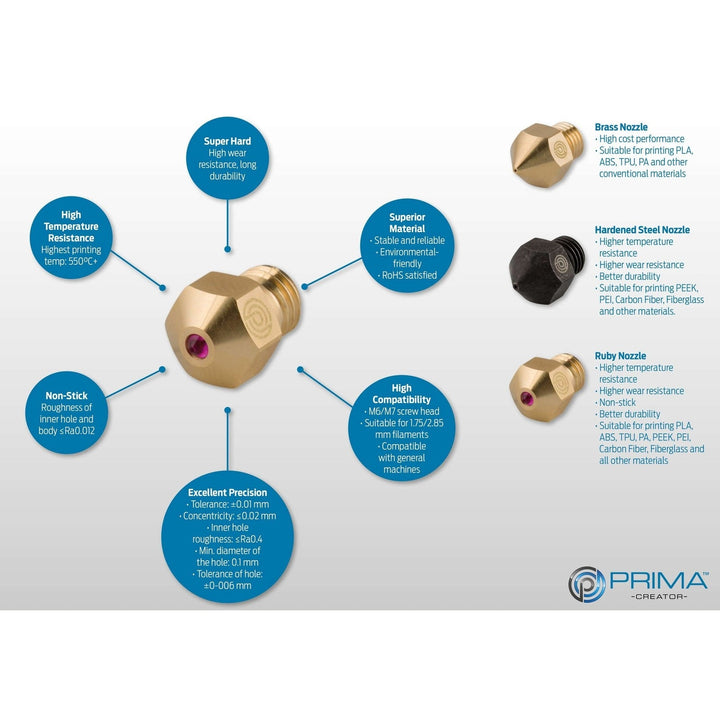

Why Should You Use a Ruby Nozzle?

• All filaments, one nozzle
• Extreme durability
• Ideal for very abrasive filaments like carbon, glowing materials, fiberglass, metal, and wood
• Perfect diameter without jagged edges ensures better print quality

The PrimaCreator Ruby Nozzle is the perfect choice for anyone who wants only the best at an excellent price-performance ratio
