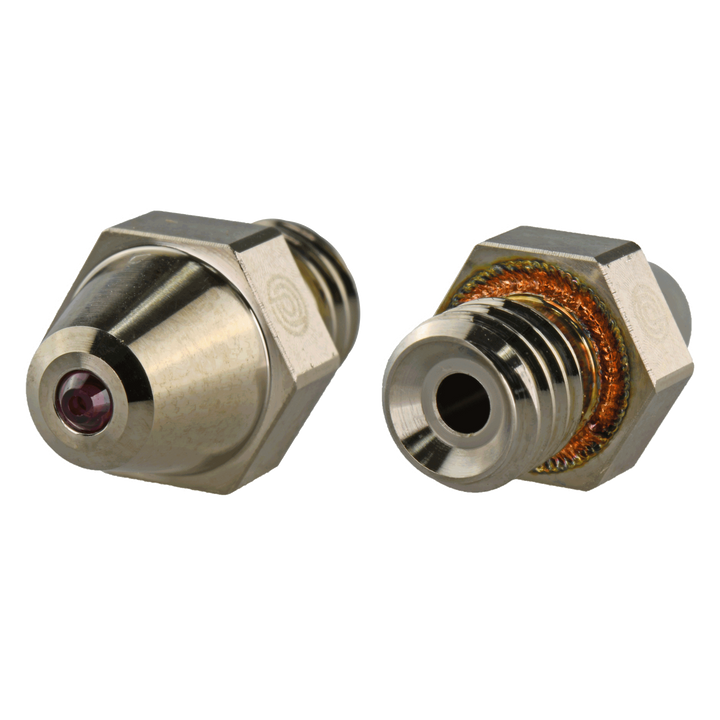

Raise3D Pro2 Plated Copper Ruby Nozzle 0.6 mm - 1 Piece

PrimaCreator Ruby Nozzle – The perfect choice for all materials

The PrimaCreator Ruby Nozzle is the latest addition to the PrimaCreator nozzle range. This innovative nozzle combines the advantages of conventional brass nozzles while offering a solution to the challenges of printing with abrasive materials.

Conventional brass nozzles are often recommended because they have excellent thermal conductivity. However, they also have their disadvantages: when using abrasive materials such as carbon or luminous filaments, they wear out quickly. A hardened steel nozzle is more durable but not optimal for daily use, as its thermal conductivity is not comparable to that of brass nozzles.

The logical solution is to combine the best of both worlds – and that is exactly what the PrimaCreator Ruby Nozzle offers.

Our Ruby Nozzle is made of high-quality plated copper and is equipped with a real ruby at the nozzle tip. This combination allows you to print with both standard filaments like PLA, ABS, and PETG as well as abrasive materials such as carbon-filled filament, metal, luminous filaments, and wood. With this nozzle, you can process all your materials effortlessly.

Finally, a nozzle for all materials!

All PrimaCreator Ruby nozzles are made from the best high-quality plated copper with a genuine ruby tip. They are produced in a state-of-the-art factory, with each nozzle manufactured to a tolerance of less than ± 0.01 mm. This ensures a very smooth and clear surface during extrusion, leading to better print results.

For optimal print quality, we recommend realigning the build plate after switching to a new nozzle. Note that a PrimaCreator nozzle may be compatible with your printer, but the distance between the nozzle and build plate must be adjusted.

The manufacturing process of a PrimaCreator nozzle begins with selecting a high-quality material. Upon arrival at the factory, the material undergoes an optical inspection. It is then formed into a long rod. This process is done only once, unlike many other (cheaper) manufacturers where this step must be repeated several times, often up to 3-4 times, without achieving the same results. After this step, the material goes through an ultrasonic cleaning bath and is then cleaned again and protected against surface oxidation.

The nozzle is now shaped with millimeter precision, with a tolerance of less than ± 0.01 mm. Removing sharp edges is an important step, as this greatly affects the result. Too many sharp edges can make the nozzle more prone to clogging. Therefore, it is crucial that the nozzle is very smooth and clean before use. In each batch, some nozzles are selected and cut in half to ensure all specifications are met and the surface is in perfect condition.

The nozzles are then checked one last time and individually packed in a protective box – ready to be shipped to you.

The PrimaCreator Ruby Nozzle is the perfect choice for anyone who wants only the best at an excellent price-performance ratio!

Why should you use a Ruby nozzle?

• All filaments, one nozzle
• Extreme durability
• Ideal for very abrasive filaments such as carbon, luminous materials, fiberglass, metal, and wood
• Perfect diameter without
