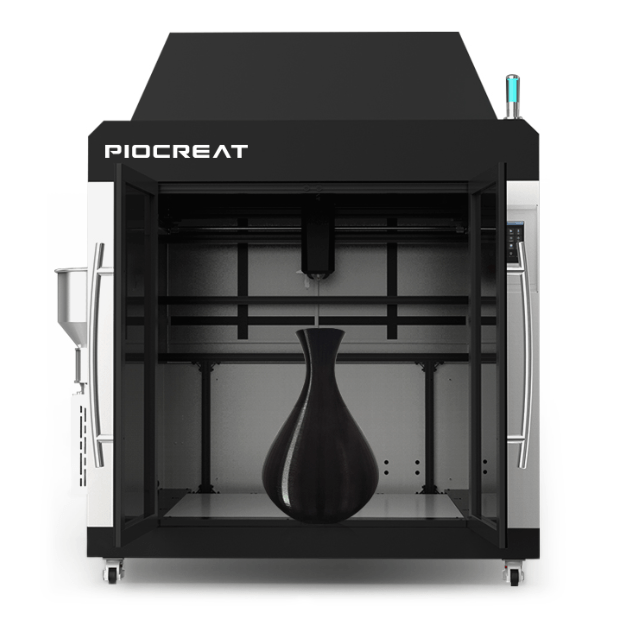

PioCreat G12 Granulate 3D Printer

Powerful 3D printer for large projects: Piocreat G12

Industrial dimensions for your projects

The Piocreat G12 is a highly advanced 3D printer specifically designed for large industrial applications. With an impressive build volume of 1200 x 1000 x 1000 mm, you can print enormous models that are indispensable in industry. The fully enclosed build chamber with a constant temperature of 60°C ensures a consistent printing environment, significantly improving the quality and durability of your parts. Thanks to the maximum printing speed of 100 mm/s, you benefit from shorter print times and efficient production that meets the demands of modern industrial cycles.

FGF Technology for Cost Efficiency

The Piocreat G12 uses advanced FGF technology (Fused Granulate Fabrication), which offers a cost-effective alternative to conventional FDM printing. Instead of filaments, this system uses pellets that go directly into the extruder. This method not only reduces production costs but also allows the use of a variety of thermoplastics such as PLA, PETG, ABS, and many more. The direct processing of pellets ensures a homogeneous melt and an even print surface, ideal for demanding industrial applications and the production of complex parts.

Innovative Features for Excellent Print Results

The Piocreat G12 offers a range of features that set it apart from other 3D printers. The self-developed screw nozzle design with a diameter from 0.6 to 6 mm and a maximum temperature of 450°C ensures thorough and even melting of materials. The fast heating system of the print bed, which heats up to 150°C in just 5-8 minutes, significantly reduces waiting times and optimizes the printing process. The automatic multi-point leveling system ensures your prints are precise and error-free, while the stable build chamber with reduced vibration further improves print quality.

Construction and Technical Details Category Details Usable Nozzle Type Pio M7 Maximum Nozzle Temperature 450 ºC Open Filament System Yes Extruder Type Direct Drive Recommended Maximum Print Speed 100 mm/s Build Volume 1200 mm x 1000 mm x 1000 mm Maximum Build Plate Temperature 150 ºC Build Plate Material Tempered Glass (Safety Glass) Build Plate Attachment Fixed Build Plate Leveling System Automatic Build Chamber During Process Open or Closed Heated Build Chamber Yes, max 60°C Filament Chamber Closed Yes Number of Extruders 1 Installation Space / Requirements Overall Dimensions (L x W x H) 2200 mm x 1780 mm x 2250 mm Total Weight 850 kg Ambient Temperature (Operation) 5°C - 40°C Maximum Power Consumption 7000 W Voltage AC: 230 V (50 Hz) Equipment Emergency Stop Yes HEPA Filter Yes Filament Sensor Yes Power Failure Protection Yes Touchscreen Yes Connectivity SD Card Yes USB Port Yes Wi-Fi No Accuracy Layer Height 0.2 - 2.4 mm Shipping Shipping Carton (L x W x H) 1770 mm x 1960 mm x 2150 mm Shipping Weight 1050 kg
