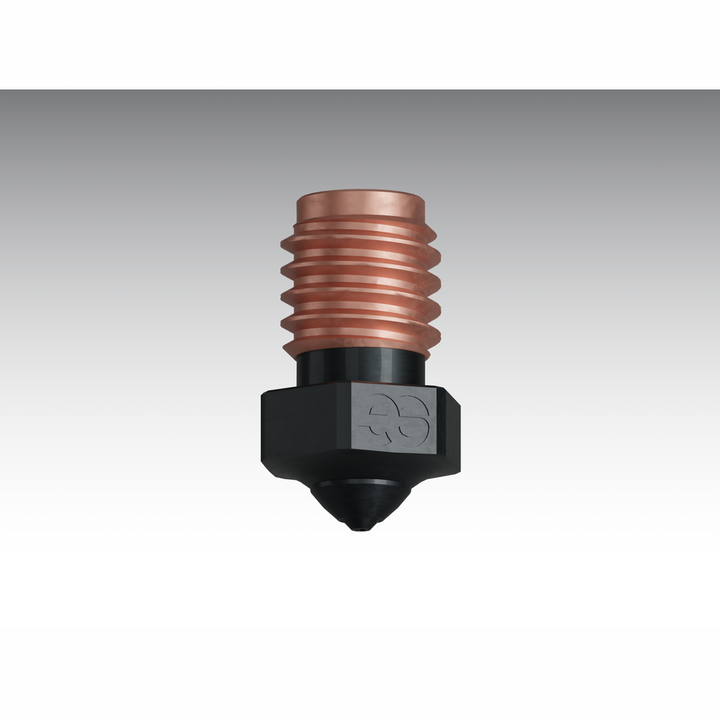

Phaetus PS Silicon Carbide Nozzle 0.4 mm - 1.75 mm - 1 Piece

Silicon Carbide Nozzle

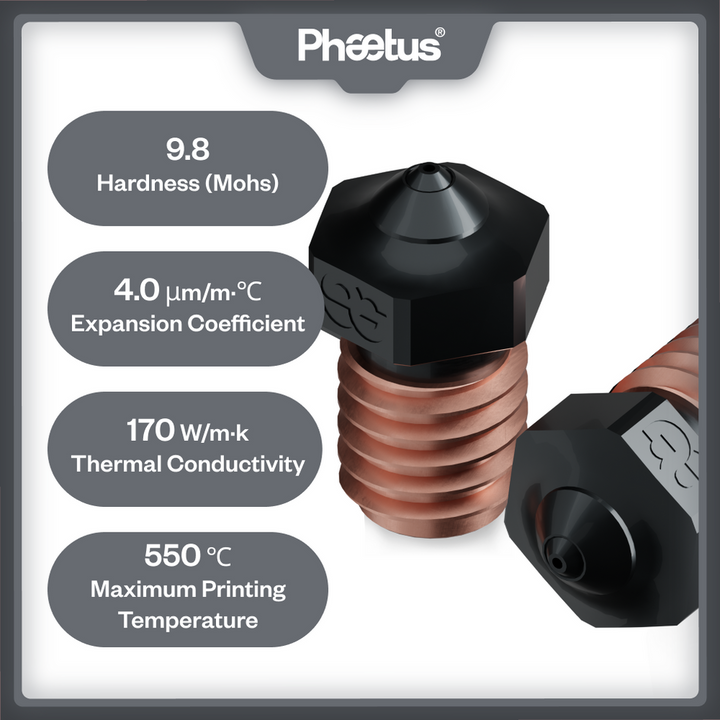

The Silicon Carbide Nozzle meets all printing requirements, whether you work with standard PLA, PEEK, or even carbon fiber reinforced materials. Made from 99.9% high-purity silicon carbide, the nozzle offers high temperature resistance and exceptional wear resistance. This ensures a long service life of up to 550 printing hours without wear on the nozzle opening or tip.

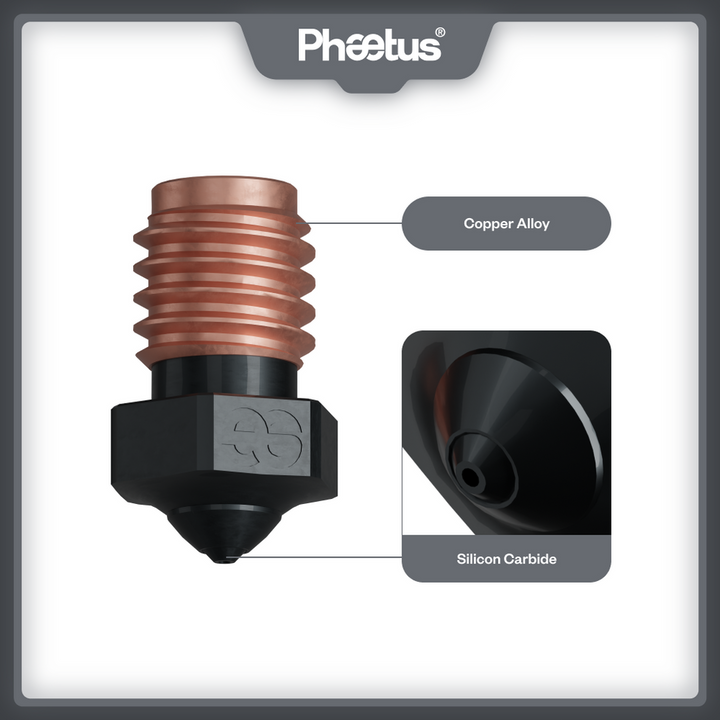

The flat nozzle tip made of 99.9% high-purity silicon carbide provides high thermal conductivity, which increases the efficiency of the nozzle heater and thus enables fast printing. The special rivet assembly of the silicon carbide tip ensures a stable and reliable connection. The entire nozzle body design provides high strength and prevents breakage. Furthermore, the entire nozzle is coated with a DLC coating, whose surface friction coefficient is only 0.05, allowing clean printing without plastic adhesion. The high precision of the nozzle machining ensures a bore dimension tolerance of 0.01 mm with a concentricity of 0.02 mm.

product features

• Min. Nozzle Opening Diameter: φ0.4
• Tolerance: ±0.01mm
• Inner Surface Roughness: ≤Ra0.2μm
• Concentricity: 0.02mm

Suitable Filaments

The Silicon Carbide Nozzle can be used with a variety of materials, including:

• Standard PLA
• PEEK
• Carbon Fiber Reinforced Materials

Compatible with

• Phaetus Hotends
• E3D Hotends
• Creality Hotends
• Custom Modified Hotends
• Other V6 Style Hotends
