Phaetus Dragonfly Hot-End BMS for 3D Printers

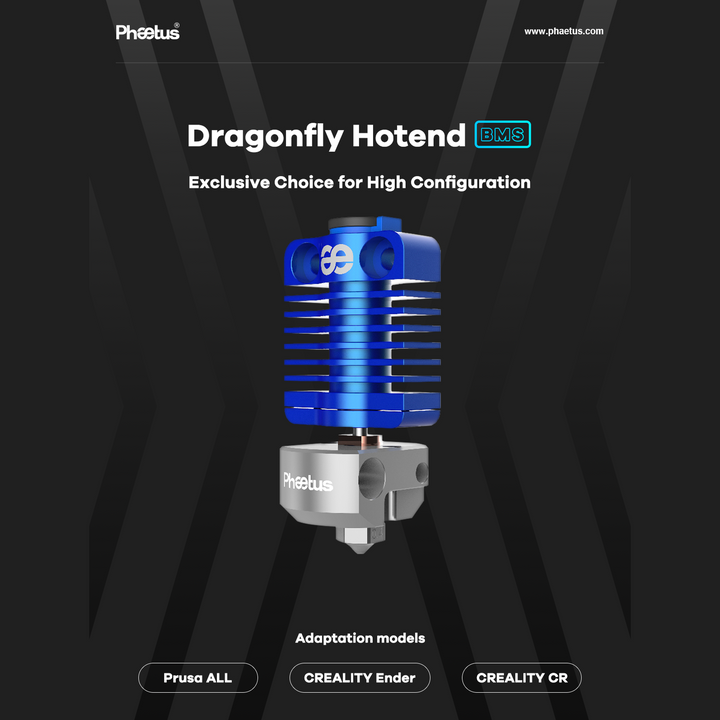

Phaetus Dragonfly Hot-End BMS

Discover the Phaetus Dragonfly Hot-End BMS, a state-of-the-art hotend designed for ultimate performance and versatility in 3D printing technology. With an impressive temperature resistance of up to 500 ℃, this hotend is the perfect choice for demanding printing projects.

Product Features

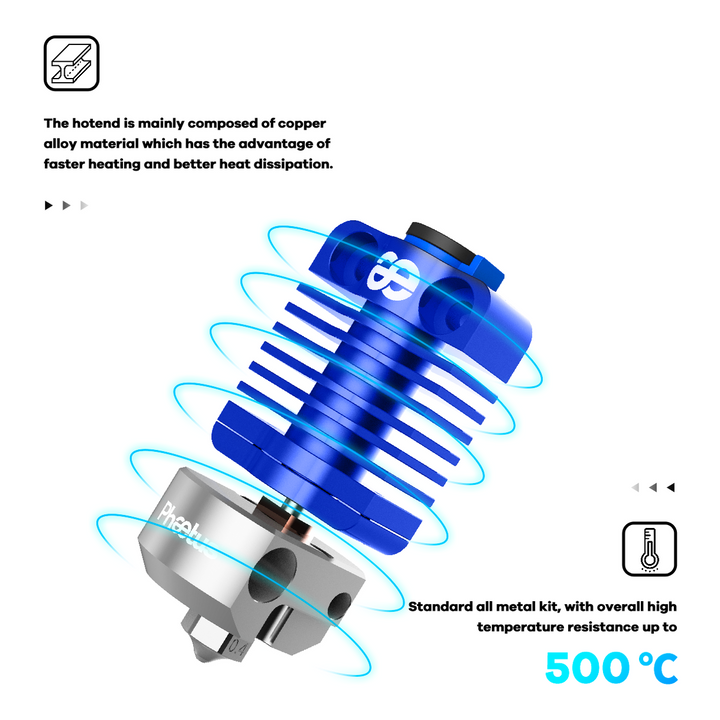

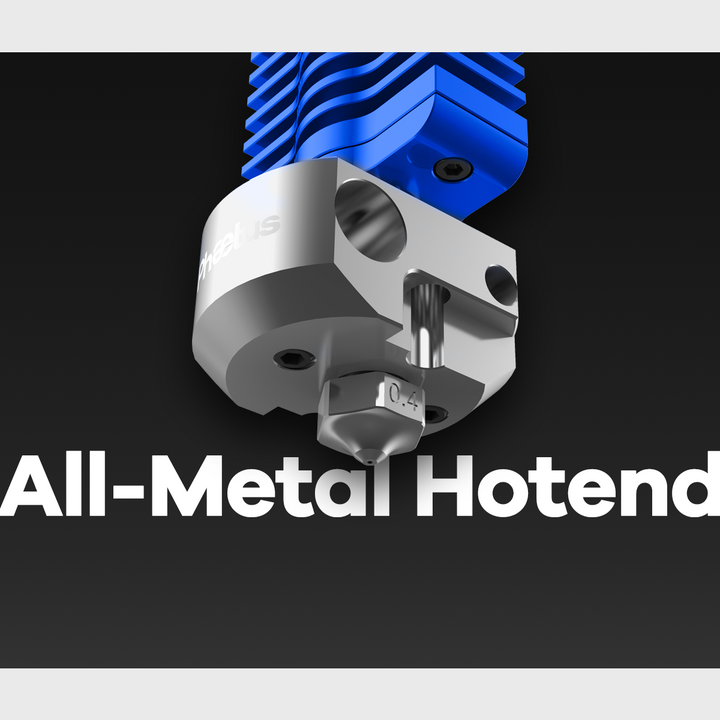

• All-metal kit with high temperature resistance up to 500 ℃.
• Mainly made of copper alloy, allowing faster heating times and better heat dissipation.

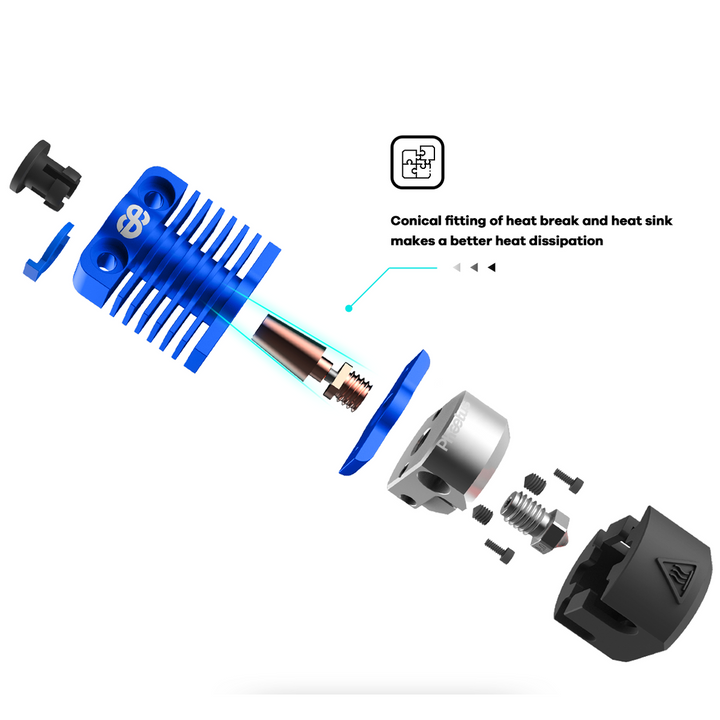

• Tapered connection between heatbreak and heatsink ensures optimal heat dissipation.

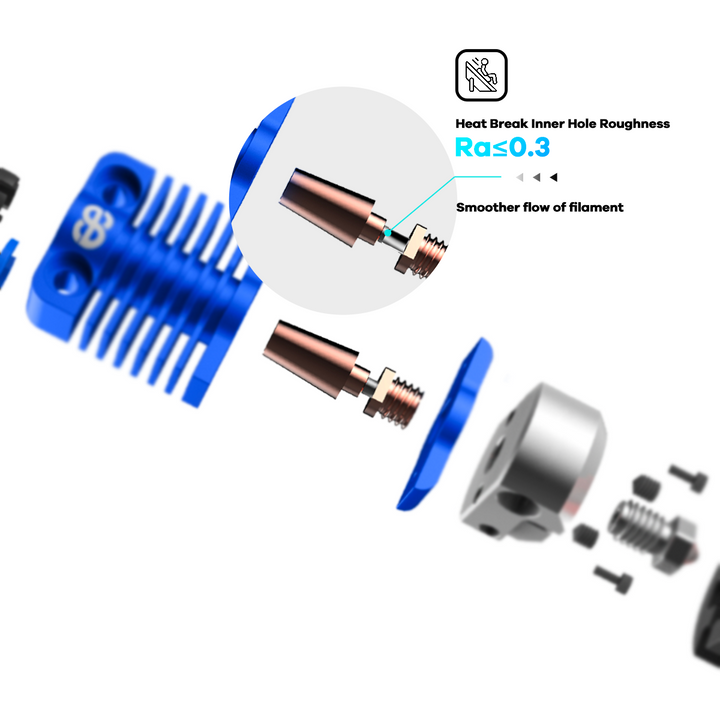

• Inner diameter of the heatbreak with a roughness of Ra≤0.3 for smooth filament flow and higher print resolutions.

Compatibility

The Phaetus Dragonfly Hot-End BMS is compatible with a variety of 3D printers, including:

• CR-10 (not compatible with CR-10 V2)
• CR-10-S5
• CR-10-S4
• CR-10S
• CR-10 MINI
• CR-20
• CR-20 Pro
• Ender 2
• Ender 3
• Ender 3 V2
• Ender 3 Pro
• Ender 5
• Ender 5 Plus
• Ender 5 Pro
• TronXY X5S
• TronXY XY2 Pro
• Tevo Tornado
• Alfawise U20
• Lotmaxx SC-10

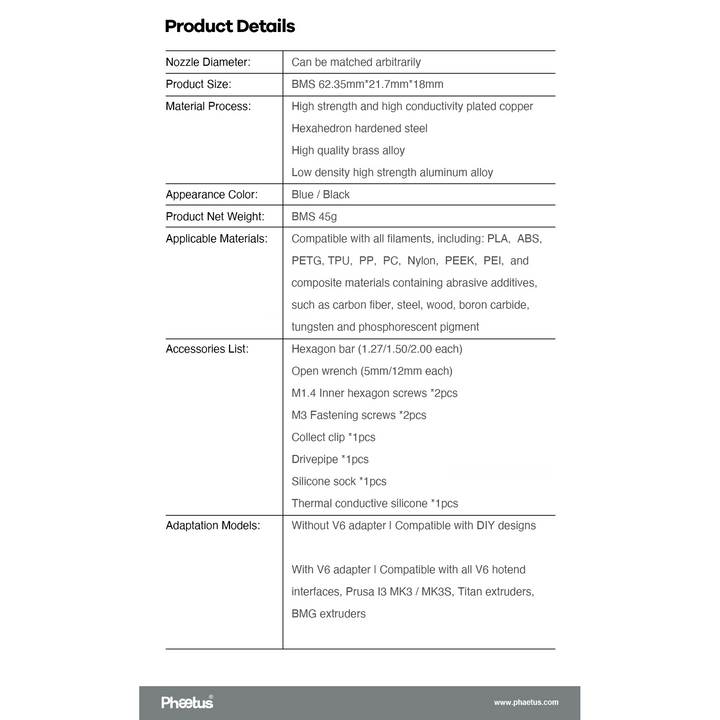

Technical Details

Here are some technical specifications of the Phaetus Dragonfly Hot-End BMS:

• Nozzle diameter: Customizable
• Size: 63 x 22 x 18 mm
• Material processing: High-strength and highly conductive coated copper, hardened steel, high-quality brass alloy, low-density and high-strength aluminum alloy
• Color: Blue / Black
• Net weight: 45 g

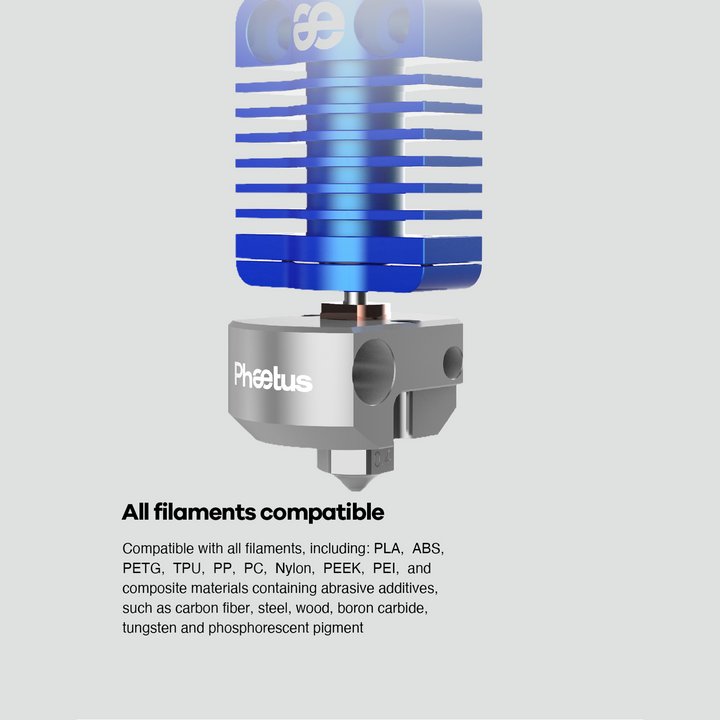

• Suitable materials: Compatible with all filaments, including PLA, ABS, PETG, TPU, PP, PC, Nylon, PEEK, PEI, and composite materials with abrasive additives such as carbon fiber, steel, wood, boron carbide, tungsten, and phosphorescent pigments.

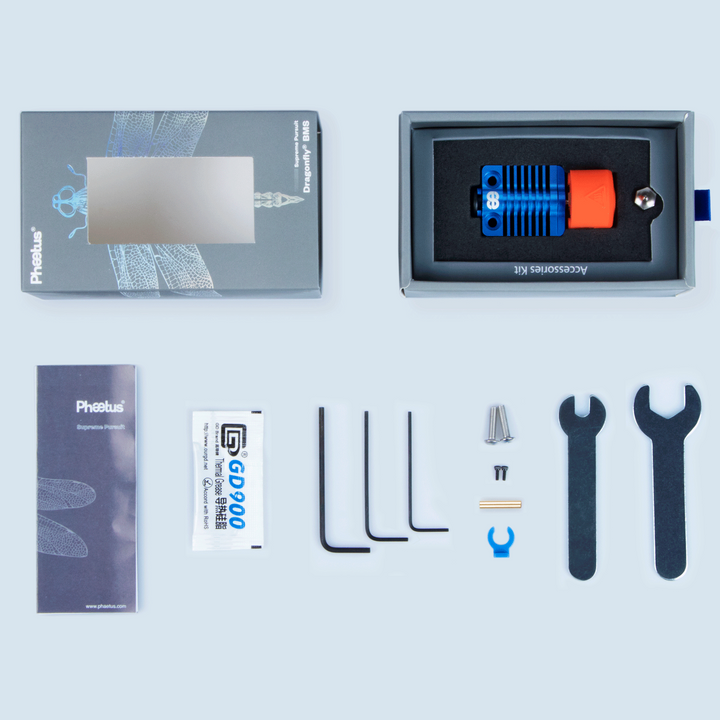

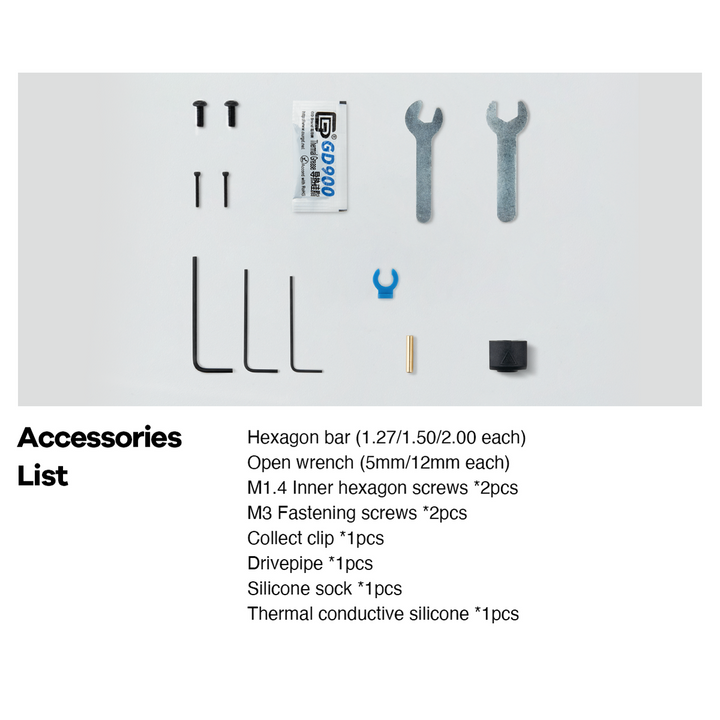

Package Contents

The Phaetus Dragonfly Hot-End BMS package includes the following accessories:

• Hex rod (1.27/1.50/2.00 each)
• Open wrench (5mm/12mm each)
• M1.4 hex socket screws *2 pieces
• M3 mounting screws *2 pieces
• Clip *1 piece
• Feed tube *1 piece
• Silicone sock *1 piece
• Thermally conductive silicone *1 piece

Experience the benefits of the Phaetus Dragonfly Hot-End BMS and take your 3D printing projects to a new level!
