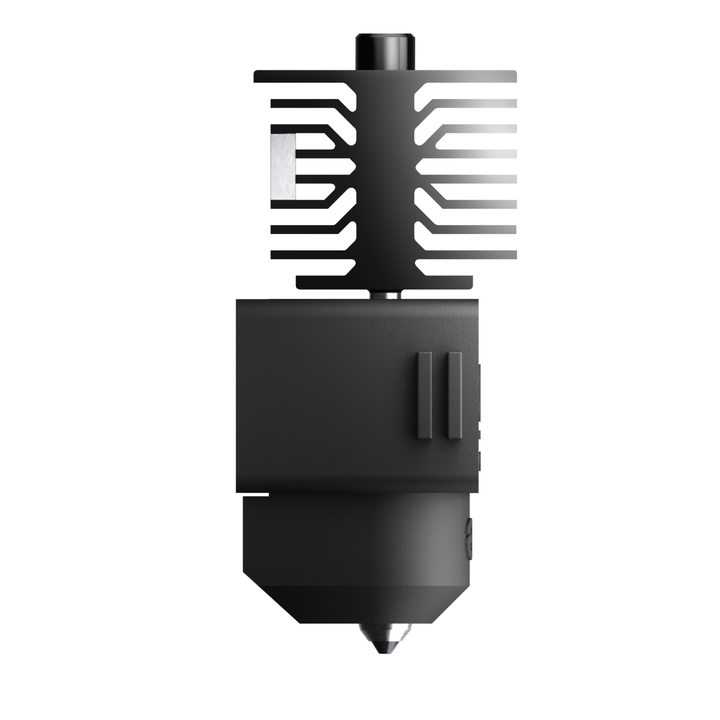

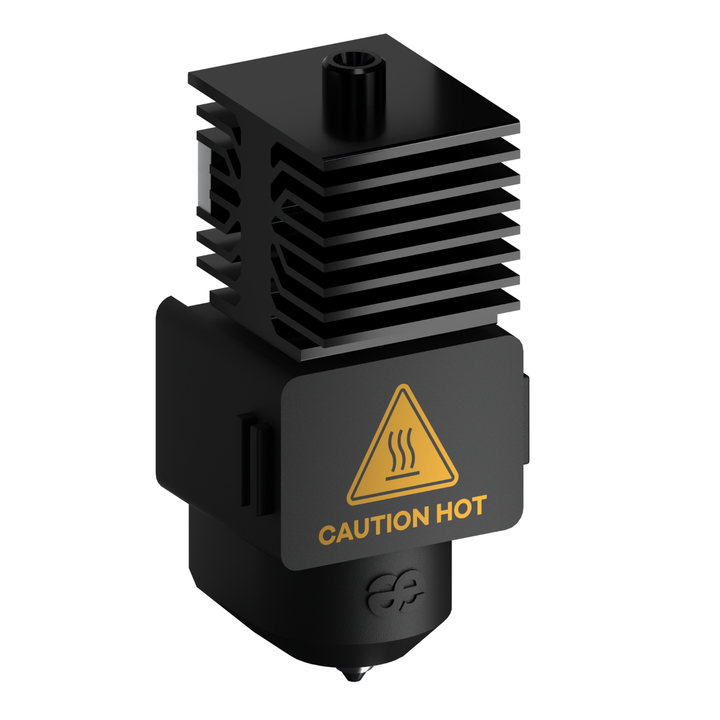

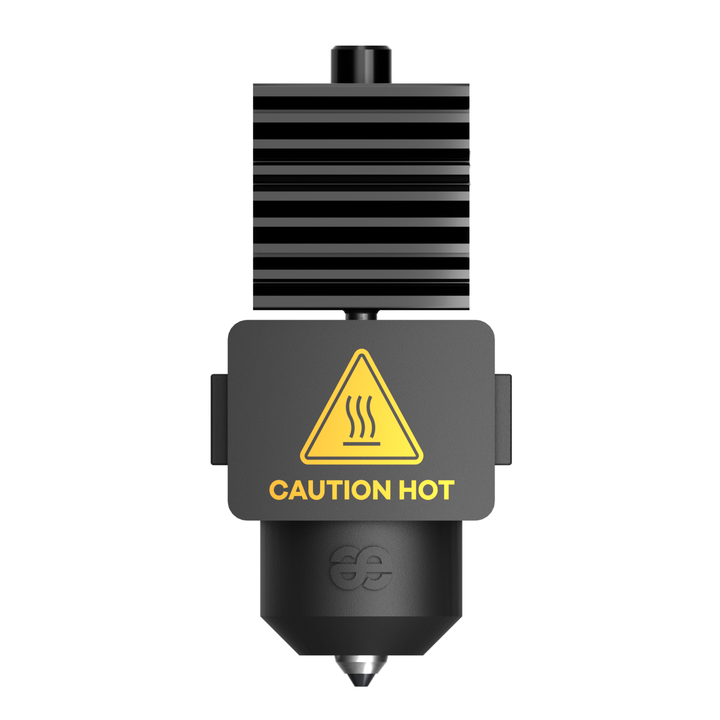

Phaetus Conch Hotend Plus for Bambu Lab A1/A1 Mini

Conch Hotend Plus – The perfect solution for demanding 3D printing

Discover the Conch Hotend Plus, specially designed to meet the growing demands of modern 3D printing. With its combination of structural durability and high flow rates, it ensures consistent extrusion even at increased speeds.

Optimized for demanding printing conditions

The Conch Hotend Plus is equipped with an integrated silicon carbide nozzle with a Mohs hardness of 9.8. This makes it extremely wear-resistant and ideal for printing composite filaments such as:

• Carbon fiber
• Fiberglass
• Luminous materials

Reliable high-temperature performance

With a maximum printing temperature of up to 320 degrees Celsius, this hotend can process a wide range of filaments, including:

• Standard PLA
• PETG
• Technical materials such as PA-CF and ABS

The EndCoat heat break provides effective thermal separation between the heating block and the cooling system, reducing the risk of heat creep and improving reliability during long prints.

Compact & robust design

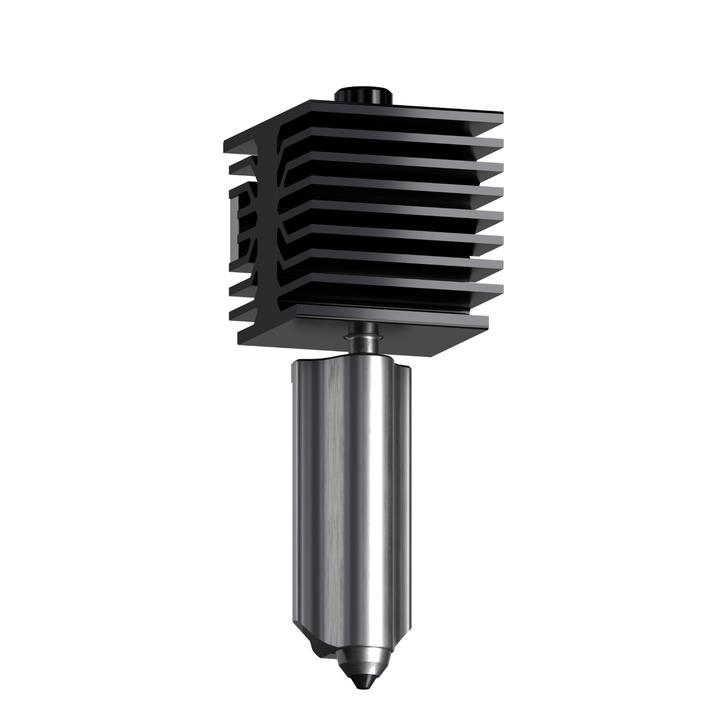

The Conch Hotend Plus features an all-in-one structure that is pre-installed, allowing for easy installation and optimal heat transfer. The rigid design reduces potential deformation and absorbs mechanical shocks, enhancing operational stability and lifespan. Although the nozzle is not replaceable due to the integrated structure, this approach minimizes failure points and simplifies maintenance.

Seamless compatibility with Bambu Lab

The hotend is specially designed for the Bambu Lab A1 and A1 mini and offers a plug-and-play upgrade that requires no firmware adjustments or hardware modifications. Its dimensions and mounting interface are precisely matched to ensure a perfect fit and uncompromising performance with Bambu's multi-filament systems.
