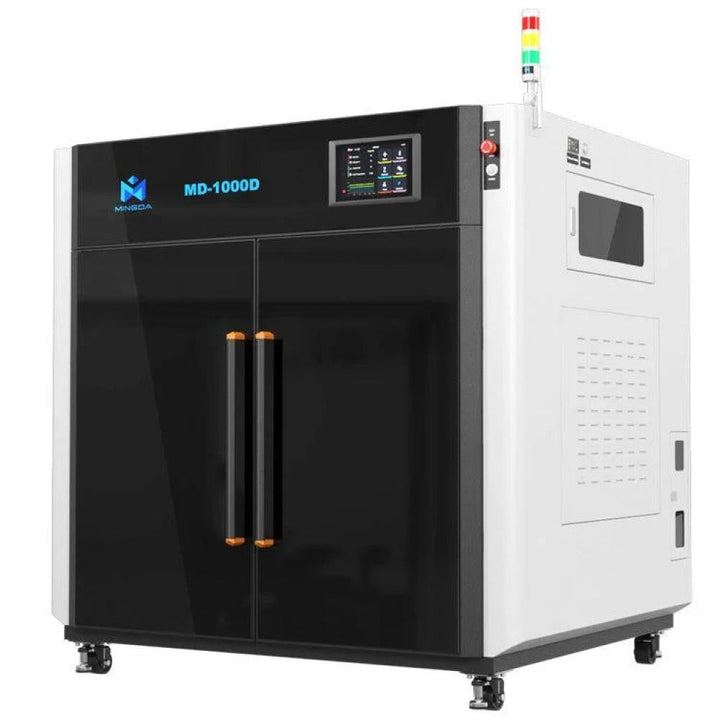

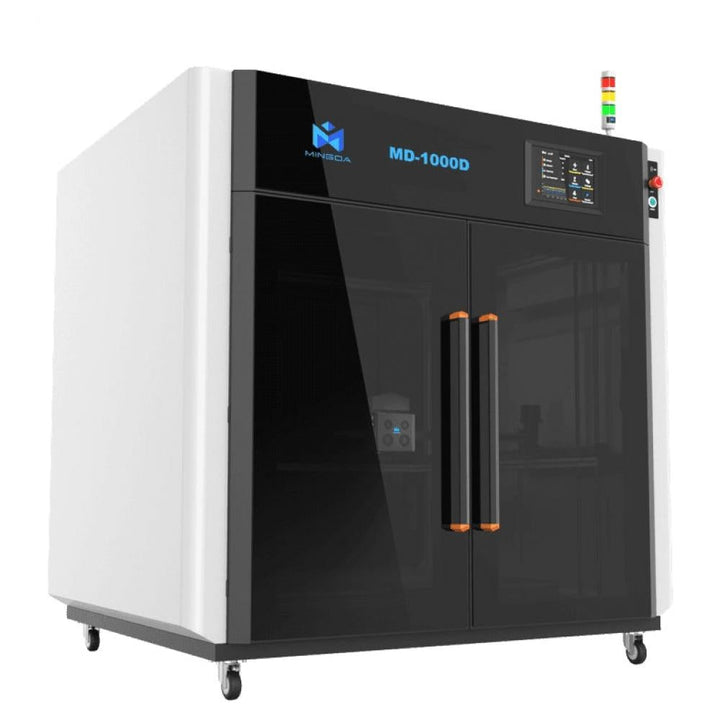

Mingda MD-1000D 3D Printer

Mingda MD-1000D – Industrial 3D Printer for Large-Format and Precise Prototypes

Discover the New Standard for Industrial 3D Printers
The Mingda MD-1000D is the ultimate 3D printer for large industrial applications. With an impressive build volume of 1000 x 1000 x 1000 mm, it offers you the ability to print highly precise, functional prototypes, production tools, molds, and even full-size end products. The combination of high speed, precision, and durable construction makes it the ideal choice for companies that prioritize quality and efficiency.

Product Highlights Fast Printing for Maximum Productivity

The MD-1000D offers a printing speed of up to 300 mm/s, supported by HIWIN linear guides and a closed motor system that ensures both stability and precision. This leads to a significant increase in printing efficiency, making it ideal for companies that need to complete large projects quickly.

• Maximum Printing Speed: 500 mm/s
• Recommended Printing Speed: 300 mm/s
• Max. Flow Rate: 40 mm³/s

Dual Extruder for Complex Print Models

The dual extruder of the MD-1000D allows working with different materials simultaneously. This is especially useful for complex models that require support structures, as one extruder can print support materials like soluble filaments or breakaway supports. This way, you can print precise and complex parts without manual post-processing.

Supported Materials for Every Requirement

The MD-1000D can process highly durable technical materials such as carbon fiber, glass fiber, and nylon composites thanks to a hotend temperature of up to 350°C. This makes it an indispensable tool for the automotive industry, prototyping, and other advanced manufacturing sectors.

• Standard Filaments: PLA, TPU, PETG
• Technical Filaments: HtPA-CF, PET-CF, PA12-CF, and many more
• Support Materials: S-Mulit, S-HtPA

Easy Handling and Remote Control

The Mingda MD-1000D is not only powerful but also easy to use. It comes fully assembled, and with the Mingda OrcaSlicer, a specially developed slicing software, you can start printing immediately without additional settings. Thanks to the remote control function, you can connect the printer via Wi-Fi or network cable and monitor it in real time – ideal for companies managing multiple print jobs simultaneously.

Highest Precision Thanks to Closed-Loop Motors

With closed-loop motors, the MD-1000D ensures extremely high precision and prevents missed steps. This results in better print quality at high speeds and with complex models.

Application Areas

This printer is excellently suited for the automotive industry, prototyping, medical technology, and many other demanding industrial applications.

• Automotive Industry
• Functional Prototypes
• Medical Products
• Gas and Fluid Components

Product Details

• Printing Technology: Fused Deposition Modeling (FDM)
• Build Volume: 1000 x 1000 x 1000 mm
• Machine Dimensions: 1680 x 1365 x 1665 mm
• Extruder Type: Dual Extruder
• Maximum Extruder Temperature: 350°C
• Maximum Printing Speed: 300 mm/s
• Recommended Printing Speed: 200-300 mm/s
• Software: MingDa OrcaSlicer, PrusaSlicer
• Touchscreen: 10-inch HD Touchscreen
• Power Consumption: 2700W

Buy Now and Revolutionize Your Production!

The Mingda MD-1000D is more than just a 3D printer – it is a game-changer for companies looking to take their product development and manufacturing to the next level. Optimize your processes and increase your efficiency with this industrial flagship model.
