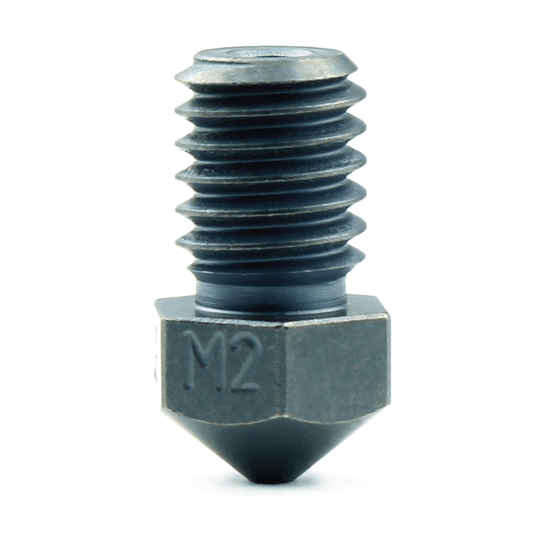

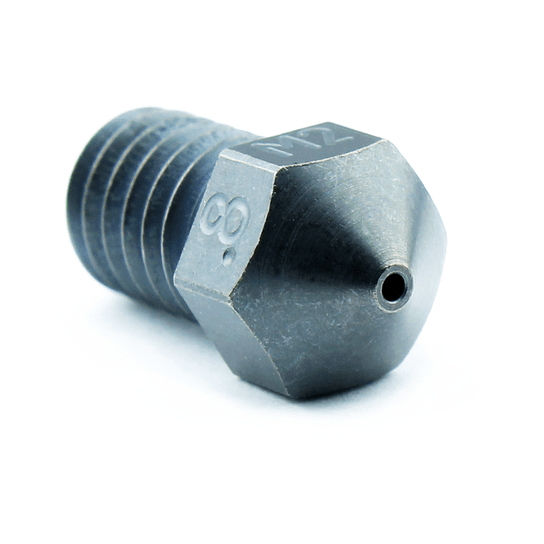

Micro Swiss M2 Hardened High Speed Steel Nozzle RepRap – M6 Thread

Micro Swiss M2 Hardened High Speed Steel Nozzle RepRap – M6 Thread – 1.75 mm Filament – 0.80 mm

The Micro Swiss M2 Hardened High Speed Steel Nozzles are specially designed for extreme temperatures, maximum wear resistance, and excellent anti-stick properties. Made from M2 high speed steel, hardened to 68 HRC, with nickel plating and WS2 coating for optimal performance.

Features

• Made from hardened M2 High Speed Steel – Hardness 68 HRC
• Temperature resistant up to 450 °C without hardness loss
• Electroless Nickel Plating with 70–73 HRC surface hardness
• WS2 Anti-stick coating (friction coefficient: 0.035)
• Nozzle opening: 0.80 mm
• Lifetime warranty against wear (limited)
• Made in the USA

Compatibility

Suitable for all printers with E3D V4 / V5 / V6 1.75 mm hotend, including:

• Prusa i3 MK2 / MK2S / MK3 / Mini
• Anycubic Kobra, Mega X, Kobra Max, Mega Zero
• Creality Ender & CR series with V6-compatible hotends
• INTAMSYS FUNMAT HT & HT Enhanced
• Formbot Raptor, T-Rex, Troodon, Voron
• Mosquito®, Mosquito® Magnum, Magnum+, Liquid
• Copperhead™, E3D Chimera & Kraken

Advantages

The combination of hard nickel surface and WS2 anti-stick coating ensures longer lifespan, less material adhesion, and consistent print quality – even with abrasive materials such as carbon-, fiberglass-, or metal-filled filaments.
