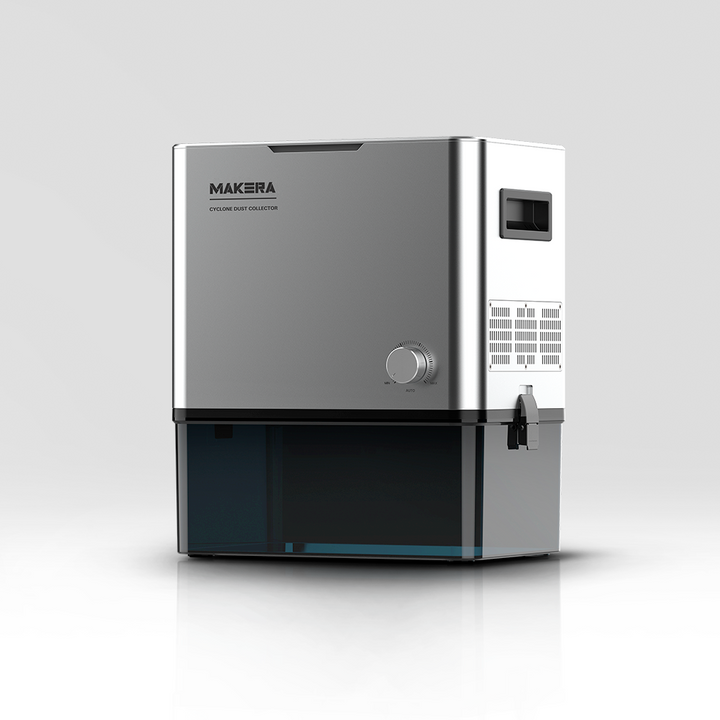

Makera Cyclone CNC Air Cleaner

Makera Cyclone – Intelligent extraction for clean precision

Designed for CNC machines. Optimized for efficiency.

The Makera Cyclone Dust Collector is a powerful, industrial-grade extraction solution for modern CNC systems. With its highly efficient cyclone system, automatic control, and whisper-quiet operation, it ensures a clean, safe, and productive working environment – from makerspaces to professional manufacturing.

Cyclone technology at industrial level

The two-stage cyclone system separates up to 99.5% of all dust particles before they reach the filter. This keeps suction power consistently high while significantly extending the filter's lifespan – ideal for continuous operation in CNC workshops.

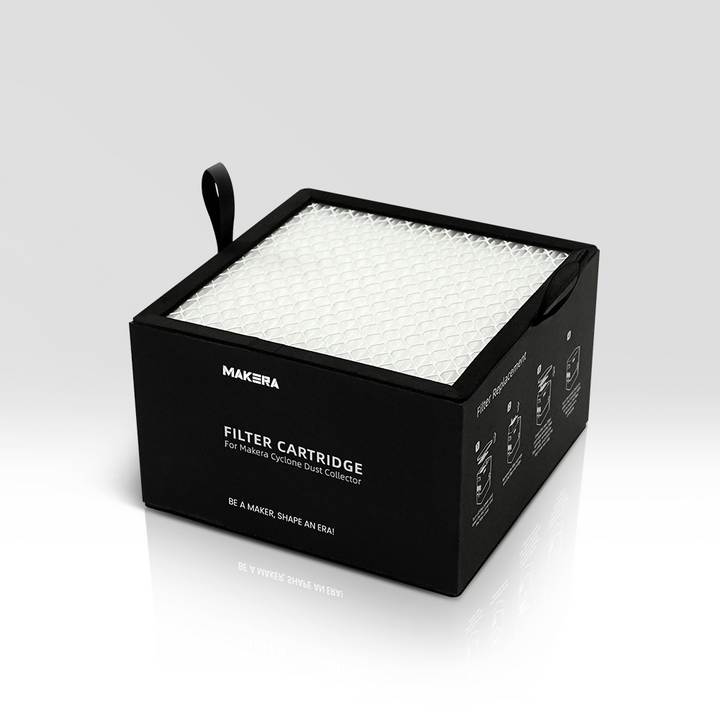

Triple filtration for pure air

A three-stage filtration system with pre-filter, HEPA filter, and activated carbon filter removes even the finest particles down to 0.3 microns. This returns clean air to the room and sustainably improves workplace safety.

Continuous extraction without interruption

Thanks to the dual-stage technology, dust extraction remains consistently active even during long milling or engraving processes. No loss of suction power, no downtime – perfect conditions for precise work and efficient series production.

Quiet, powerful, and energy-efficient

With only 70 dB operating noise, the Makera Cyclone works pleasantly quietly – even in offices, schools, or shared workshops. The optimized airflow design maximizes performance with minimal energy consumption.

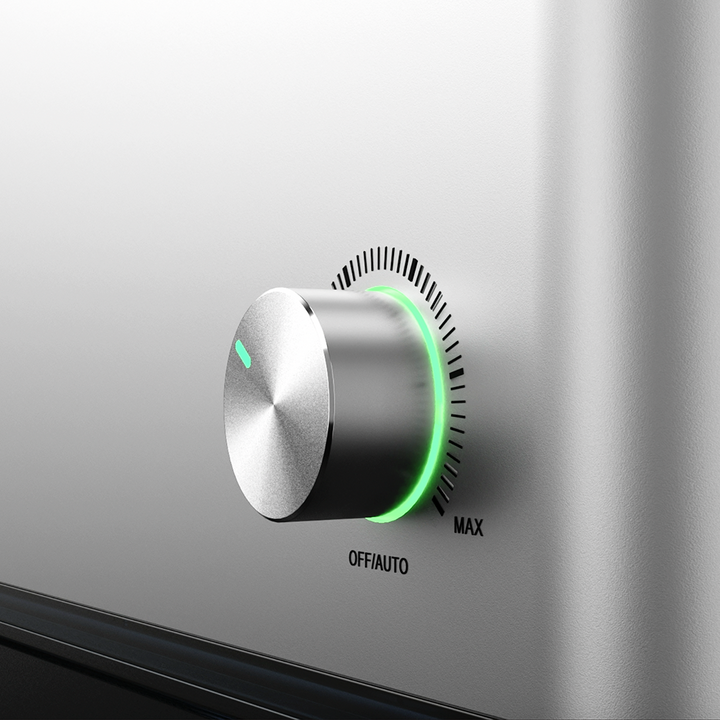

Smart Control – Fully automatic with G-Code or app

The integrated intelligent control automatically starts and stops the extraction via G-code commands or app control. This way, the extraction only runs when needed – for more comfort, energy savings, and reduced wear.

(App control currently exclusively compatible with Carvera Air)

Technical highlights

• Separation efficiency: up to 99.99 %

• Airflow: 900 L/min

• Max. vacuum pressure: 12 kPa

• Container volume: 6 L

• Noise level: ≤ 70 dB

• Protection class: IP54

• Dimensions: 300 × 218 × 354 mm

• Material: Aluminum alloy & high-performance plastic

Clean performance that lasts

The Makera Cyclone is the perfect addition to any Makera CNC machine – reliable, quiet, and fully automatic. For those who value precision, order, and a professional working environment.

Makera Cyclone – Cleanliness that thinks ahead.
