BASF Ultrafuse ABS

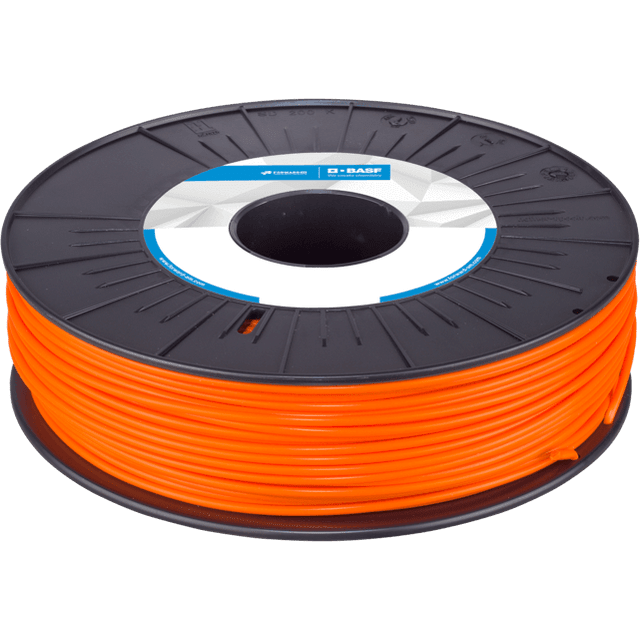

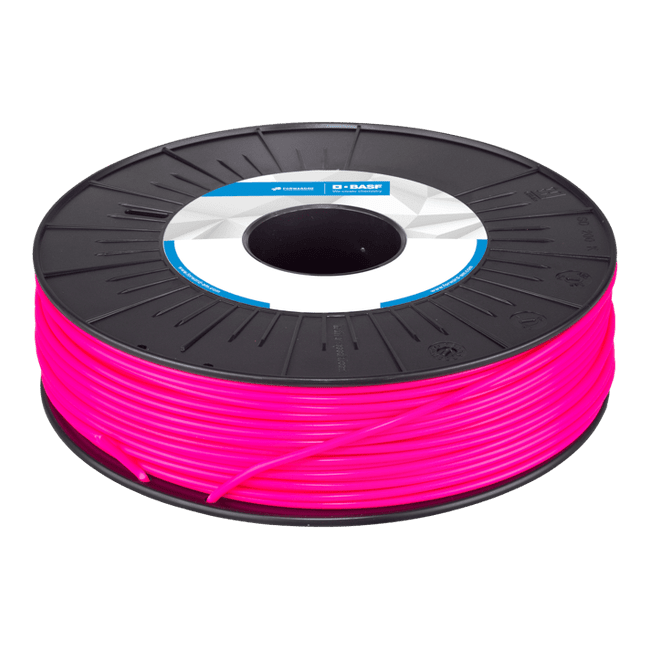

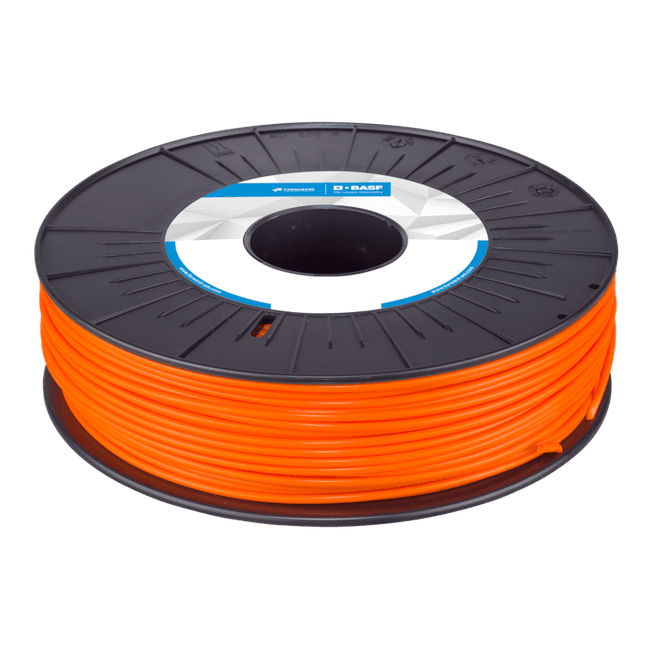

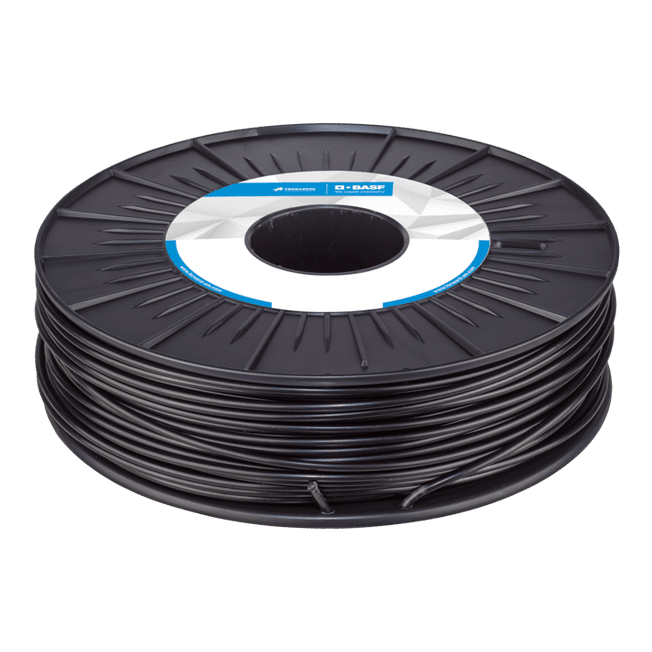

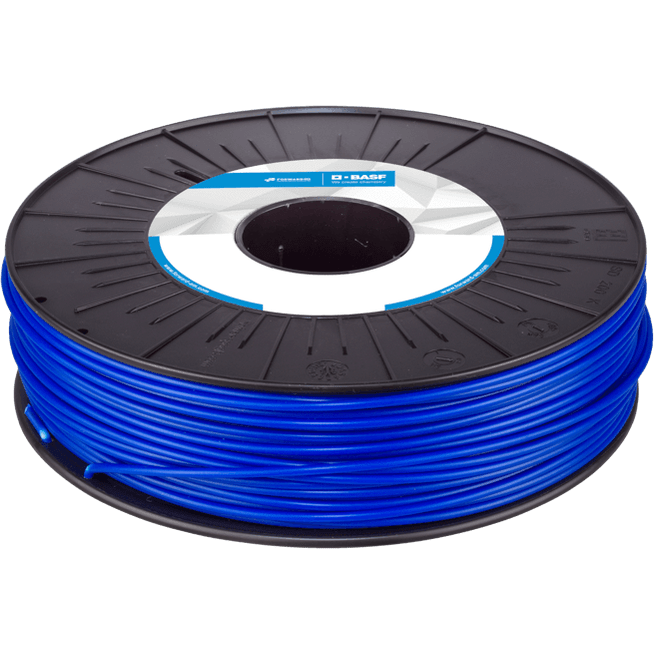

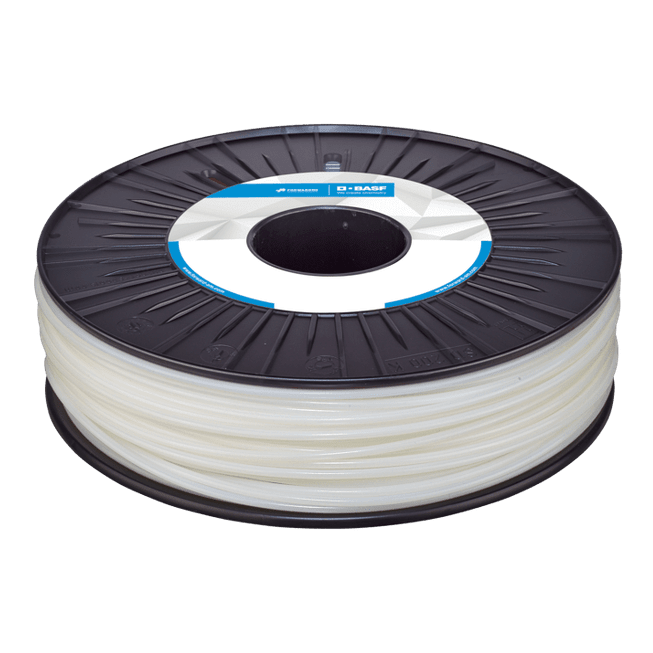

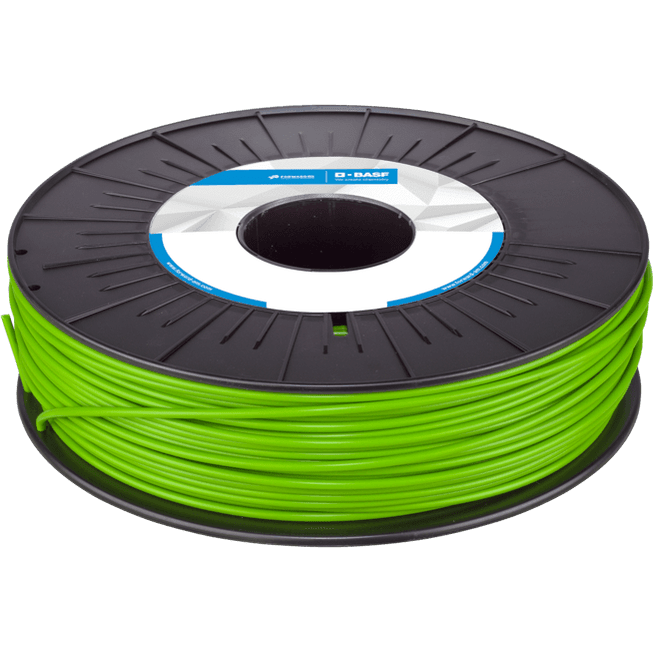

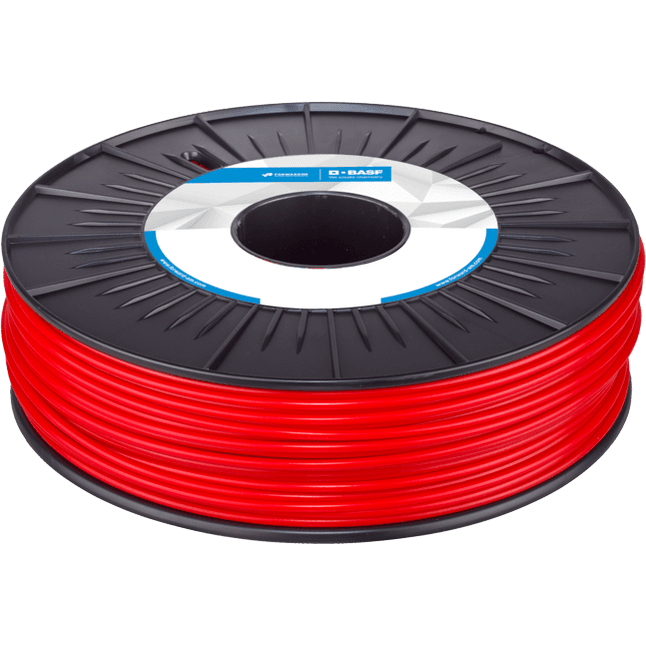

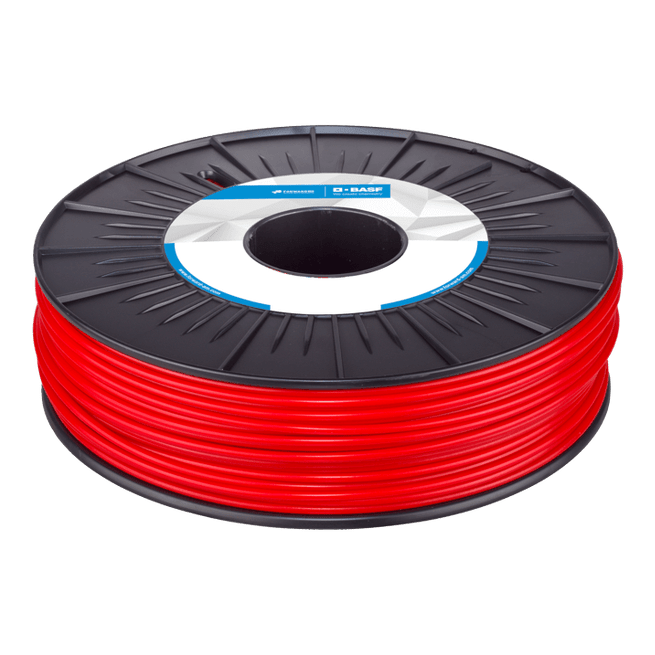

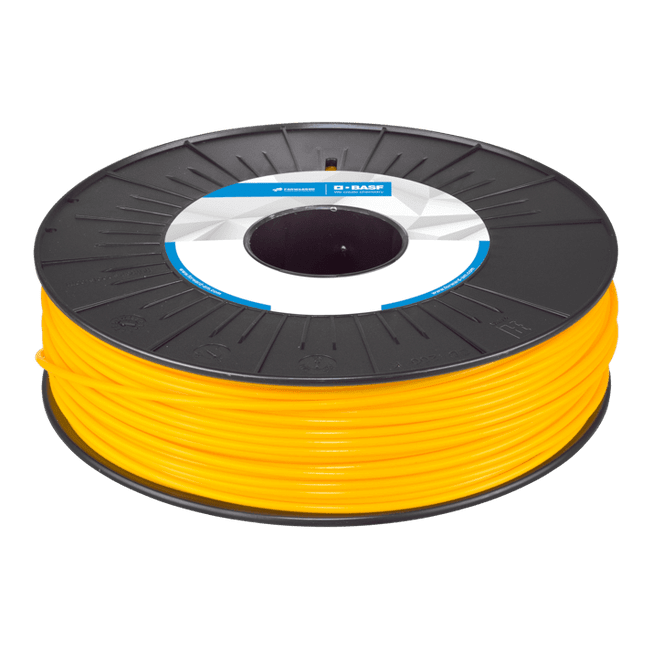

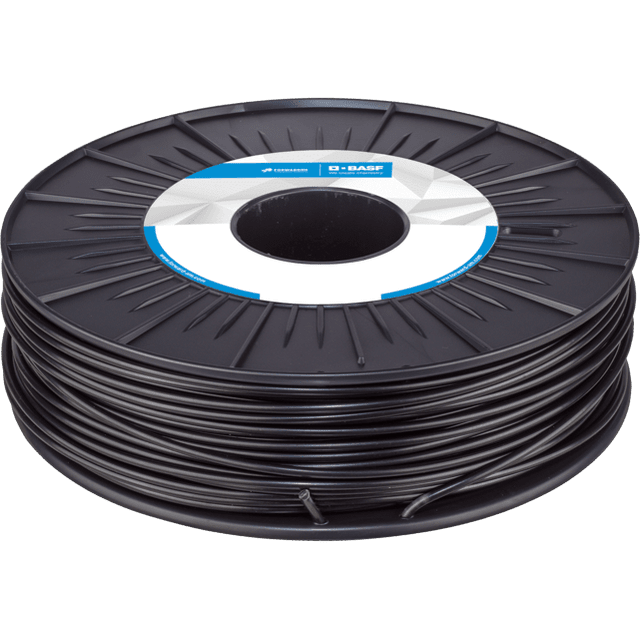

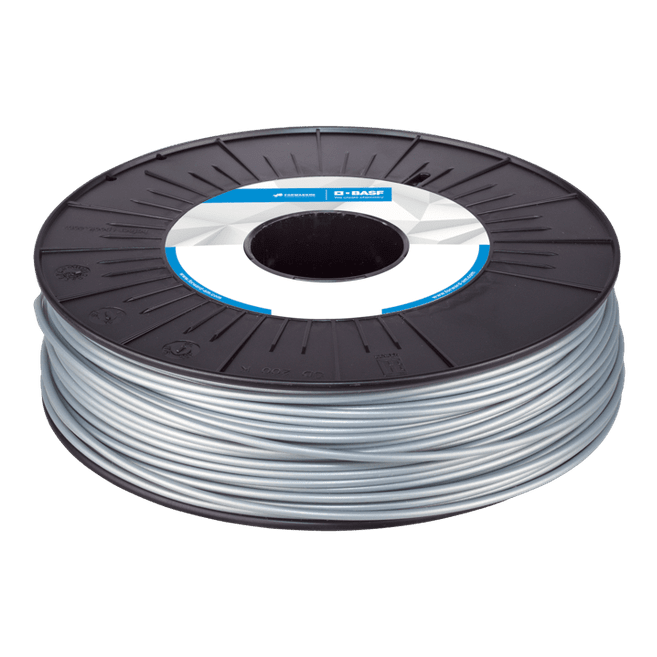

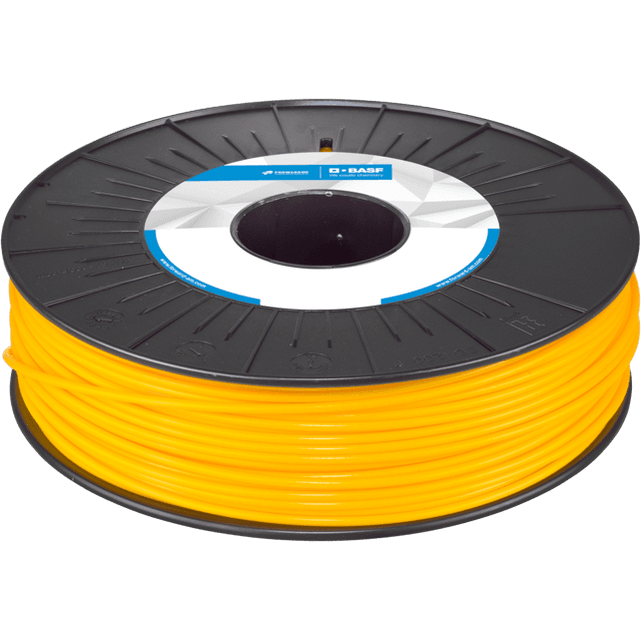

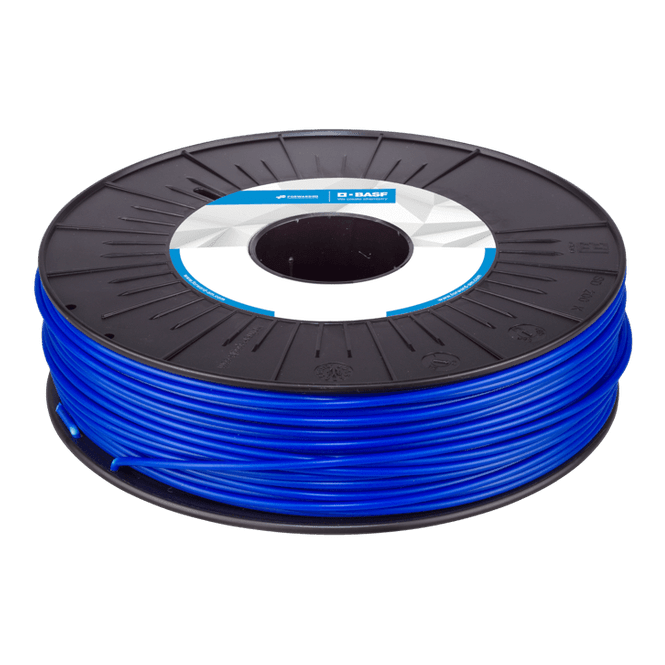

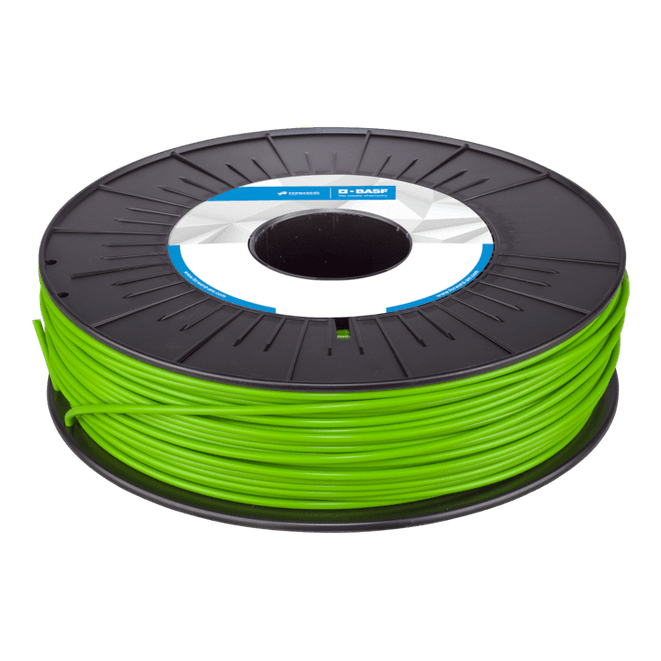

BASF Ultrafuse ABS – professional ABS filament

BASF Ultrafuse ABS is a strong, flexible filament with high temperature resistance. It is perfect for engineers, functional prototypes, and professional applications. Surfaces can be post-processed and smoothed with acetone. For optimal results, a heated print bed is recommended.

Highlights

• Very robust and durable
• High wear and chemical resistance
• Resistant to high temperatures
• Smoothable with acetone
• Ideal for technical applications

Printing recommendations

• Printing temperature: 230–255 °C
• Heated bed: 90–120 °C
• Printing speed: 30–70 mm/s
• Fan: 0–100 % (adjust to avoid warping)
• Adhesion: tape, sprays, or adhesive recommended

Material properties

• Tensile strength: 21.3 MPa (ZX), 36.3 MPa (XY)
• Flexural modulus: 1587 MPa (ZX), 1767 MPa (XZ), 1833 MPa (XY)
• Elongation at break: 1.8 % (ZX), 7.4 % (XY)
• Notched impact strength: 3.5 kJ/m² (ZX), 18.9 kJ/m² (XZ), 18.8 kJ/m² (XY)
• Unnotched impact strength: 7.2 kJ/m² (ZX), 35.7 kJ/m² (XZ), 40.0 kJ/m² (XY)
• Heat deflection temperature (HDT @ 0.45 MPa): 96 °C
• Specific gravity: 1.04 g/cm³ (ISO 1183)

BASF quality

Ultrafuse ABS is made from high-quality raw materials on state-of-the-art, computer-controlled systems. This guarantees consistently high quality – across batches. All BASF products are 100% traceable to the source.
