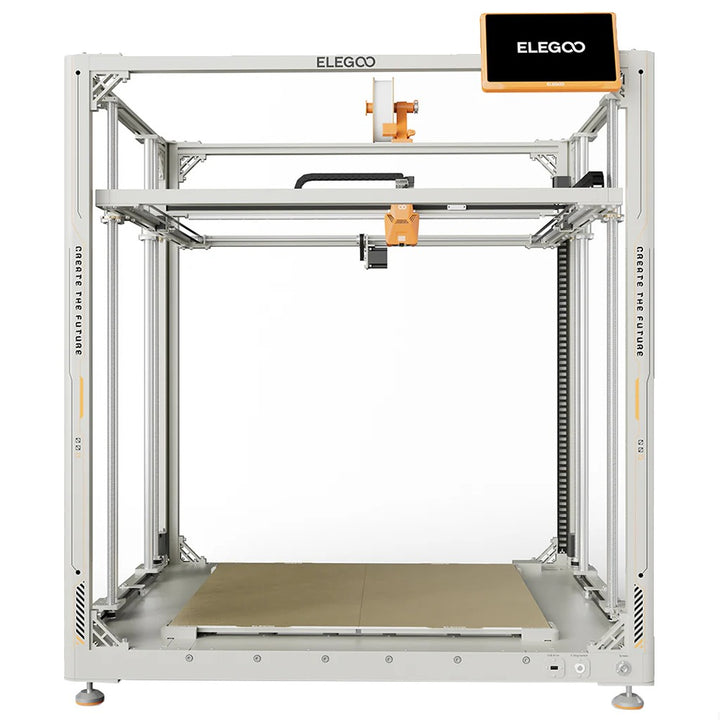

Elegoo OrangeStorm Giga

Elegoo OrangeStorm Giga – industrial class in XXL format

Maximum size. Maximum efficiency. Maximum control.

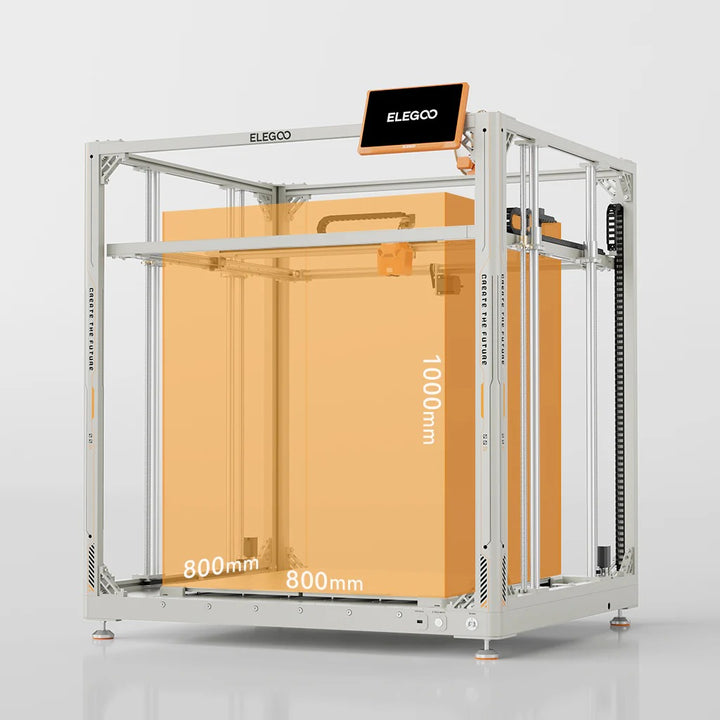

The Elegoo OrangeStorm Giga was developed to pick up where other 3D printers reach their limits. With a gigantic build volume of 800 × 800 × 1000 mm, intelligent multi-nozzle function, and a powerful heating and cooling unit, it is the ideal choice for industrial applications, prototyping, model making, or large-scale series production.

Industrial build volume for large projects without compromise

Thanks to its enormous print volume, even oversized models can be produced in one piece – without tedious segmenting or post-processing. Batch printing of multiple identical parts in one run is also easily possible, drastically reducing production times and making workflows more efficient.

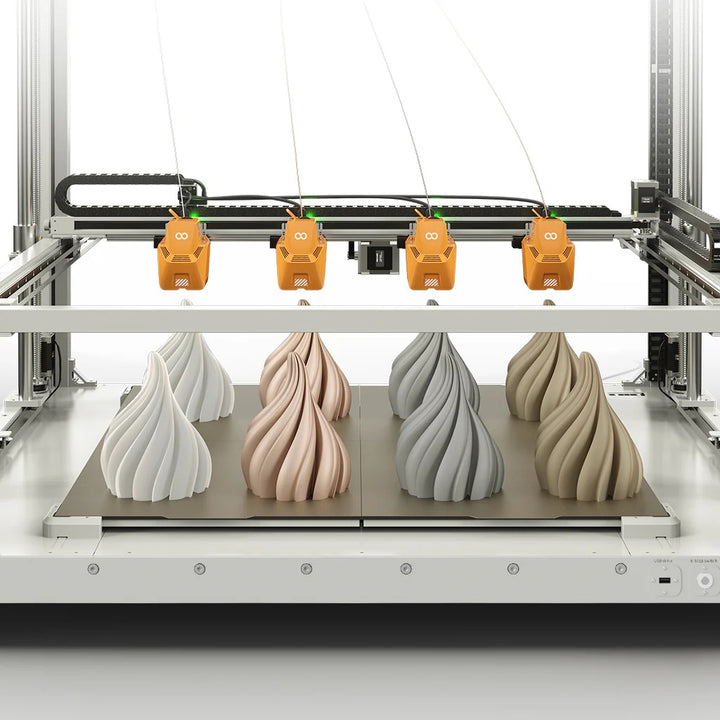

More colors, more parts – simultaneous printing with Multinozzle

With up to four active print heads on the X axis, the OrangeStorm Giga enables simultaneous printing of multiple models. Whether identical parts, different colors, or complex multicolor projects: the intelligent nozzle control maximizes your throughput – without compromising print quality.

Power meets control – well-thought-out heating and cooling system

The modular heated bed consists of four separately controllable zones with a PEI surface. These reach 100 °C in just 17 minutes and can be controlled automatically or manually – for targeted energy savings with full functionality. The process is supported by an intelligent cooling system with speed-controlled ball bearing fans, ensuring optimal layer cooling and minimal noise levels.

Speed meets precision

The integrated quad-core processor with 1.5 GHz clock speed delivers up to 300 mm/s printing speed – with a recommended 150 mm/s for highest detail accuracy. This enables six times higher productivity than conventional desktop FDM printers – while maintaining flawless surfaces.

Robust design for maximum durability

The design of the OrangeStorm Giga impresses with a stable all-metal frame structure and linear guides on the X and Y axes for absolute precision. The Z axis is equipped with reinforced trapezoidal screws and automatic leveling. Rubberized feet with steel cores provide additional vibration damping and a firm stand, even with massive components.

High-performance nozzle for precise extrusion

The included 0.6 mm nozzle is made of chrome-zirconium reinforced copper, supported by a 60-watt ceramic heating element and a dual-guided titanium extrusion. Optional nozzles (0.4 mm to 1 mm) are available depending on the desired level of detail and throughput. An integrated acceleration sensor provides automatic resonance compensation, while the PID temperature management delivers consistently stable results.

Elegoo OrangeStorm Giga – When 3D printing has to be more than standard

The OrangeStorm Giga is more than just big – it is built for productive, precise, and powerful large-scale 3D printing processes. For workshops, development teams, manufacturing companies, and anyone who accepts no limits.
