E3D Revo Ultra High Temp Hotside - PT1000 - Standalone Kit

E3D Revo Ultra High Temp Hotside - PT1000 - Standalone Kit

The E3D Revo Ultra High Temp Hotside (HTX) is the perfect solution to upgrade Revo printers to high temperatures and reliably print materials like PEEK or PEI. The kits offer exceptional performance, abrasion resistance, and compatibility with various printer models.

Key Features

1. Maximum Temperature:

   • 400°C/500°C, depending on the heating cartridge used.
   • Optimal for high-temperature filaments like PEEK and PEI.

2. Material Compatibility:

   • PEEK, PEI, and other demanding engineering plastics.

3. HTX Nozzles:

   • Hardened steel nozzles with copper segment for improved heat transfer.
   • Coated with chromium nitride for maximum abrasion resistance.

4. Components:

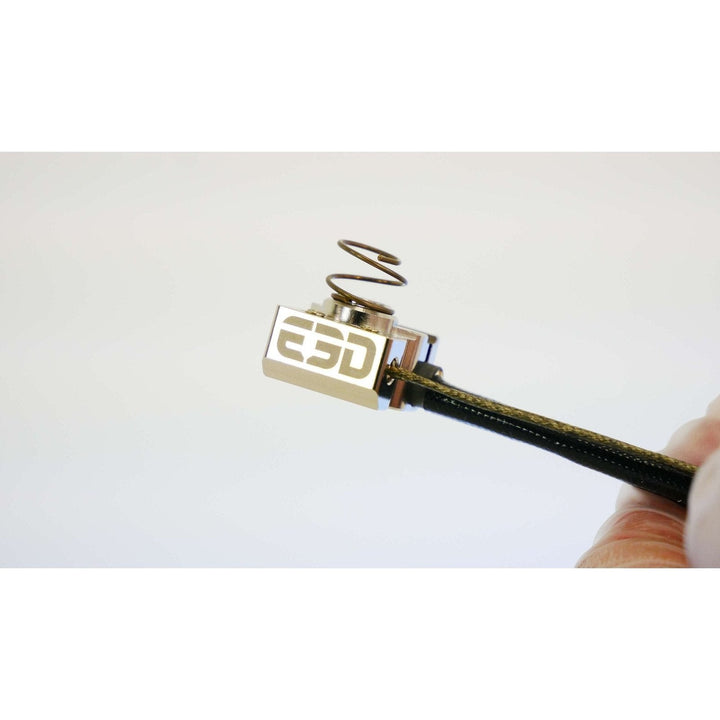

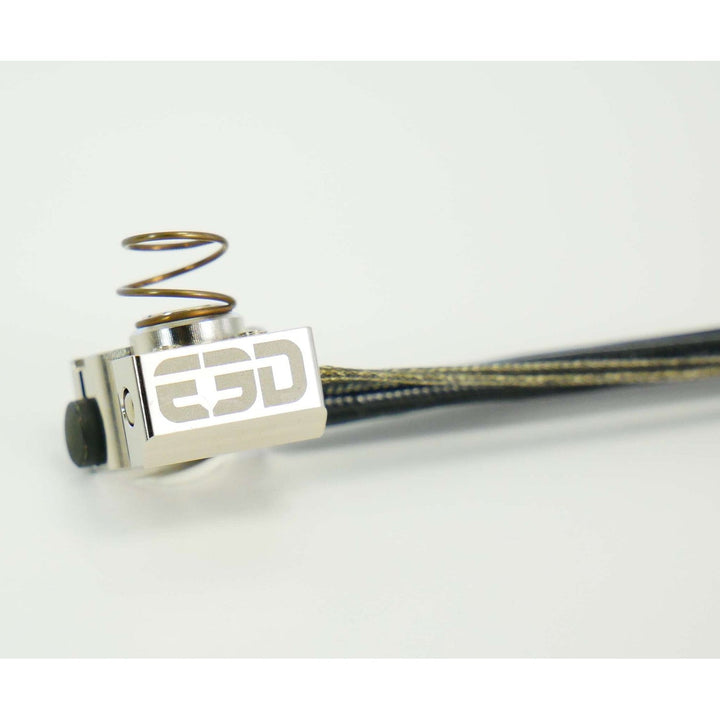

   • HT Block (High Temperature Heating Block).
   • PT1000 or PT100 temperature sensor.
   • High-Precision (HT) or Ultra High Temperature (UHT) heating cartridge.
   • Revo spring for secure mounting.
   • Nozzle kits for precise work with different nozzle sizes.

5. Voltage and power:

   • 24V system.
   • Heating power of 40W or 65W.

Scope of delivery

• Standalone Kit:

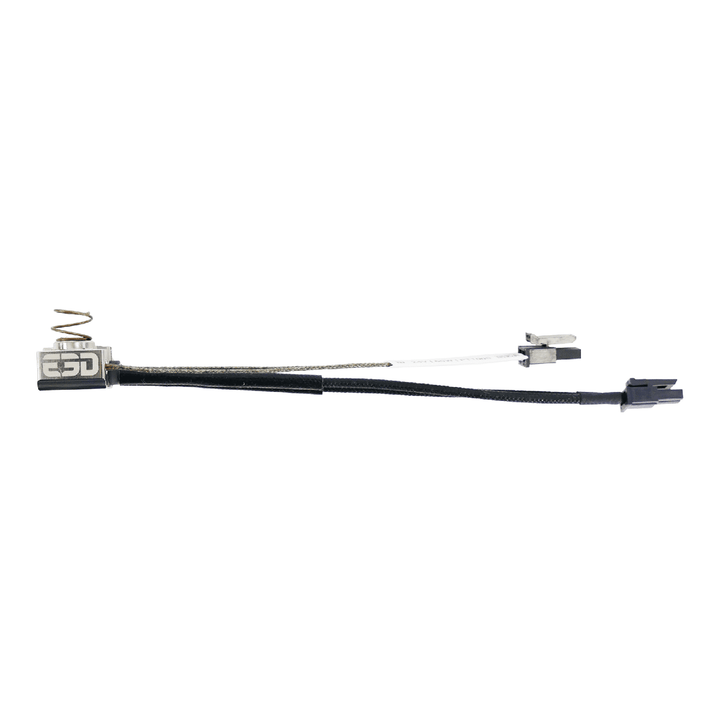

  • Includes the hotside basic components (heater block, sensor, heating cartridge, spring).
• Single Nozzle Kit:
  • Additionally, a 0.4mm Revo HTX nozzle.
• Fully Loaded Kit:
  • Complete nozzle set (0.25mm, 0.4mm, 0.6mm, 0.8mm) for versatile applications.

Compatibility

Fits the following Revo systems:

• Revo Micro, Six, Voron, Creality, Hemera XS, Prusa MK3/Mini, MicroSwiss NG, Biqu H2 V2, LGX

Notes

• Not compatible with V6 heater blocks.
• An amplifier board may be required for PT100.
• Z-offset should be adjusted after nozzle change.
• Recommendation: Do not use abrasive materials with 0.25mm nozzles, as this increases the risk of clogging.

The Revo Ultra High Temp Hotside offers innovation and quality for highly precise and reliable printing at extreme temperatures – ideal for demanding applications!
