Revo PZ Probe for Voron Stealthburner

E3D Revo PZ Probe Voron

Revo PZ Probe™ Voron Coldside

The Revo PZ Probe™ Voron was specially developed for use with the Voron Stealthburner and integrates a bed leveling system into a Revo Voron heatsink. This converts your Revo nozzle into a bed sensor without changing the shape.

Simple PZ Probing

The PZ Probe is a piezoelectric element that converts vibrations into electrical signals and is activated upon contact between the nozzle and the print bed. With the PZ Probe, you only need to calibrate your Z offset once to account for the flexibility of your motion system. After that, you can simply screw in a new nozzle by hand, and the PZ Probe does the rest for you – simply PZ!

Lightweight

Weighing under 40 g, including heatsink and cables, the PZ Probe is significantly lighter than any other combination of Stealthburner toolhead and bed leveling sensor.

Perfect First Layer

Using the Revo nozzle as a sensor ensures a precise bed leveling mesh, resulting in a clean first layer – the prerequisite for any successful 3D print.

Easy Integration

The only new part you need to add to your existing Stealthburner setup is a flat flex cable. More information about this simple step can be found on our blog. Note that you will need two additional printed parts if you use the SteveBuilds mount.

Compatibility

The Revo PZ Probe Voron is compatible with the Voron Stealthburner. Please read the datasheet thoroughly before installing the PZ Probe.

Perfect Combination with Your Hotside

Combine your Revo Voron Coldside with one of E3D’s carefully curated hotside packages to ensure your printing needs are met right out of the box. All hotside packages include heaters, sensors, and a variety of nozzles for quick swapping.

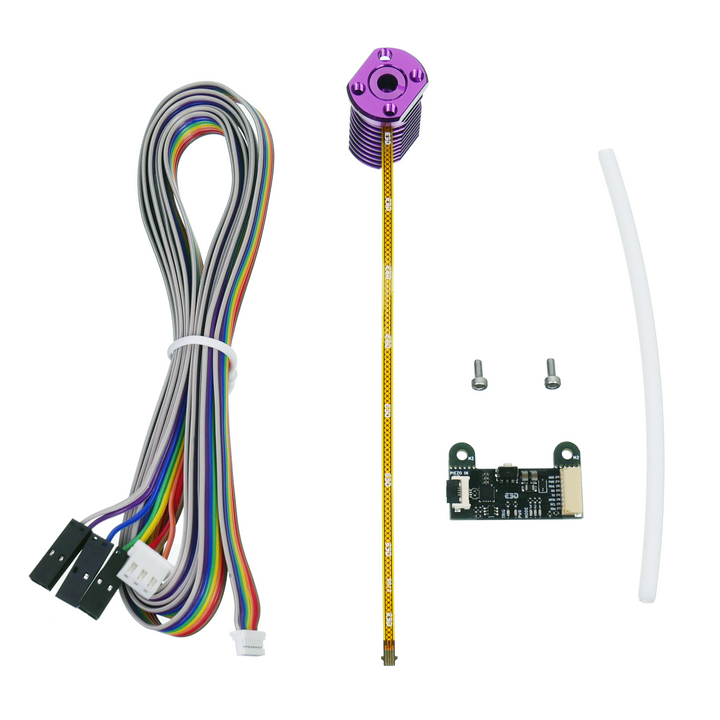

Scope of Delivery

• 1 x Revo Voron heatsink with integrated piezo
• 1 x PZ Probe board
• 1 x extension cable
• 2 x M2 mounting screws for the board
• 1 x Bowden tube
