E3D Revo LGX Extruder – 24 V – Complete Nozzle Set

The Revo LGX is a state-of-the-art extrusion system that combines the advantages of the Revo Micro Hotend and the LGX extruder from Bondtech. It enables a consistent filament flow for high-quality prints and is suitable for both direct and Bowden applications.

Highlights

• Max. Temperature: 300 °C
• Weight: 30 g
• Nozzle Type: RapidChange Revo
• Mounting: M12 x 1.5 thread with adapter and extruder

Features of the Revo LGX

1. Revo Micro Hotend:

   • Compact and lightweight for improved thermal performance.
   • Prevents heat buildup even during longer print jobs.
   • Fast nozzle change without tools or hot tightening.

2. LGX Extruder:

   • Large gear design for high torque and precision.
   • Robust construction for smooth filament feeding and minimal clogging risk.
   • Supports abrasive, flexible, and rigid materials.

Technical Details

• e-Steps: 400 (16 microsteps); 800 (32 microsteps)
• Drive Gears: Hardened steel
• Mounting Pattern: M3 screw holes, versatile mounting options (front, back, and side surfaces)
• Maximum Torque for Screws: 0.3 Nm

Fast Nozzle Change with Revo Nozzles

• Nozzle and heatbreak in one piece: No risk of material leaks.
• Compatible with standard, high-flow, and abrasive nozzles.

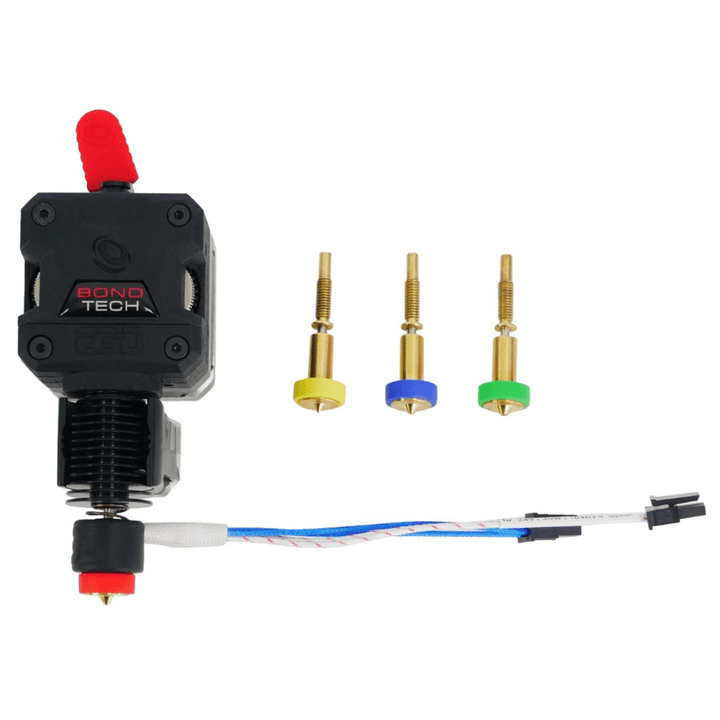

Scope of Delivery

• 1 x LGX Extruder
• 1 x Revo Micro Hotend
• 1 x MJF-3D printing adapter
• 3 x Nozzles: 0.4 mm, 0.6 mm, 0.8 mm (brass)

Notes:

• The fan of the Revo Micro must be connected via a 5V regulator unless a 5V pin is used directly.
• Adjustments of the Z-offset may be required when changing the nozzle.

This system is ideal for users seeking the highest precision and versatility in filament processing.
