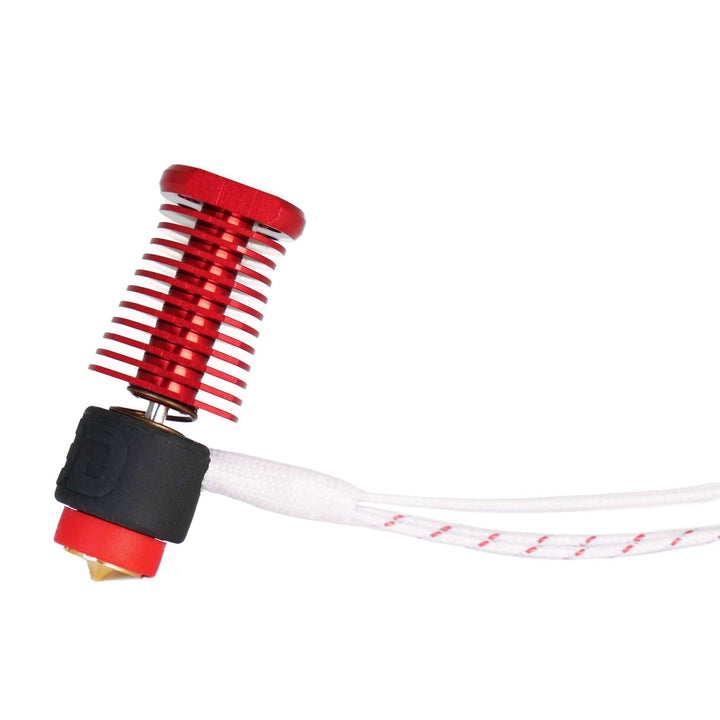

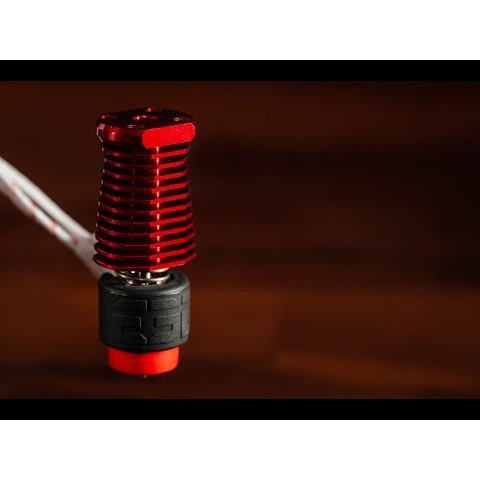

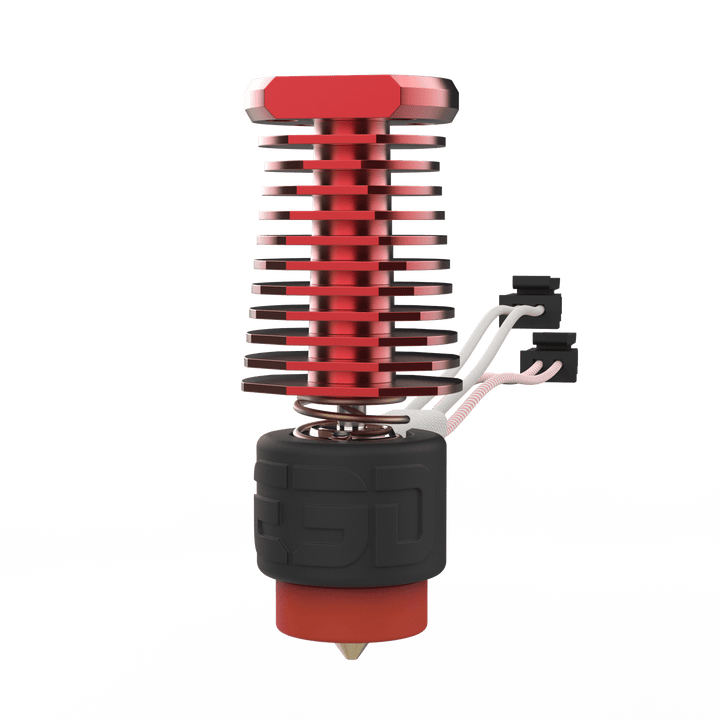

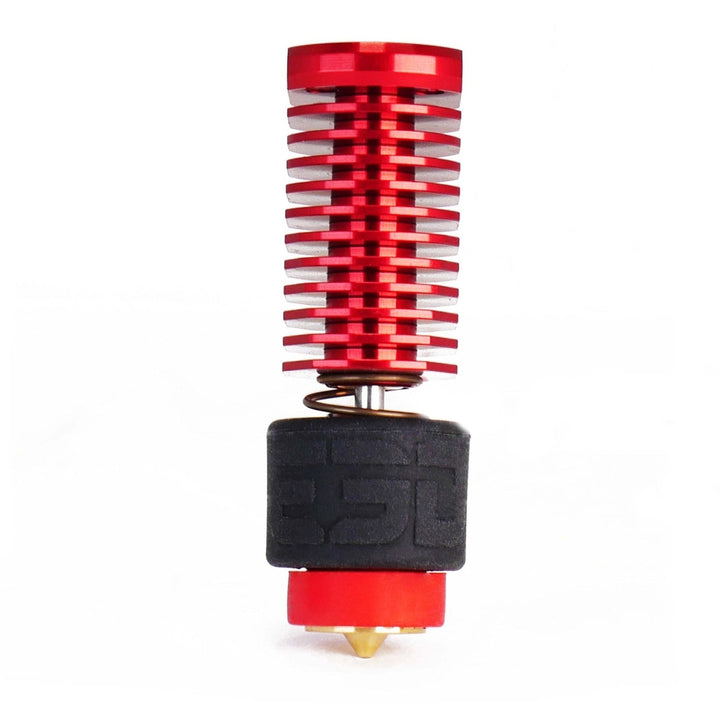

E3D RapidChange Revo Voron - 1.75mm, 12V – Complete Nozzle Set

Revo Voron – The High-Performance HotEnd for Voron 3D Printers

Discover the Revo Voron, the preferred HotEnd for your Voron 3D printers. Developed in collaboration with Team Voron, this state-of-the-art extrusion system offers seamless integration and maximum performance for demanding print projects.

Main Features:

• Maximum Temperature: 300 °C
• Weight: 30 g
• Nozzle Type: RapidChange Revo
• Mounting: M12 x 1.5 thread with Revo Micro adapter and extruder

Why Revo Voron?

1. World-Class Extrusion System:

• Revo Micro: Ensures a smooth and consistent filament flow, resulting in high-quality prints every time. The lightweight and compact design offers excellent thermal performance, reduces heat-up times, and prevents heat buildup even during long print jobs.
• Bondtech’s LGX Extruder: Known for its large gear design, the LGX extruder delivers outstanding torque and precision. It can handle a variety of filament types and provides excellent grip, ensuring error-free and reliable filament feeding. The robust construction reduces clogging risk and improves overall print quality.

2. Fast Nozzle Change:

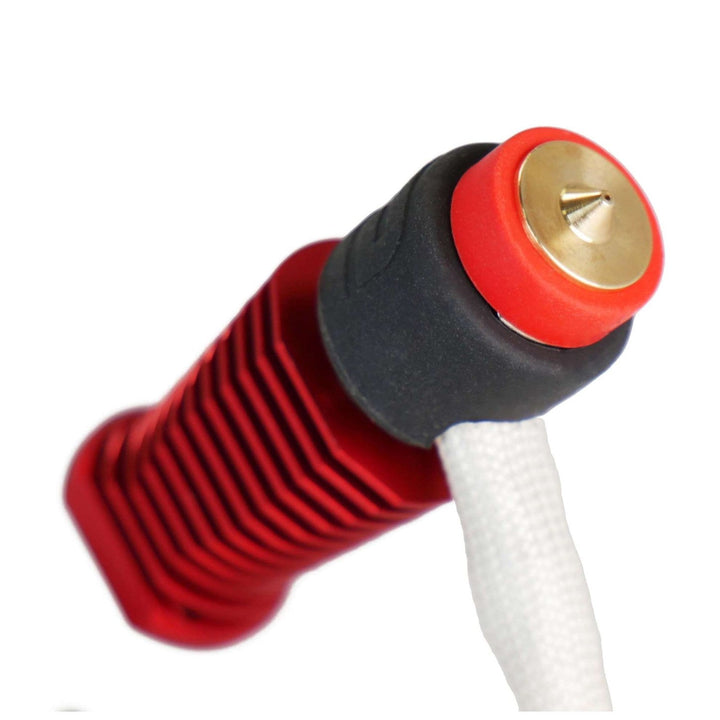

• RapidChange Revo Nozzles: Change nozzles effortlessly at room temperature using just your fingers. No complicated tools or hot tightening needed. The factory-sealed nozzle and heatbreak are one piece, preventing material leaks during use. Available in a wide range of standard, high-flow, and abrasive nozzles.

3. Powerful Core:

• Revo HeaterCore: Heats up in seconds. Thanks to the positive temperature coefficient (PTC), there is no risk of melting at extreme temperatures: power decreases as temperature rises, minimizing hazards in case of thermal runaway.

4. Robust and Precise Construction:

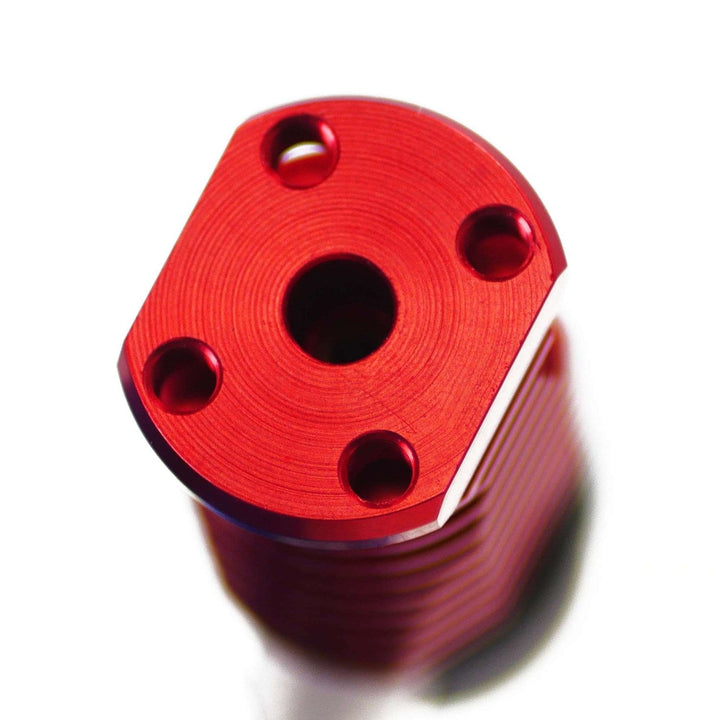

• Rigid Mounting: Secure mounting with four M3 x 0.5 screws, ensuring stable attachment to the Voron 3D printer.
• Ultra-Lightweight Design: Enhanced speed performance through a lightweight design.

Technical Specifications: Property Details Max. Nozzle Temperature 300 °C Weight 30 g Nozzle Type RapidChange Revo Mounting M12 x 1.5 thread with Revo Micro adapter Compatibility Voron 1, Voron Trident, Voron Switchwire, Voron 2.4, Voron Legacy, Voron 0.1 e-Steps Value 400 at 16 microsteps; 800 at 32 microsteps Drive Gears Hardened steel Material Compatibility Abrasive, rigid, semi-flexible, flexible, and soft Mounting Pattern M3 screw holes: bottom front (2 points), left (2 points), right (2 points), front (4 points), rear (4 points) Cavity Depth: Sides: 5 mm; bottom: 12 mm Maximum Torque 0.3 Nm Smart Features:

• Fast Nozzle Change: Change nozzles cold without tools or hot tightening.
• Compatible with Revo HeaterCore: For faster heat-up times and improved performance.
• Rigid Mounting: Secure and reliable mounting for precise printing.
• Lightweight Design: Promotes improved speed and performance.
• Open-Source Design: The cold side design is licensed under GPL V3, allowing customization and extensions.

Package Contents:

• 1 x Revo Voron Sink
• 1 x Revo HeaterCore (12V or 24V)
• 1 x Revo Spring
• 1 x 100 mm 1.75 mm PTFE
• 1 x Heater Extension Cable
• 1 x Temperature Sensor Extension Cable
• Single Nozzle Kit:
  • 1 x 0.40 mm brass Revo nozzle

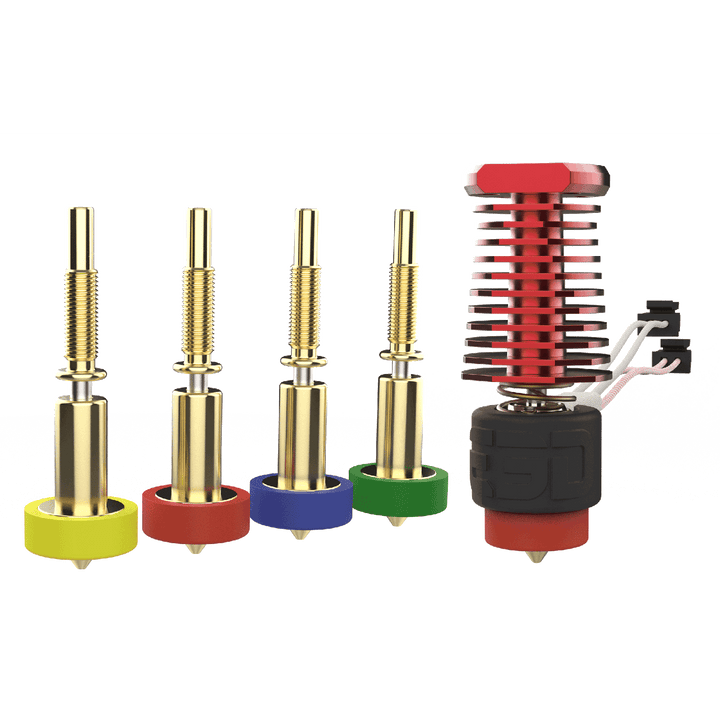

• Fully Loaded Nozzle Kit:
  • 1 x 0.25 mm brass Revo nozzle
  • 1 x 0.40 mm brass Revo nozzle
  • 1 x 0.60 mm brass Revo nozzle
  • 1 x 0.80 mm brass Revo nozzle

Special Notes:

• The Revo Micro fan must be connected via a 5V regulator unless connected directly to a 5V pin.
• When changing nozzles, a Z-offset adjustment may be necessary.
• Compatible with both Bowden and direct drive systems.

Why Choose Revo Voron?

The Revo Voron offers an unbeatable combination of speed, precision, and user-friendliness. Thanks to collaboration with Team Voron and integration into the Revo ecosystem, this HotEnd is the perfect choice for all Voron 3D printers. Whether you are an experienced professional or a creative hobbyist, the Revo Voron ensures smooth, reliable, and high-quality print results.

Experience the next generation of 3D printing technology with the Revo Voron – for precise, fast, and versatile prints without compromise!
