E3D RapidChange Revo Brass 0.15 mm Nozzle 1.75 mm

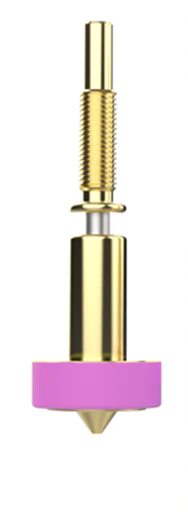

E3D RapidChange Revo™ Brass 1.75mm 0.15mm nozzle

The Revo™ Brass nozzle (1.75 mm filament, 0.15 mm opening) enables pinpoint printing: quickly interchangeable, precisely marked, and pre-assembled for worry-free printing.

Main advantages

• Free to experiment: Easy nozzle changes enable both ultra-fine and very wide extrusion widths – ideal for efficiently producing both high-resolution small parts and large print objects.
• Frustration-free: Each Revo nozzle is delivered as a pre-assembled unit with heatbreak, so no hot tightening or faulty assembly is necessary. This reduces hotend leaks and ensures reliable print results.
• Quick identification: Color-coded silicone socks and engraved size markings allow immediate recognition of the nozzle size without risk of confusion.
• Expandable range: The RapidChange system was designed to support a wide range of nozzle sizes and variants; further versions are planned.

Technical notes

• Material: brass.
• Filament diameter: 1.75 mm; nozzle opening: 0.15 mm.
• Revo™ nozzles are not compatible with V6-style heater blocks.
• When changing the nozzle, an adjustment of the Z-offset may be necessary.

Suitable for whom

This precise 0.15 mm Revo nozzle is ideal for users who want to achieve finely detailed prints with 1.75 mm filament, while not giving up the convenience of a quickly changeable, pre-assembled nozzle system.
