E3D DiamondBack HotEnd for Bambu Lab A1 / A1 Mini
- Echte Diamantspitze für nahezu unbegrenzte Lebensdauer
- Perfekte Druckqualität auch mit abrasiven Filamenten
- Werkzeugloser Magnetwechsel – sofort einsatzbereit ohne Kalibrierung
SKU: P7065S | EAN: 5063384004915

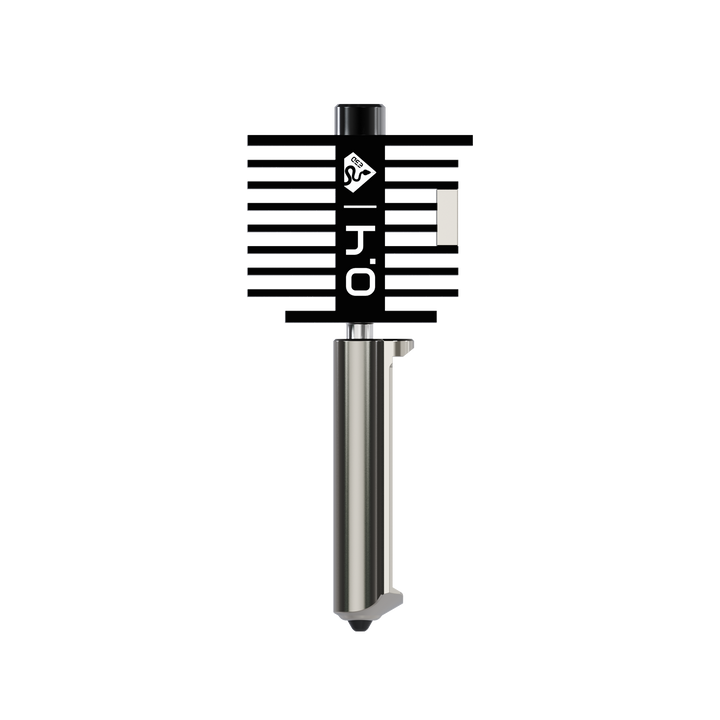

E3D DiamondBack HotEnd for Bambu Lab A1 / A1 Mini
The E3D DiamondBack HotEnd is the ultimate premium upgrade for the Bambu Lab A1 and A1 Mini. Developed in collaboration between E3D, DiamondBack, and Bambu Lab, it was created to withstand even the toughest 3D printing demands. The core of the system is a massive nozzle with polycrystalline diamond tip (PCD) – extremely wear-resistant, thermally conductive, and precise. This ensures the HotEnd consistently delivers flawless print results, even with highly abrasive filaments.
Extreme durability – designed for abrasive materials
Diamond is the hardest known material in the world – and that’s exactly what’s inside the DiamondBack HotEnd.
Thousands of microscopic diamond crystals are bonded into an indestructible tip using a special bonding process.
This nozzle withstands metal-filled, ceramic, and fiber-reinforced filaments that would wear out conventional nozzles within hours.
Precision at the highest level

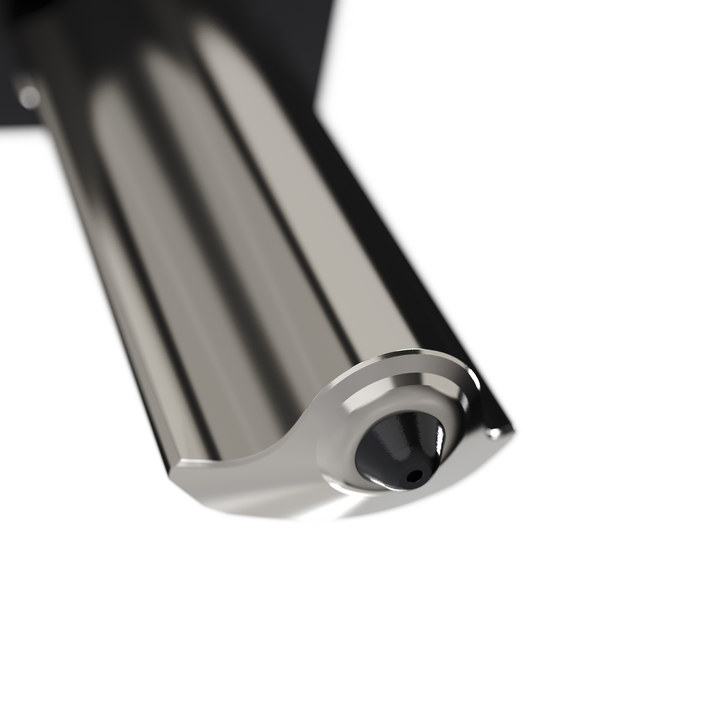

The polished diamond tip ensures exceptionally smooth extrusion and consistent layer adhesion.
Results are sharp edges, clean top layers, and brilliant surface quality – even during long print times.
Thanks to the high thermal conductivity of diamond, melt stability is also improved, leading to stronger bonds between layers.
Maintenance-free and durable
While brass or steel nozzles need to be replaced after some time, the DiamondBack HotEnd is designed for continuous operation.
Under normal printing conditions, the diamond nozzle lasts virtually indefinitely – saving you costs, time, and avoiding unnecessary waste in the long run.
Simple, tool-free replacement
The HotEnd is fully pre-assembled and features a magnetic quick-release with integrated heating and temperature wiring.
The replacement takes only a few seconds:
Remove old HotEnd – insert DiamondBack – and continue printing immediately.
No calibrations or firmware adjustments required.
Why DiamondBack?
-
Highest wear resistance thanks to genuine diamond tip (PCD)
-
Consistent print quality even with abrasive specialty filaments
-
Optimal heat transfer for strong layer adhesion
-
Seamless integration into Bambu Lab A1 / A1 Mini
-
No adjustment needed, ready to print immediately
-
Long-term investment – a HotEnd for eternity
Compatibility
| Feature | Description |
|---|---|
| Compatible with | Bambu Lab A1, Bambu Lab A1 Mini |
| Not compatible with | Bambu Lab H2 Series |
| Maximum Temperature | 320 °C |
| Nozzle material | Polycrystalline diamond (PCD) |
| Body material | High-quality E3D HotEnd assembly |
| Mounting | Magnetic, drop-in installation |
| Recommended nozzle diameters | ≥ 0.4 mm with fiber- or particle-filled materials |
| Maintenance | Maintenance-free, no regular nozzle changes needed |
Conclusion
The E3D DiamondBack HotEnd is the permanent solution for wear-free precision in 3D printing.
Whether carbon, fiberglass, or metal filament – this HotEnd consistently delivers perfect results and lasts longer than any conventional nozzle.
A true high-end upgrade for those seeking uncompromising quality and durability.
