CreatBot PEEK-300

Unmatched performance for high-temperature 3D printing

Tailored printing results for demanding materials

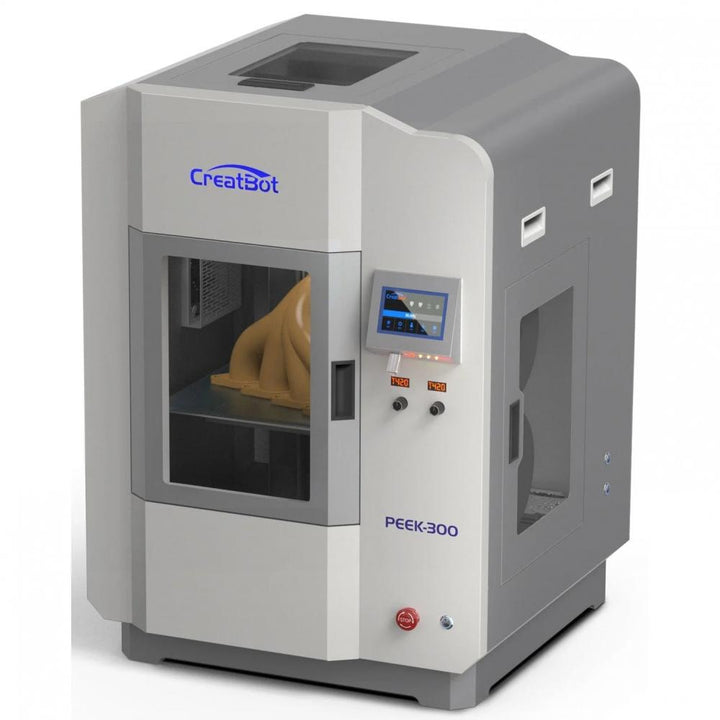

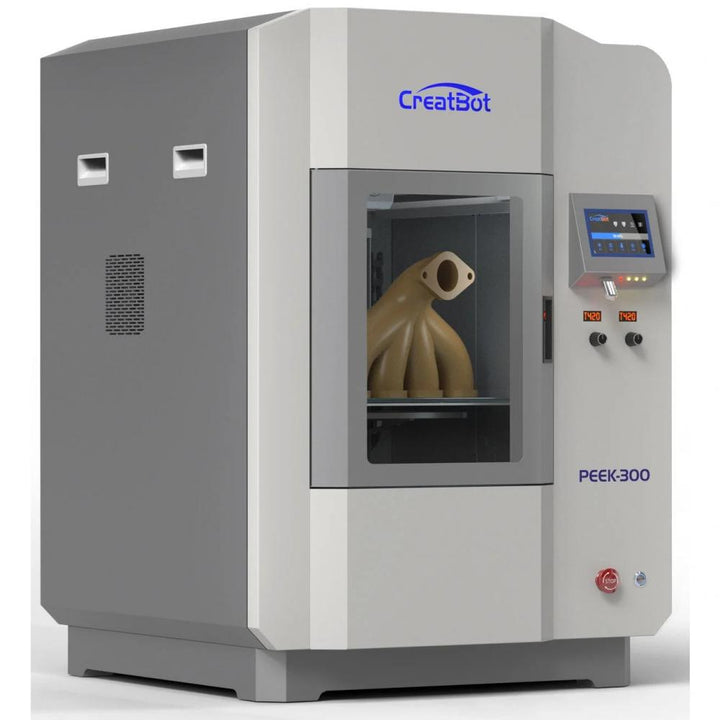

The CreatBot PEEK-300 is the ultimate 3D printer for professionals who want to process high-performance materials like PEEK and PEI. With a maximum nozzle temperature of 500 °C and a heated build chamber of up to 120 °C, this 3D printer enables precise and safe printing of even the most demanding materials. Thanks to its ability to process filaments such as PEEK, PEKK, and other thermoplastic materials, the PEEK-300 stands out as the perfect solution for industrial applications requiring high mechanical properties and heat resistance.

Innovative cooling system for highest reliability

Optimal temperature control for consistent results

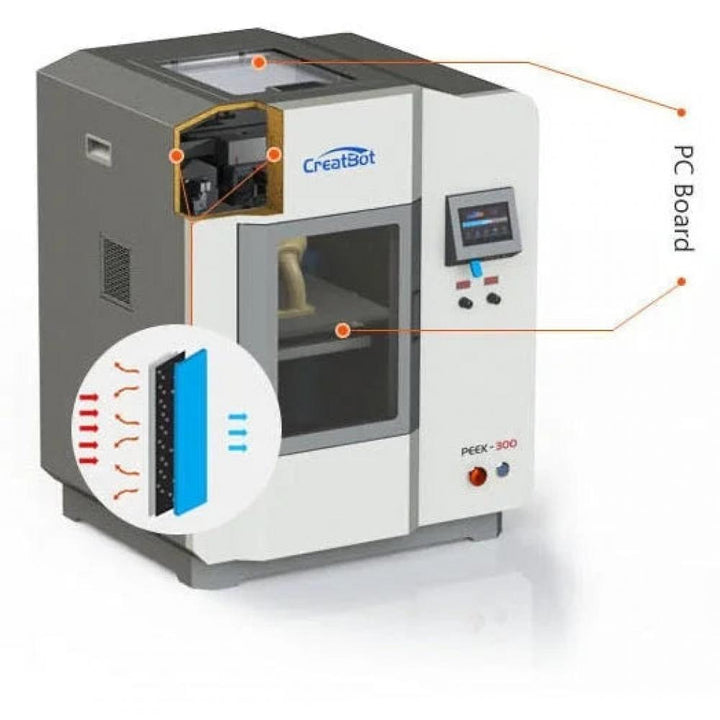

The unique combination of liquid and air cooling makes the PEEK-300 a true masterpiece of engineering. The advanced liquid cooling system ensures that the hotend temperature remains stable throughout the entire printing process, which is essential especially for high-temperature materials. The additional air pump cooling system, which draws cooler air from outside the printer, guarantees even more efficient heat dissipation and prevents overheating. This sophisticated temperature control ensures that each print layer is applied perfectly, resulting in high-quality and flawless end products.

Maximum productivity through intelligent features

Seamless printing processes without interruptions

The CreatBot PEEK-300 is not only powerful but also extremely user-friendly and reliable. With features like the filament detection system and automatic print resume after a power outage, this 3D printer guarantees continuous workflows without unnecessary downtime. If the filament runs out during printing, the printer automatically pauses and allows easy material replacement. Additionally, the PEEK-300 saves the last known position during a power failure so that the printing process can be seamlessly resumed once power is restored.

Construction and Technical Details Category Details Usable Nozzle Type MK8 Usable Filament Diameter 1.75 mm Maximum Nozzle Temperature 500 ºC Open Filament System Yes Extruder Type Direct Drive Recommended Maximum Print Speed 150 mm/s Build Volume 300 mm x 300 mm x 400 mm Dual Build Volume 300 mm x 300 mm x 400 mm Maximum Build Plate Temperature 200 ºC Build Plate Surface Carbon Fiber Plate, Removable Build Plate Material Glass Build Plate Attachment Fixed Build Plate Leveling System BL-Touch Build Chamber During Process Open or Closed Heated Build Chamber Yes, max 120°C Filament Chamber Closed Yes Number of Extruders 2 Extruder Construction Type Dual Head with Electronic Lifting System Installation Space / Requirements Overall Dimensions (L x W x H) 650 mm x 600 mm x 750 mm Total Weight 100 kg Ambient Temperature (Operation) 15°C - 32°C Maximum Power Consumption 4600 W Voltage AC: 200 V - 240 V (50-60 Hz) Features Emergency Shutdown Yes HEPA Filter Yes Filament Sensor Yes Power Failure Protection Yes Touchscreen Yes Camera Yes Connectivity USB Port Yes Wi-Fi No Accuracy Layer Height 0.04 - 0.5 mm Resolution 0.04 mm Shipping Shipping Box (L x W x H) 820 mm x 650/720 mm x 1080 mm Shipping Weight 130 kg
