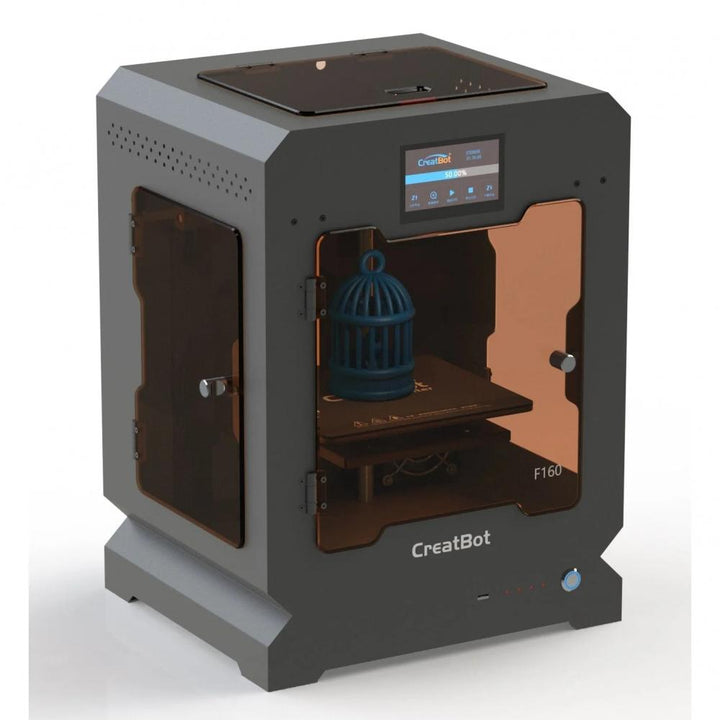

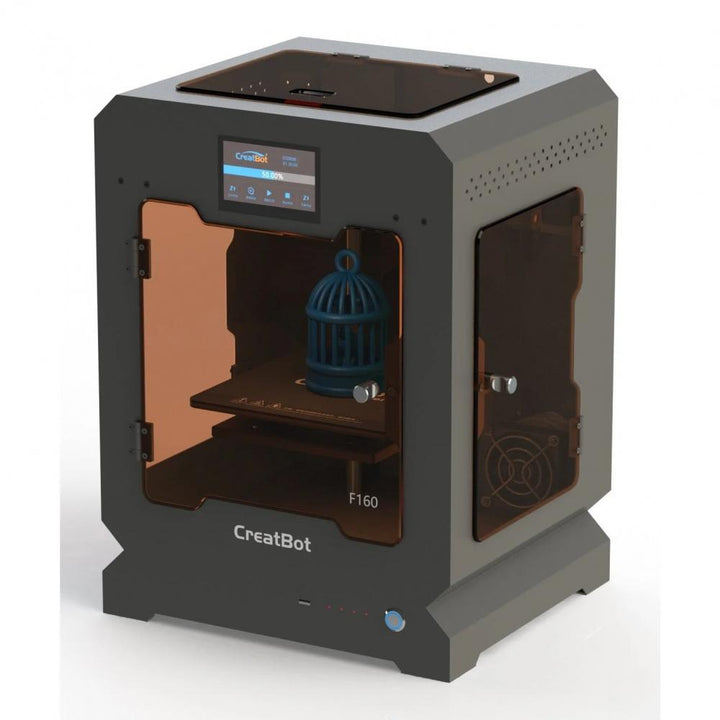

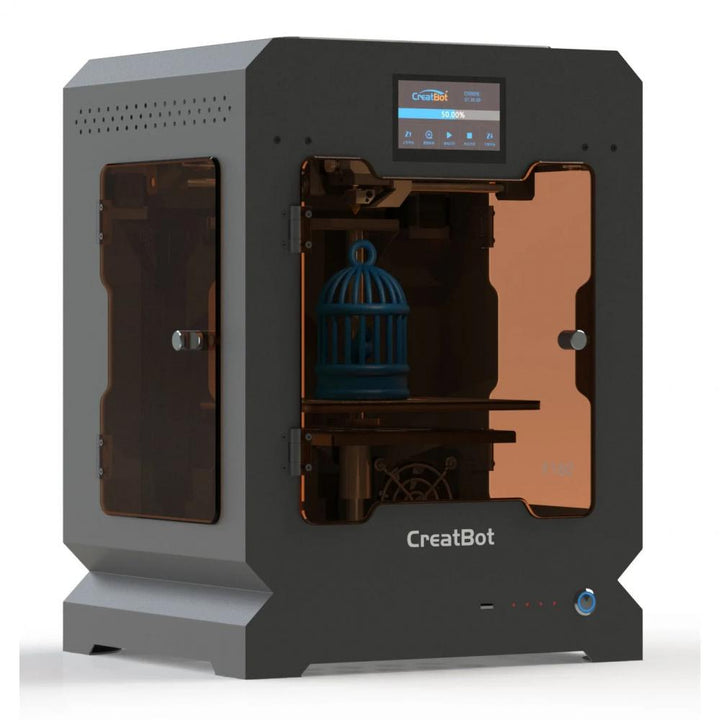

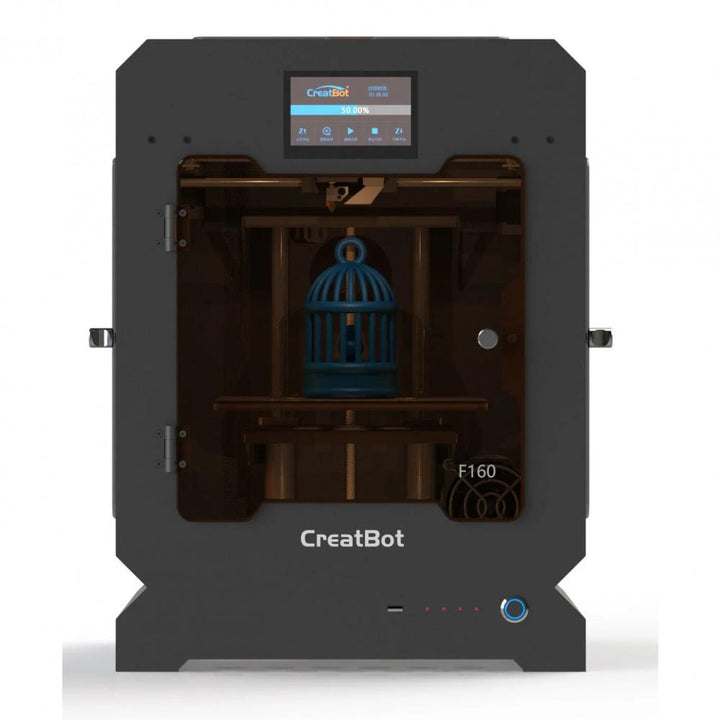

CreatBot F160 - PEEK Version

High-temperature 3D printing: Expand your material possibilities

With the CreatBot F160, new horizons open up for high-temperature 3D printing. Thanks to a nozzle temperature of up to 420°C, you can process a wide range of high-performance thermoplastics, such as ABS, nylon, PC, and carbon fiber. This temperature variety allows you to implement demanding projects that require the highest thermal and mechanical resistance. The customizable hot-end also allows you to work with experimental filaments and test the limits of additive manufacturing. The F160 is thus the ideal choice for engineers, designers, and companies who want to play in the top class of 3D printing with advanced materials.

Highest precision & speed: Outstanding quality at every layer

Experience the precision and speed that the CreatBot F160 has to offer. With a resolution of up to 0.04 mm, this 3D printer guarantees finely detailed production, which is especially suitable for complex models and functional prototypes. The specially developed extruder feed ensures a stable filament flow that prevents clogging and guarantees a continuous printing process. Thanks to a maximum printing speed of 120 mm/s, you can produce quickly and efficiently without compromising on quality. This makes the F160 an indispensable tool for everyone who values precise and fast manufacturing.

Robust stability & user-friendliness: Durability and easy operation

The CreatBot F160 is characterized by a stable all-steel housing, which not only increases printing stability but also significantly extends the device's lifespan. Its optimized structure ensures sustainable and efficient operation, even after many years of intensive use. The fully enclosed build chamber design minimizes external disturbances and reduces noise while maintaining a constant room temperature – ideal for demanding materials like ABS and nylon. With a user-friendly touchscreen that enables easy operation and intelligent features such as automatic print resume after a power failure and filament detection, the F160 offers a smooth and stress-free printing experience. Perfect for professionals who appreciate reliability and durability.



Construction and technical details Category Details Usable nozzle type MK8 Usable filament diameter 1.75 mm Maximum nozzle temperature 420 ºC Open filament system Yes Extruder type Direct drive Recommended maximum printing speed 300 mm/s Build area 160 mm x 160 mm x 200 mm Maximum build plate temperature 150 ºC Build plate surface BuildTak Build plate material Aluminum plate Build plate attachment Fixed Build plate leveling system Manual leveling Build chamber during process Open or closed Heated build chamber Yes, max 70°C Number of extruders 1 Installation space / requirements Overall dimensions (L x W x H) 320 mm x 370 mm x 490 mm Total weight 18 kg Ambient temperature during operation 15°C - 32°C Maximum power consumption 340 W Voltage AC: 100 V - 230 V (50-60 Hz) Equipment HEPA filter No Filament sensor Yes Power failure protection Yes Touchscreen Yes Connectivity USB port Yes Wi-Fi No Accuracy Layer height 0.01 - 0.5 mm Resolution 0.04 mm Shipping Shipping carton 420 mm x 470 mm x 600 mm Shipping weight 25 kg
