CreatBot D1000 HS

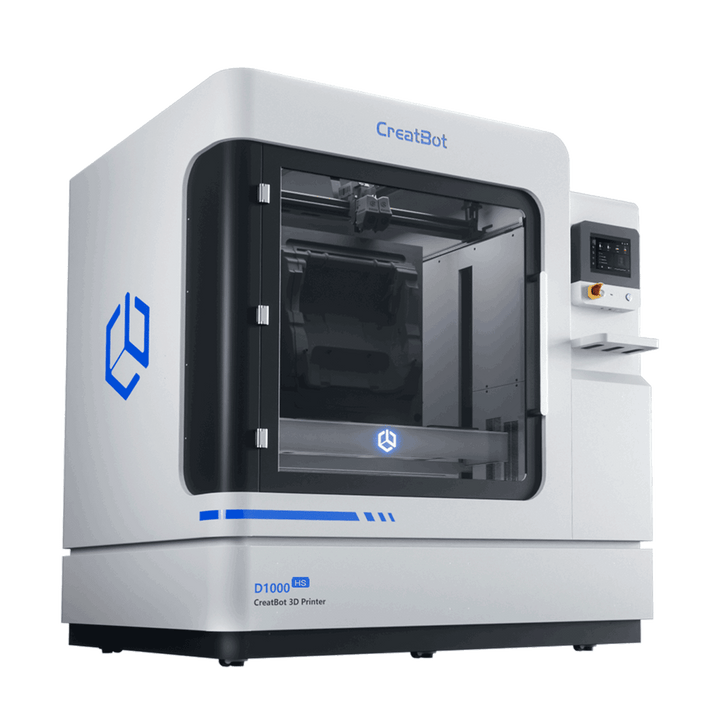

CreatBot D1000 HS – The Industrial Large-Format 3D Printer

The CreatBot D1000 HS is a highly advanced industrial 3D printer specifically designed for large-format prototypes and end-use applications. With an impressive build size of 1000 × 1000 × 1000 mm, it enables the production of oversized parts from technical materials. The integration of Klipper firmware and advanced technology makes it one of the fastest and most powerful machines in its class.

Main Features 1. Extremely High Speed and Precision

• Klipper Firmware: Optimized for high-speed printing with stable 300 mm/s.

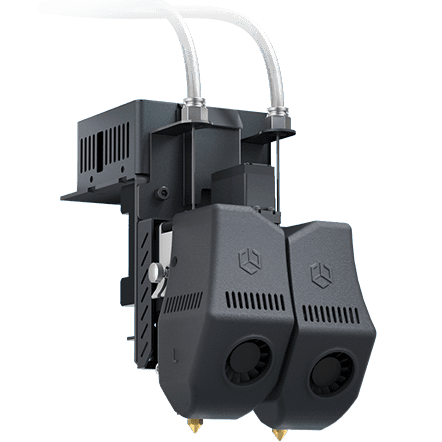

• Print head with 90 mm³/s flow rate: Record-breaking speed for fast manufacturing.
• High-resolution layers: Up to 0.05 mm for detailed results.

2. Extended Material Compatibility

• Supports materials such as PLA, ABS, Nylon-CF, PET-CF, UltraPA-CF and many more.
• Extruder temperature up to 420 °C: Ideal for high-performance polymers and fiber-reinforced materials.

3. Large-Format Printing Without Compromise

• 1000 mm³ build volume: Perfect for prototypes, tools, and end-use applications.

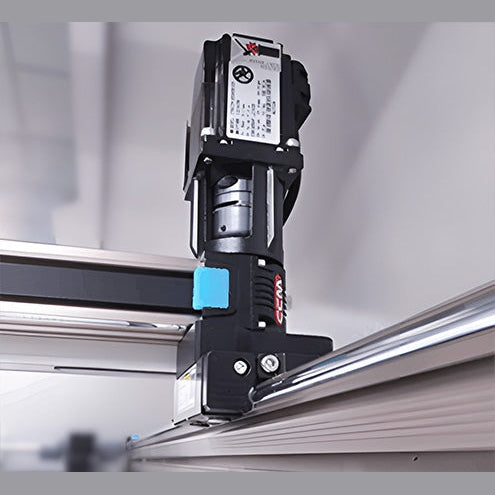

• Strong linear guides and servomotors: Ensure precision and stability with large print head travel.

4. Modern Features for High Reliability

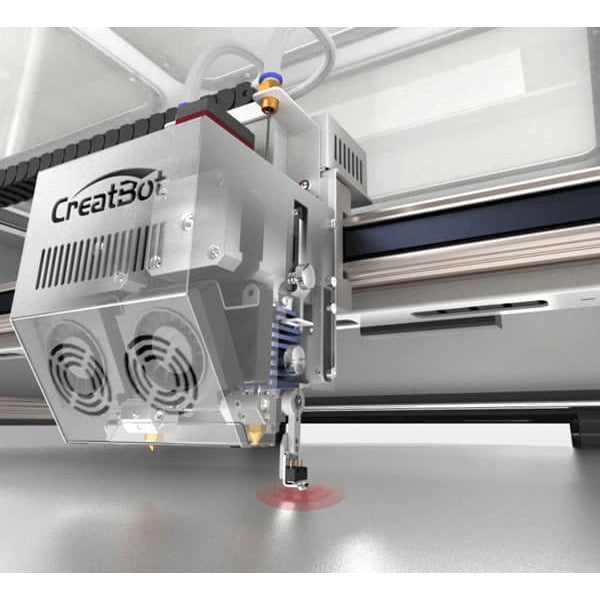

• Automatic platform leveling: 100 measurement points for precise alignment.
• HEPA filter: Ensures clean air, ideal for sensitive environments.
• Hot chamber up to 70 °C: Optimized for high-strength materials, reduces warping.

5. User-Friendliness and Control

• 10-inch color touchscreen: Intuitive control.

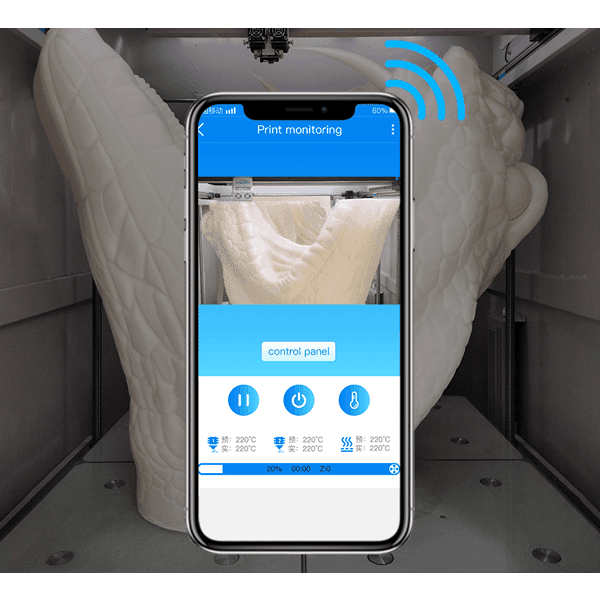

• Camera monitoring and APP control: Monitor and control print processes in real time.
• Power failure protection: Secures print progress during power outages or filament end.

Applications 1. Prototype Manufacturing

• Creation of realistic design and functional prototypes.
• Shortening development time through rapid iterations.

2. Tooling and Mold Making

• Used by companies like Faurecia, which use the D1000 for high-strength seat molds.
• Materials like Nylon-CF offer excellent strength (up to 100 MPa).

3. End-Use Applications and Spare Parts

• Production of durable parts with high temperature resistance (up to 150 °C).
• Precision for applications in the automotive and aerospace industries.

Technical Data Features Details Build Volume 1000 × 1000 × 1000 mm (Dual Extrusion: 940 mm³) Print Speed 100–300 mm/s Extruder Dual extruder, auto-raising, up to 420 °C Materials PLA, ABS, PC, Nylon-CF, UltraPA-CF, PETG Build Chamber Heated up to 70 °C, with enclosed housing Precision 0.011 mm (XY), 0.0025 mm (Z) Dimensions 1810 × 1350 × 1942 mm, 650 kg

The CreatBot D1000 HS sets a new standard for large-format industrial 3D printing and offers an ideal solution for companies requiring large-volume manufacturing and high-strength materials through its cost-performance-oriented design.
