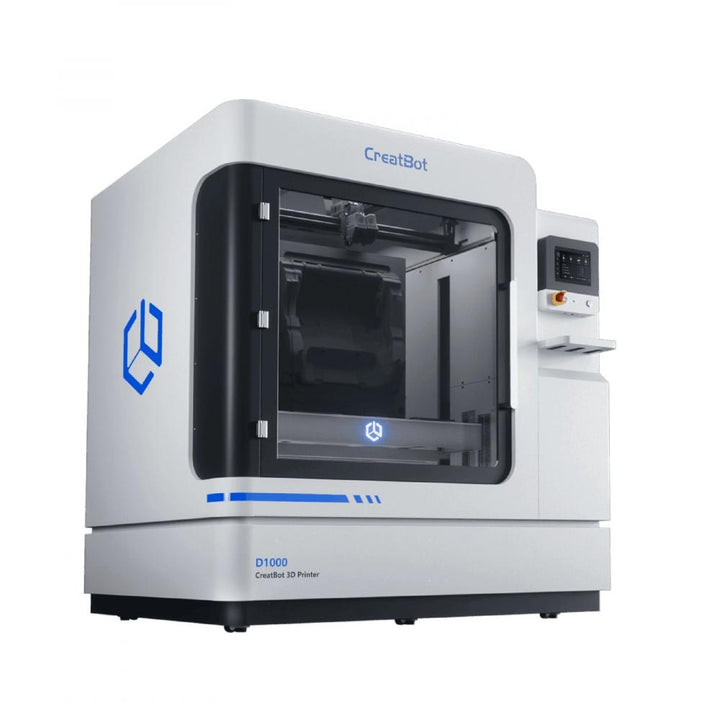

CreatBot D1000

Industrial large-format 3D printer with a one cubic meter build volume
The CreatBot D1000 is the advanced version of the F1000 model and offers an impressive build volume of over 1000 x 1000 x 1000 mm. This makes it the ideal machine for producing large-format and full-scale parts, prototypes, tools, molds, fixtures, and holders directly on site. Within a few days, you can create functional, high-quality prototypes. The CreatBot uses large filament spools made from materials such as PLA, ABS, ASA, and PA-CF, so you don't have to worry about frequent filament changes. Every feature of the D1000 is designed for the highest quality – for perfect results with every print, without errors.

Application in the automotive industry
Faurecia, a globally leading provider of advanced automotive systems and equipment, successfully uses the CreatBot D1000 3D printer for the development and design of car seat molds. These molds are used, among others, by Audi, VW, NISSAN, and GM Motors. In the video, you can see typical 3D printed products made with the D1000. The bowl and the lid must withstand a pressure of 100 MPa, which is why we chose nylon carbon fiber materials with 50% filling for production. The prints have shown excellent performance and passed all rigorous tests!

Size-independent for high-strength prototypes
The CreatBot D1000 was designed to make industrial 3D printing of large-format objects and prototypes as easy as possible. Equipped with state-of-the-art technology for impressive XXL prints, it is undoubtedly the best choice if you are looking for an industrial large-format 3D printer for prototypes and technical materials.

Revolutionary material for stable prints
If you are tired of the fragility of PLA and the deformation of ABS, try our revolutionary material UltraPA-CF. Print your large-format model with a large nozzle, and within a few days, you will have an oversized model with high strength of 80 MPa and temperature resistance of 150 °C. The best choice for your prototype verification.

Automatically lifting dual-extruder with 420 °C
The D1000 is equipped with a new intelligent dual-extruder kit that automatically lifts and reaches a hotend temperature of up to 420 °C. The hotend can be quickly replaced with different nozzles. It not only prints large prototypes from PLA with water-soluble PVA material at the highest speed but also ABS, PC, Nylon, carbon fiber, flexible materials, and many other high-performance materials for direct applications. The dual-extruder is easy to maintain and cost-effective to replace.

Power outage recovery & filament detection
The printer automatically saves the current position and stores the print data if the power supply is suddenly interrupted. It lowers the platform and retracts the filament. After powering on, it seamlessly resumes printing at the last point – without any marks! The printer prevents faulty printing by stopping and warning as soon as the filament runs out.

Linear rails and servomotors
At a length of over 1000 mm, small rails can exhibit significant deformation. However, the precise linear rail structure of the D1000 is extremely thick and stable. It does not deform and does not lose accuracy even after millions of print head impacts. With the servomotors, the printer ensures a fast response time without inertia or delay. The closed-loop position control solves the problem of missed steps. Heat and noise are significantly reduced. This ensures outstanding print performance at high speed.

Heated Chamber + Filament Drying Chamber
The 60 °C heated chamber ensures print quality for high-performance materials. The fully enclosed housing blocks all external influences while reducing noise and maintaining a constant temperature so the model does not deform. The filament drying chamber offers chamber temperatures of 45 °C and 65 °C to dry 2x5kg rolls of filament such as PLA, Nylon, PC, ABS, and other moisture-absorbing materials.

Automatic Platform Leveling
By using 100 measurement points with a high-precision servo sensor, the printer stores the platform flatness data at the start of printing. During the printing process, the height of the Z-axis is intelligently compensated to ensure fully automatic leveling.

HEPA Air Filter
The air filtration system can absorb contaminants and gases produced when printing with special filaments such as ABS, Nylon, or PC. This ensures greater safety and environmental protection, making the printer ideal for use at home, in schools, and in offices.

Camera Technology for Remote Control
The camera technology allows customers to remotely control the printing process via an app. Speed, pauses, temperature, and other parameters can be adjusted to achieve the best print quality in the shortest time and without errors. This feature is especially useful for large models and long print times.

Affordable and Reliable Large-Format 3D Printer
The CreatBot D1000 was designed to make industrial 3D printing of large-format objects and prototypes as easy as possible. In response to market demands, this industrial 3D printer is equipped with a new intelligent dual-extruder kit, a closed heated chamber, an automatic leveling system, and camera control for impressively large prints. The camera technology allows customers to control the printing process via an app, achieving the best print quality in the shortest time and without errors. With a fast-heating platform and a heated chamber, this high-resolution large-format printer produces amazing results with high-quality materials. The CreatBot D1000 sets new standards in additive manufacturing and expands material possibilities for large-format 3D printers, enabling companies to save significant costs and time.

Reliable Stability
The all-steel housing of the D1000 not only ensures stability during printing but also significantly extends the device's lifespan. The optimization and tuning of the entire structure guarantee sustainable and efficient operation. The first series of CreatBot 3D printers with all-steel housing has been in use for 9 years and has reached over 30,000 operating hours.
