Carvera PCB Manufacturing Package

Turn your Carvera into a professional PCB factory with this PCB manufacturing package

Brief description:
This comprehensive PCB manufacturing package transforms your Carvera into a full-fledged production facility for PCBs. It contains all the necessary tools and materials to manufacture both single- and double-sided PCBs, including solder mask application, laser engraving, and milling tools.

Description:

Applying the solder mask:

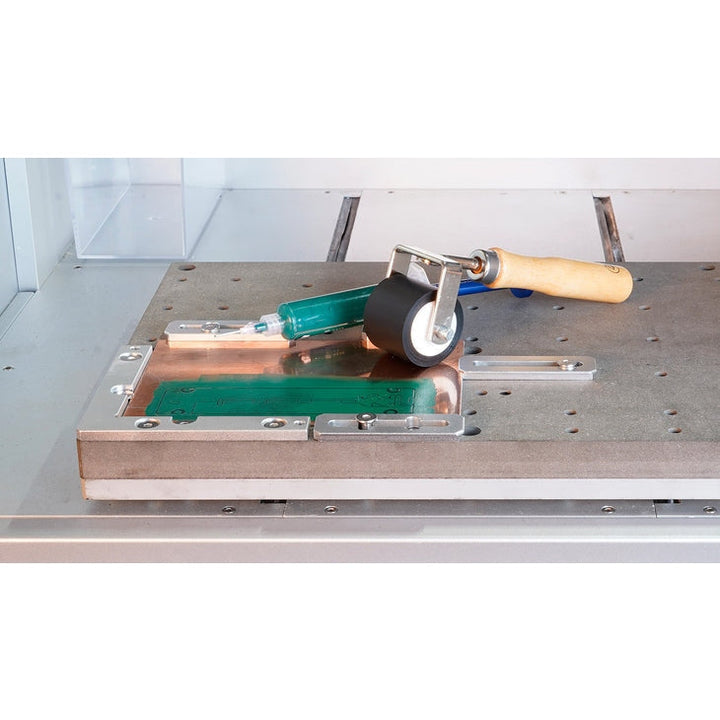

The solder mask not only improves the appearance of your PCB but also makes soldering much easier. With the UV solder mask roller and UV-curable solder mask color, you can apply the mask precisely and evenly. A special removal tool is included in the set for removing excess mask.

Laser engraving of the silkscreen:

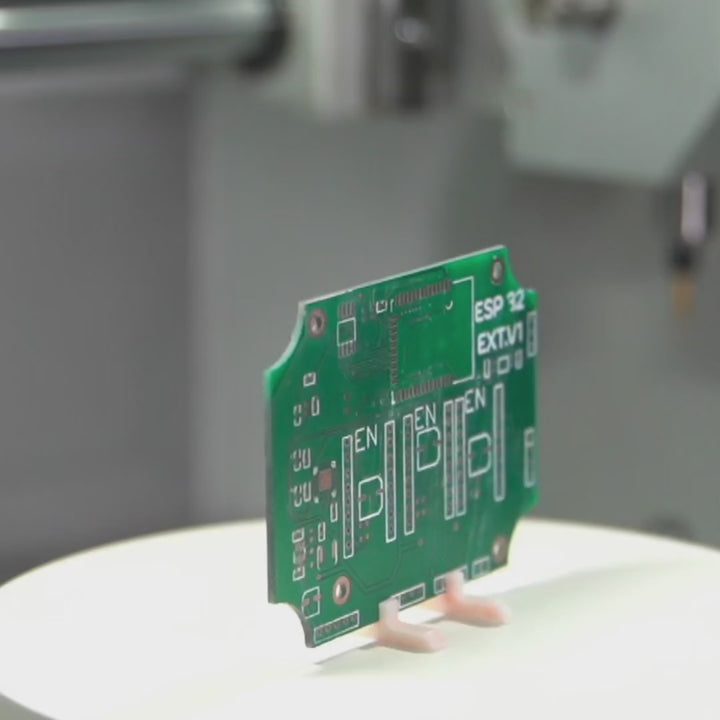

Use Carvera's integrated laser module to engrave the silkscreen directly onto the solder mask. This gives your PCBs a professional finish and ensures easy handling.

Manufacturing double-sided PCBs:
The manufacturing of double-sided PCBs is greatly simplified by a precise alignment system with double-sided processing pins. This system ensures exact matching of the two PCB sides.

Software solution:

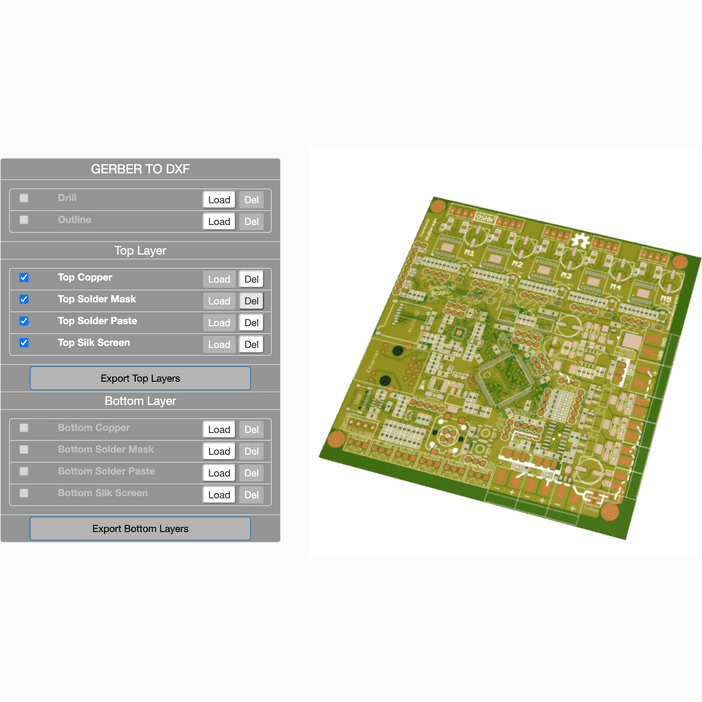

The included software allows easy conversion of Gerber files into CAD files, so you can effortlessly work with VCarve Desktop or other well-known CAM programs without needing to learn additional software.

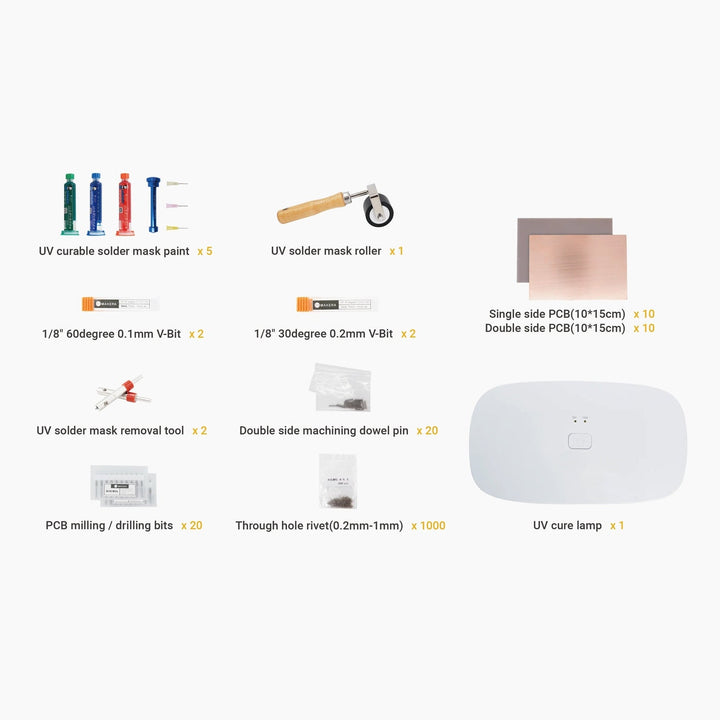

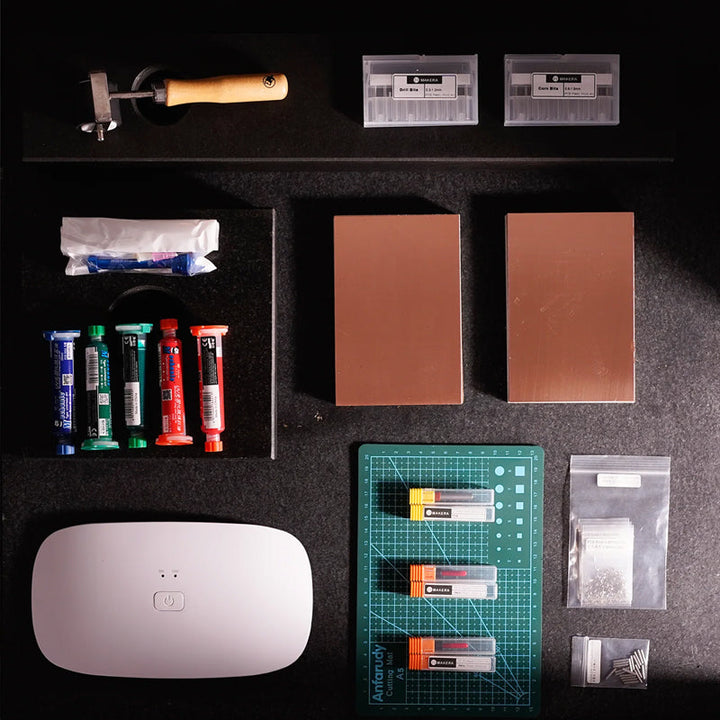

Scope of delivery: Component Quantity Description UV-curable solder mask color 5 Set of 5 colors for applying the UV-curable solder mask UV solder mask roller 1 Roller for even application of the solder mask 1/8" V-bit (60 degrees, 0.1mm) 2 Milling tools for precise milling and cutting 1/8" V-bit (30 degrees, 0.2mm) 2 Fine milling tools for detailed work Single-sided PCB boards (10x15cm) 10 PCBs for simple PCB designs Double-sided PCB boards (10x15cm) 10 PCBs for more complex, double-sided designs UV solder mask removal tool 2 Tools for precise removal of the solder mask Pins for double-sided processing 20 Pins for exact alignment when manufacturing double-sided PCBs Via rivets (0.2mm - 1mm) 1000 Rivets for creating vias on the PCB UV curing lamp 1 Lamp for fast curing of the UV solder mask Milling and drilling bits 20 Bits for milling and drilling PCBs
