HeatLink 300°C Thermistor for 3D Printers
SKU: P3826S | EAN: 7350011412365

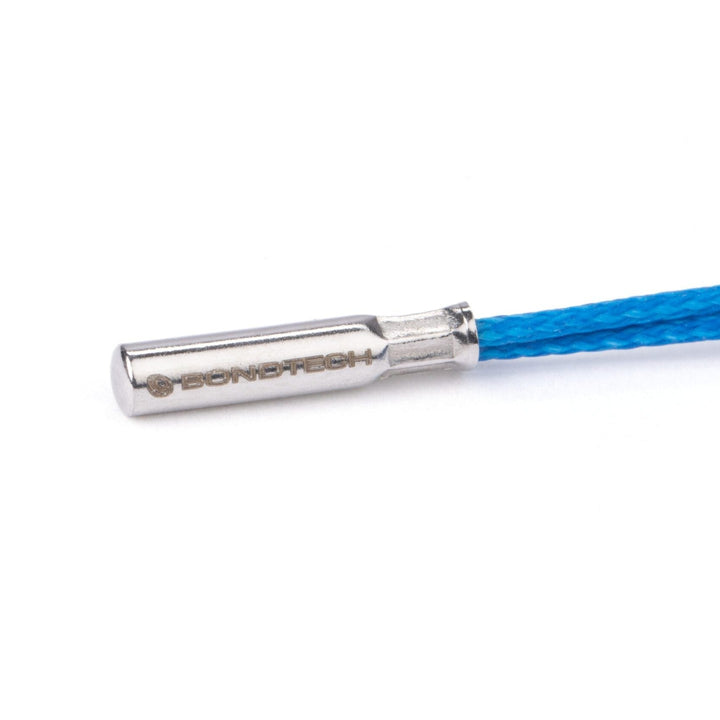

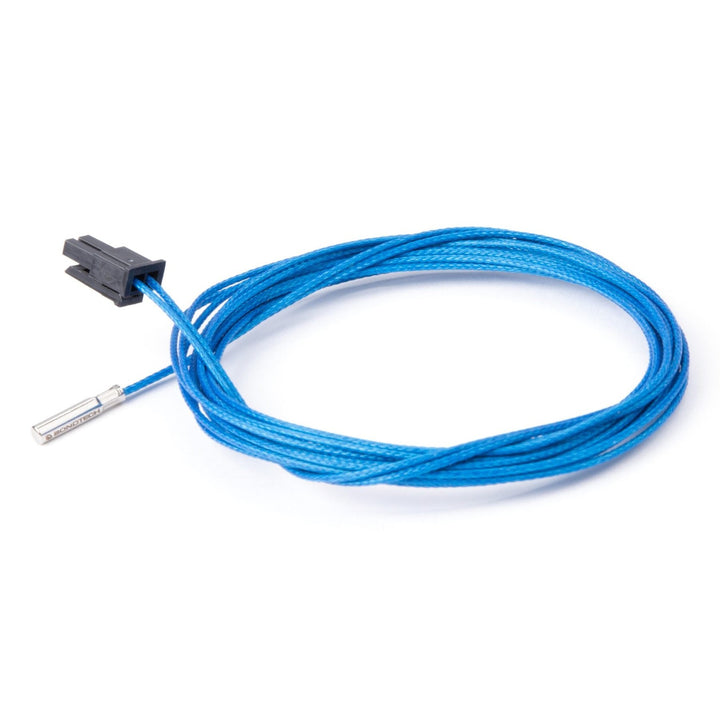

Bondtech HeatLink 300°C Thermistor

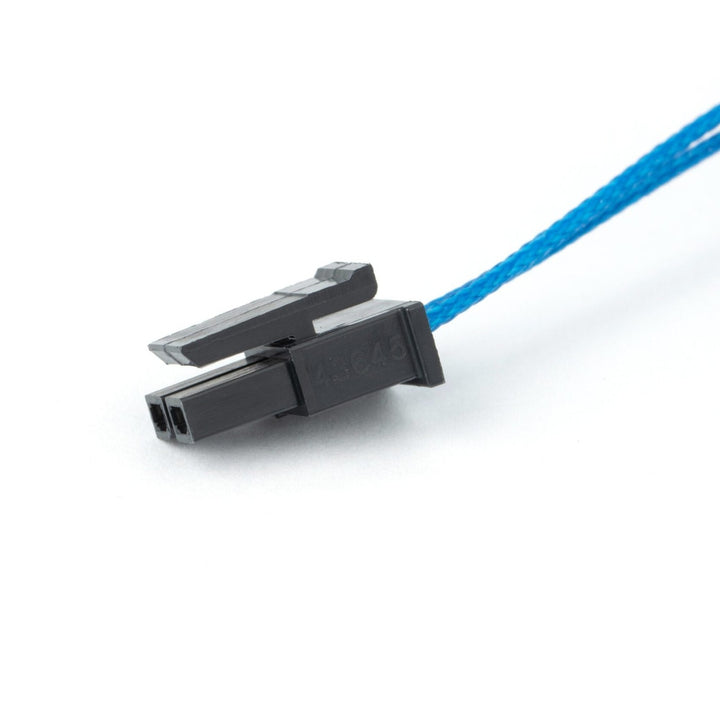

Customize it to your liking! The Bondtech HeatLink 300°C Thermistor is based on the SeMitec 104NT-4-R025H42G temperature sensor and uses a Molex Micro-Fit 3.0 female connector. This allows easy expansion with one of the HeatLink interface cables to connect it effortlessly to your 3D printer.
To customize your Marlin2.0 for this thermistor, use the following code:
#define TEMP_SENSOR_0 5
Check the R/T table here:
The HeatLink range offers an alternative group of thermistors and heater cables equipped with Molex Micro-Fit connectors. They are complemented by several short interface cables that can connect to dozens of 3D printer models, providing users with easy handling.
HeatLink is the answer to the growing demand for powerful heaters and high-temperature thermistors that are ready to use and easy to install.
Plug & Play thermistors and heaters from Bondtech
Ready for use on at least 25 different Creality and Prusa models.
Combine a Bondtech thermistor or heater with a HeatLink interface cable to connect it to any printer without soldering or crimping.
Each interface cable is 50 mm long and fits completely inside the control housing.
Compatibility table of Bondtech HeatLink interface cables
| HeatLink JST XH-2 W/ LOCK | HeatLink JST XHP-2 | HeatLink JST VHR-2N | HeatLink JST SMP-02V-BC | HeatLink Molex MX-50-57-9002 | HeatLink Ferrule |
| CR-10S Pro, CR-10S Pro V2, CR-10 Max, CR-10 V2, CR-10 V3 | Ender-3, Ender-3 Pro, Ender-3 V2, CR-10, CR-10 mini, CR-10 S, CR-10 S4, CR-10 S5, CR-5 Pro, CR-X, Ender-6 | Ender-5, Ender-5 Pro, Ender-5 Plus | i3 MK3 / S / +, i3 MK2.5 / S, i3 MK2 / S |
*The above table only refers to the connection of Bondtech HeatLink thermistors.
