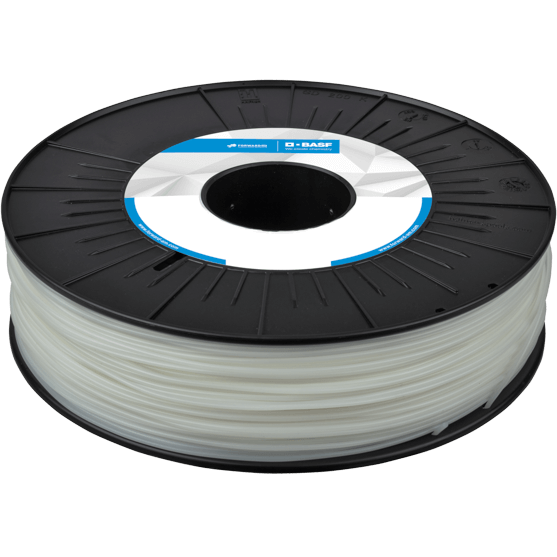

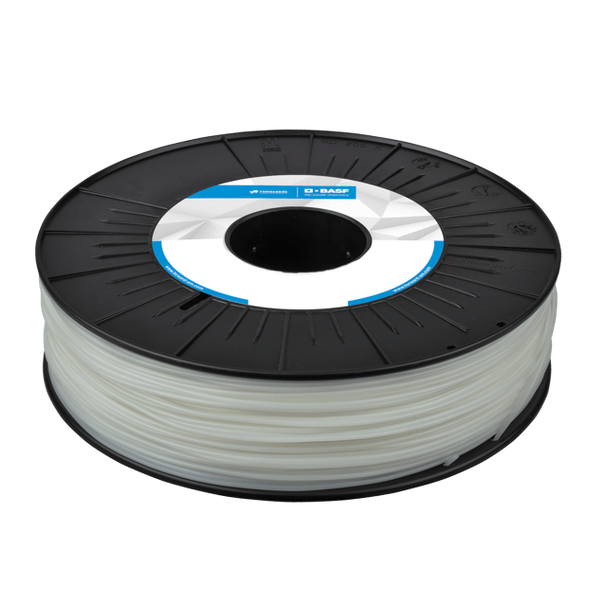

BASF Ultrafuse TPU 85A - Flexible 3D printing material

BASF Ultrafuse TPU 85A

BASF's Ultrafuse TPU 85A builds on decades of experience in developing flexible materials. This material is based on the proven thermoplastic polyurethane Elastollan and stands for maximum reliability, consistent product quality, and cost efficiency. With its excellent abrasion resistance, Ultrafuse TPU 85A is an excellent choice for applications requiring high wear resistance. Parts printed with this material feature high elongation at break, great layer adhesion, and good resistance to oils and industrial chemicals.

Tips & Tricks

• Nozzle temperature: 210-230°C
• Bed temperature: 40 °C
• Build chamber temperature: Passively heated, enclosed chamber
• Nozzle diameter: ≥ 0.4 mm
• Bed modification: Adheres to various print bed types (glass preferred)
• Printing speed: 15-40 mm/s

Material properties

• Shore A hardness: 85
• Abrasion resistance: 82 mm³
• Compression deformation at 23°C, 72 h: 26%
• Breaking stress: 34 MPa (XY), 10 MPa (ZX)
• Elongation at break: 600% (XY), 320% (ZX)
• Tensile strength: 80 kN/m (XY), 18 kN/m (XZ), 30 kN/m (ZX)

BASF quality control

The best available raw materials are selected from renowned suppliers. Production takes place on state-of-the-art, computer-controlled machines that guarantee truly consistent filament quality, even between colors and batches. It will work as expected every time.

All BASF products are 100% traceable to the source.
