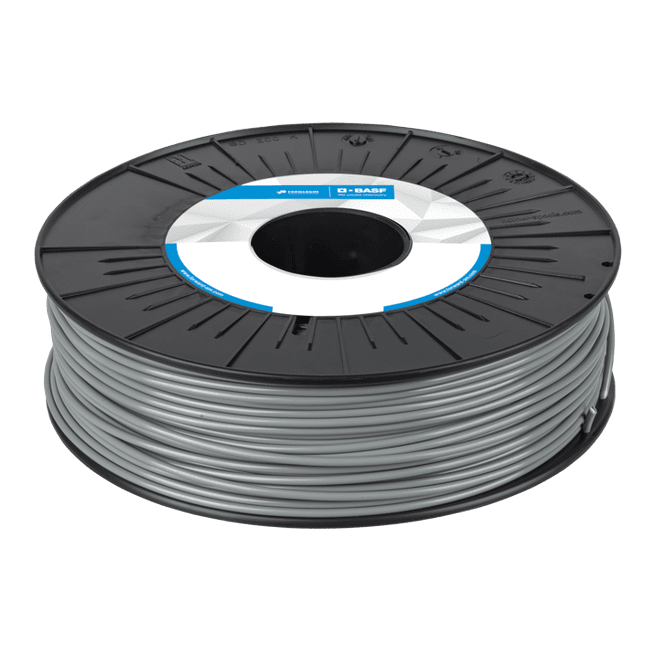

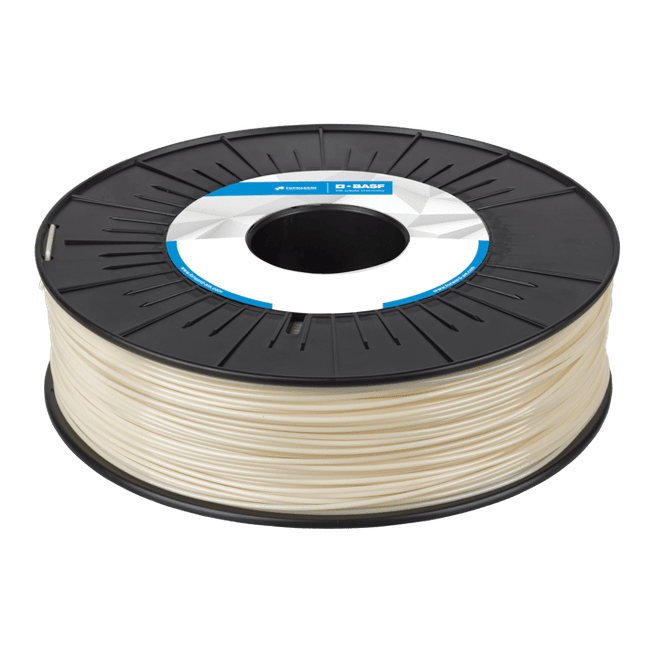

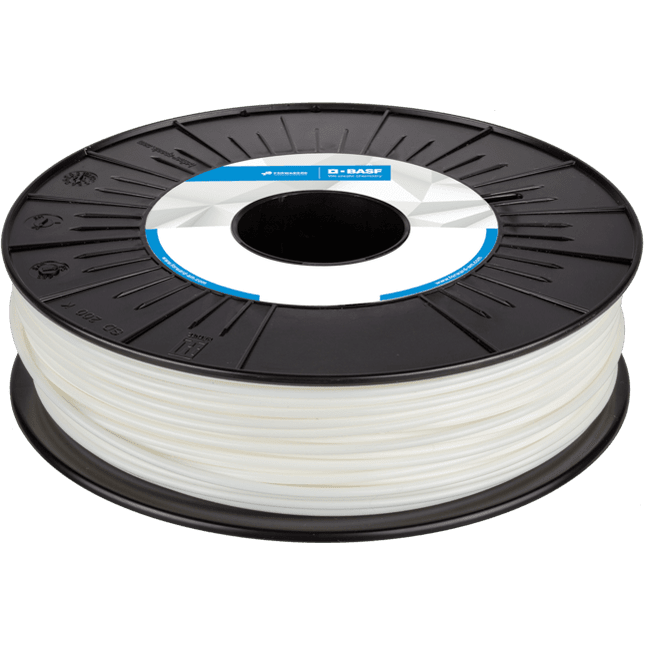

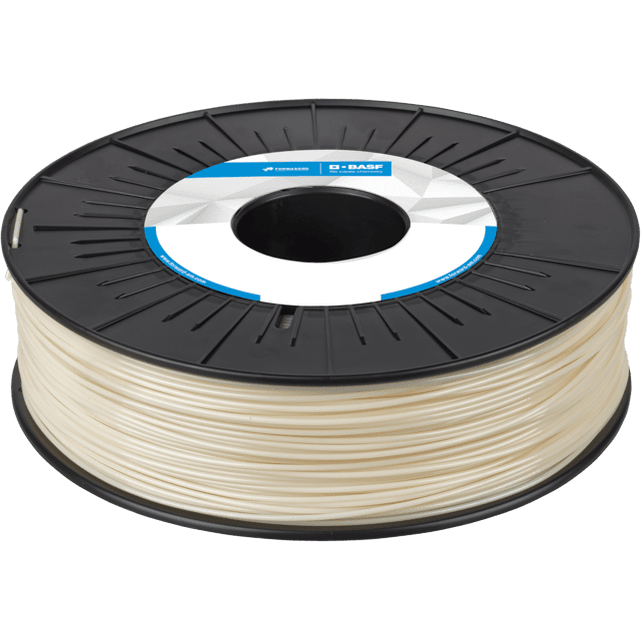

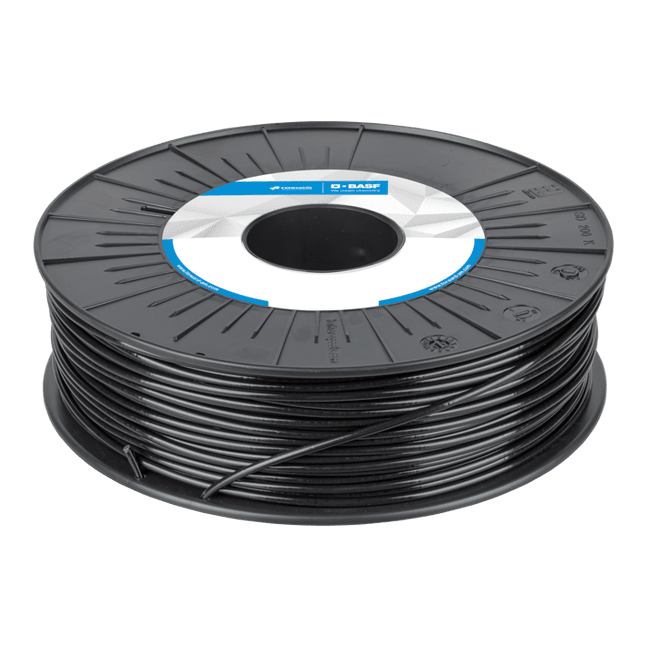

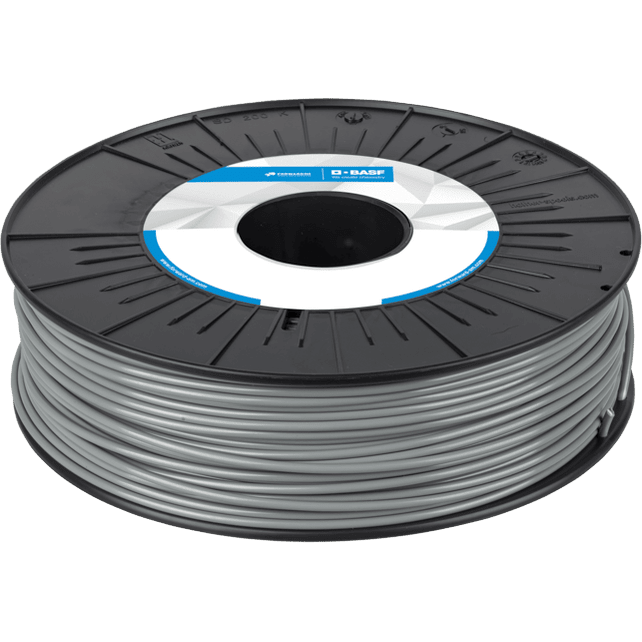

BASF Ultrafuse ABS Fusion+

BASF Ultrafuse ABS Fusion+

BASF Ultrafuse ABS Fusion+ is an engineering filament specially developed for 3D printing, optimized with Polyscope XILOY™ 3D. It offers high chemical and heat resistance, excellent layer adhesion, and significantly reduced warping – ideal for demanding applications.

Highlights

• High chemical and heat resistance
• Very low warping for reliable prints
• Printable directly on glass without additional aids
• Compatible with water-soluble support materials
• Consistent quality thanks to BASF production standards

Optimized ABS for professional applications

ABS is considered a versatile standard plastic but was often difficult to print. With Ultrafuse ABS Fusion+, BASF has developed a material that is easy to process, delivers stable results, and is suitable for both functional prototypes and durable end products.

Printing parameters

• Printing temperature: 240–260 °C
• Heated bed: 100–120 °C (on glass)
• Printing speed: 40–80 mm/s
• Fan: 0–25 %
• Layer height: 0.1–0.2 mm

Material properties (according to ISO)

• Elongation at break: 10.9 % (ISO 527)
• Flexural strength: 48.7 MPa (ISO 178)
• Flexural modulus: 1133 MPa (ISO 178)
• Notched impact strength: 118.7 kJ/m² (ISO 179-2)
• Notched impact strength: 41.9 kJ/m² (ISO 179-2)

BASF Ultrafuse ABS Fusion+ is the perfect choice for engineers, developers, and makers looking for a reliable, high-performance ABS filament with consistent quality.
