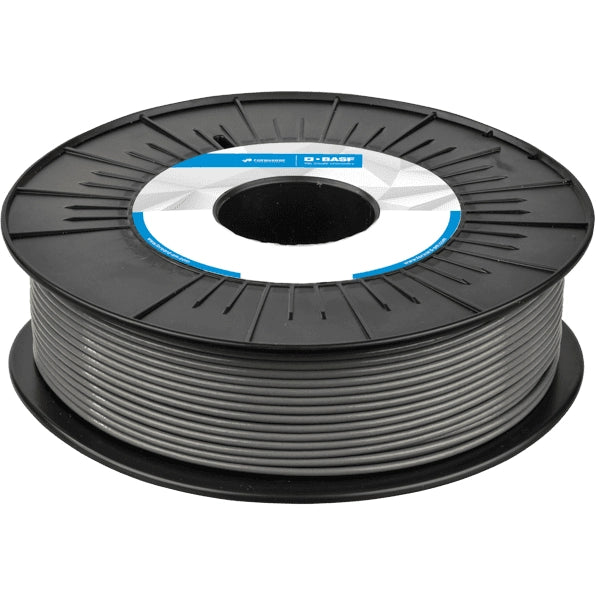

BASF Ultrafuse 316L 3KG

High-quality metal parts directly from your desktop 3D printer

Ultrafuse 316L enables you to produce real metal parts with a conventional FFF 3D printer. With a content of 80% stainless steel and 20% polymer, this filament is specially designed to be used on a variety of open FFF desktop printers. It is the perfect choice for users who want to manufacture robust, durable parts in small series or for functional prototypes. The simple printing process ensures that even complex geometries can be implemented without problems. With Ultrafuse 316L, you effortlessly produce high-quality metal parts – directly from your desktop printer.

Versatile applications for various industries

Ultrafuse 316L opens up a wide range of application possibilities. Whether you need tools, fixtures, or series products, this filament offers the flexibility and quality you expect for your projects. Thanks to its high strength and precision, Ultrafuse 316L is ideal for producing functional parts and prototypes that require high durability. Especially in the automotive industry, mechanical engineering, and consumer goods manufacturing, Ultrafuse 316L is the first choice for demanding applications.

From manufacturing to metal part: A three-step process

The path to your finished metal part consists of three simple steps: First, the component is produced using FFF 3D printing. Then the debinding process takes place, during which the polymer is removed from the part. In the final step, the part is sintered, causing the metal particles to fuse and form a solid, durable metal part. This process, combined with BASF's outstanding quality assurance, guarantees you consistent results and consistently high quality with every batch.

Basic data Property Value Filament Type Metal Diameter 1.75 mm Weight 3.00 kg Length 159 m Printing parameters Property Value Recommended Nozzle Temperature Min 230 ºC Recommended Nozzle Temperature Max 250 ºC Recommended Print Bed Temperature Min 90 ºC Recommended Print Bed Temperature Max 100 ºC Recommended Print Speed Min 15 mm/s Recommended Print Speed Max 50 mm/s General properties Property Value Density 7.85 g/cm³
