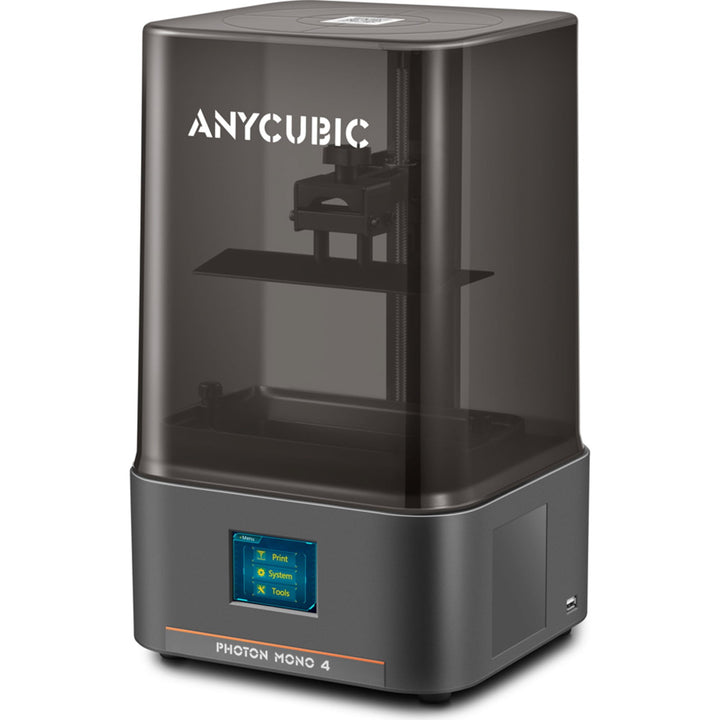

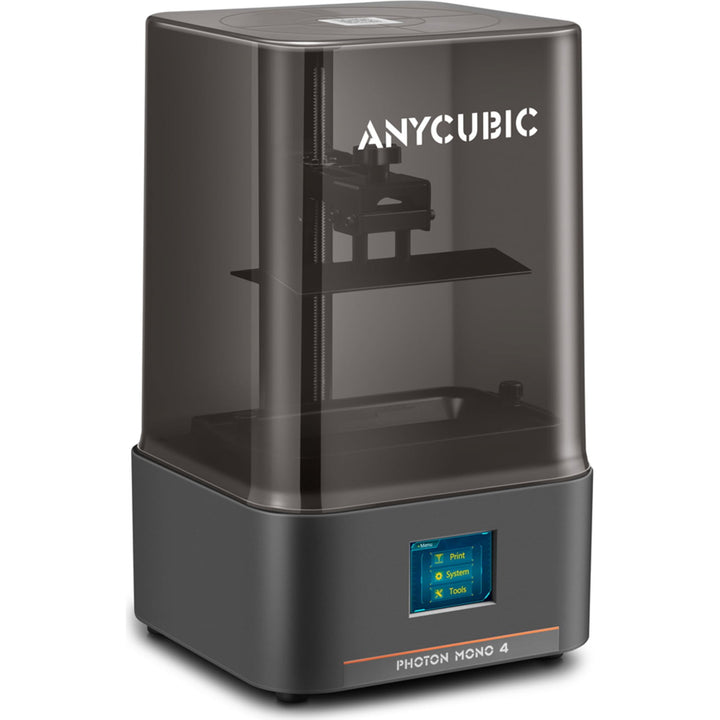

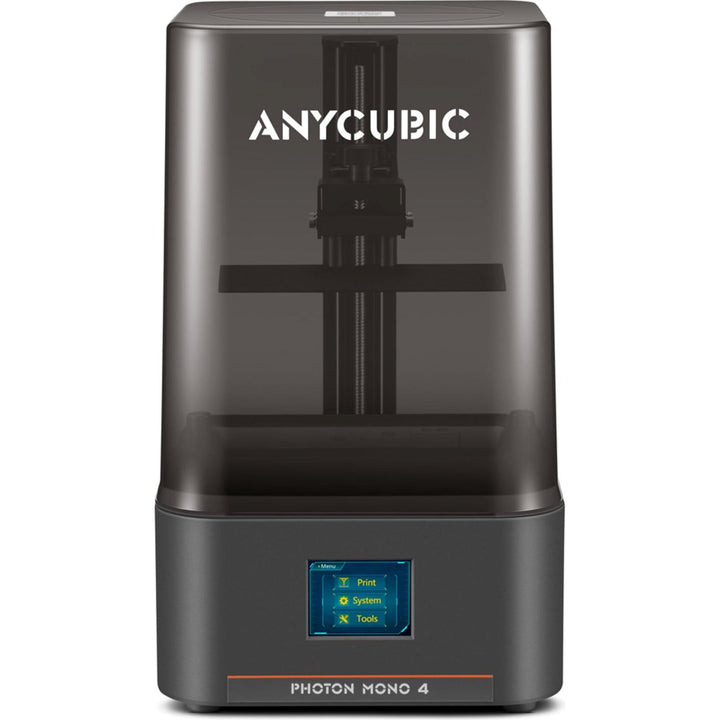

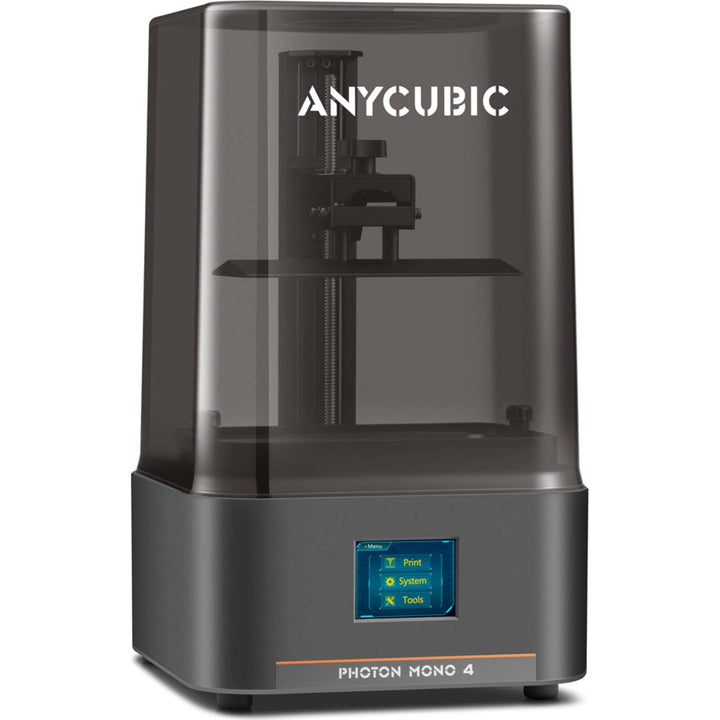

Anycubic Photon Mono 4

Anycubic Photon Mono 4 – 10K Resin 3D Printer

The Anycubic Photon Mono 4 is a reliable resin 3D printer for beginners and professionals, combining high precision with easy operation. Equipped with a 10K Mono LCD, a printing speed of up to 70 mm/h, and the optimized LighTurbo system, it delivers detailed results with fast production.

Highlights & Benefits

• 10K Resolution: 9024 × 5120 pixels with 17 μm pixel size for razor-sharp details.
• 7-inch Mono LCD: Long lifespan & brilliant print quality.
• Up to 70 mm/h: Fast printing speed with stable quality.
• LighTurbo Lighting System: Even exposure & smooth surfaces.
• Laser-engraved build platform: Strong hold for models, less warping.
• Compatible with many resins: Including eco-friendly bio-resins.
• Power-Resume function: Resumes prints after power outage.

Precision meets speed

With its 10K LCD technology, the Photon Mono 4 reaches a new level of detail accuracy. The LighTurbo lighting ensures even curing, reduces layer lines, and shortens exposure time to up to 1.5 seconds per layer.

User-friendly design

The laser-engraved build platform improves adhesion while making it easier to remove finished prints. Thanks to the 4-point leveling function, setup is straightforward and quick.

Versatile & eco-friendly

The printer supports classic resins as well as bio-resins, which are low-odor, skin-friendly, and more sustainable. This makes it suitable for prototypes, models, miniatures, or portable applications.

Technical data

• Printing technology: UV LCD
• Display: 7" Mono LCD, 9024 × 5120 pixels
• Build volume: 153.4 × 87 × 165 mm
• Layer height: 0.03 – 0.15 mm
• Max. speed: up to 70 mm/h
• Leveling: 4-point manual
• Connections: USB
• Dimensions: 230 × 235 × 391 mm
• Weight: 4 kg

Scope of delivery

• Anycubic Photon Mono 4
• Build platform
• Resin vat
• Screen protector set
• Leveling paper
• Protective equipment
• 5 × funnels, 2 × spatulas
• Allen key set
• USB stick
• Power cable

Conclusion: The Anycubic Photon Mono 4 offers an optimal balance of speed, precision, and user-friendliness – perfect for anyone starting with resin 3D printing or looking to take their projects to the next level.
