Vinyl cutting plotter 720 mm

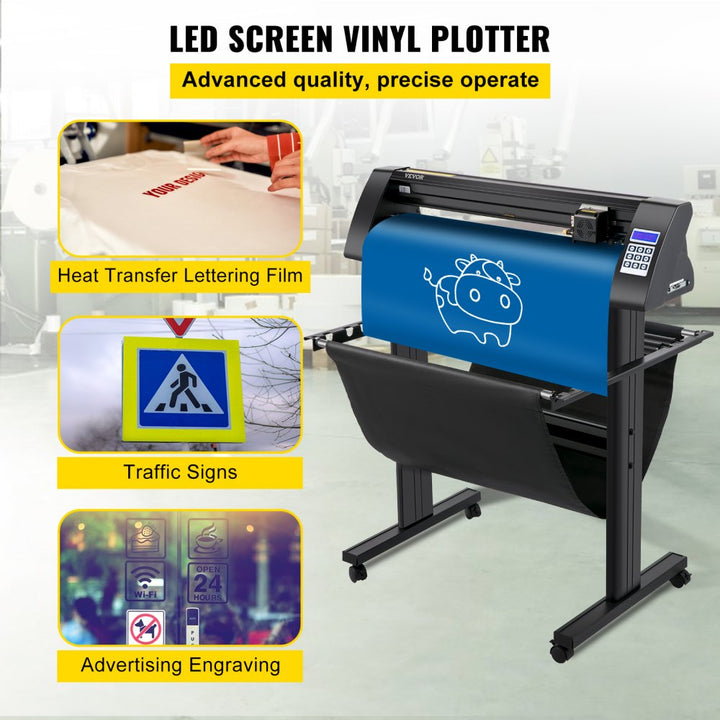

The VEVOR KH-720A Cutting Plotter is an advanced device for precise and versatile cutting. With an integrated optical eye, an LED control panel, and comprehensive software compatibility, this cutting plotter is perfect for professional projects and creative applications. Thanks to its robust construction and flexible usage options, users can easily process materials such as vinyl, paper, and cardboard.

Main features:

• Integrated optical eye: The laser targeting device enables precise contour cutting and is supported by Signmaster and Signcut.
• Efficient LED display: An illuminated screen and intuitive control panel provide clear operation. Cutting pressure and speed are finely adjustable (0–500 g, 15–800 mm/s).
• Precise cutting: Maximum cutting width of 630 mm, paper feed up to 720 mm, and cutting accuracy of ±0.01 mm.
• Versatile software compatibility: Supports DM/PL and HP/GL language formats and works with software such as Signmaster, Flexi, and Coreldraw (not compatible with Mac systems).
• Robust design: A stable floor stand and a comprehensive accessory set enable smooth and safe operation.

Technical specifications: Model KH-720A Max. cutting width 24.8 inches / 630 mm Max. paper feed 28.3 inches / 720 mm Motor type Stepper motor Material Aluminum alloy Power 95 W Controller board ARM Max. cutting force 1.1 lbs / 500 g Max. cutting speed 800 mm/s Memory cache 1-4 M LCD display CN / EN Cutting accuracy ±0.004 inches / ±0.01 mm Resolution ratio 0.0245 mm / step Voltage AC 85-264 V Max. cutting thickness 3 mm Product size (LxWxH) 88 x 64 x 103 cm Weight 19.7 kg Scope of delivery:

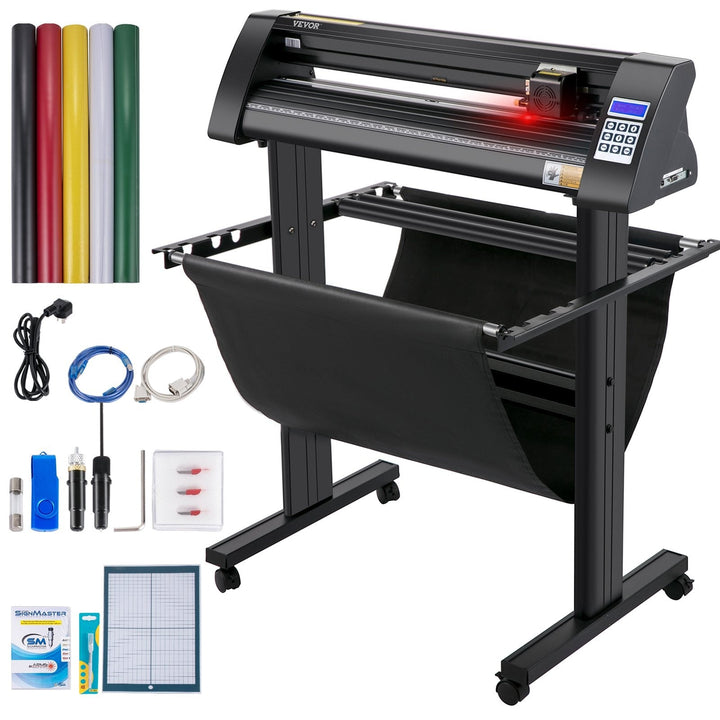

• 1 x cutting plotter
• 1 x power cable
• 3 x blades
• 1 x stylus, blade holder, and pen holder
• 1 x cutting mat, 5 x vinyl sheets
• 1 x USB cable and COM cable
• 1 x floor stand and additional accessories for installation and operation

With the VEVOR KH-720A Vinyl Cutting Plotter, both beginners and professionals are able to precisely realize demanding designs.
