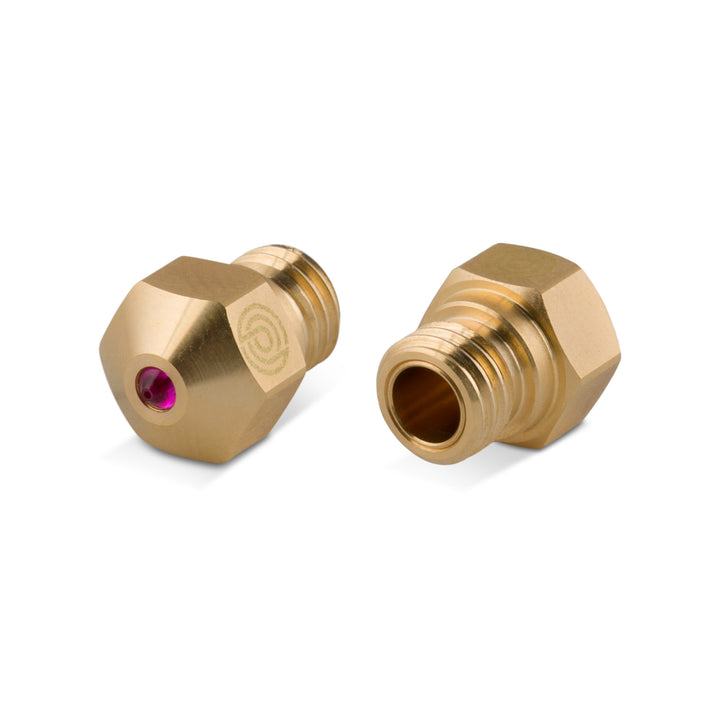

PrimaCreator MK10 Ruby Nozzle 0.4 mm - 1 Piece

PrimaCreator Ruby Nozzle – The Perfect Choice for All Materials

The PrimaCreator Ruby Nozzle is the latest addition to the PrimaCreator nozzle lineup. This innovative nozzle combines the advantages of high-quality brass with the robustness of a genuine ruby tip to provide you with an unparalleled printing experience.

Regular brass nozzles are often recommended because they have excellent thermal conductivity. However, they also have their drawbacks. If you want to print with abrasive materials like carbon or glowing filament, conventional brass nozzles wear out quickly. A hardened steel nozzle is more durable but not optimal for daily use, as its thermal conductivity is not comparable to that of brass.

The logical solution is to combine the best of both worlds – and that is exactly what the PrimaCreator Ruby Nozzle offers.

In this high-quality nozzle, we use premium brass complemented by a small ruby at the tip. This transforms a conventional brass nozzle into a versatile nozzle suitable for both standard filaments like PLA, ABS, and PETG as well as abrasive materials such as carbon-filled filament, metal, glowing filament, and wood. With this nozzle, you can use almost all the "nozzle killer" filaments currently on the market.

Finally, you can use one nozzle for all your materials!

All PrimaCreator Ruby Nozzles are made from high-quality brass with a genuine ruby tip. They are manufactured in a state-of-the-art factory, with each nozzle produced to a tolerance of less than ± 0.01 mm. This ensures that your filament has a very smooth and clear surface when extruded, leading to better print results.

For optimal print quality, we strongly recommend re-leveling your print bed after switching to a new nozzle. Note that a PrimaCreator nozzle may be compatible with your printer, but the distance between the nozzle and the print bed must be adjusted.

The manufacturing process of a PrimaCreator nozzle begins with selecting high-quality materials. Upon arrival at the factory, the material undergoes an initial visual inspection for each batch of nozzles. Then the material is formed into a long rod. This process is done only once, whereas in many other (more affordable) cases, this process must be repeated several times, often up to 3-4 times, without achieving the same results. After this step, the material undergoes an ultrasonic cleaning bath and is then cleaned again and protected against surface oxidation.

The nozzle now takes shape with millimeter precision, with a tolerance of less than ± 0.01 mm. Removing sharp edges from the nozzles is a very important step, as it significantly affects the outcome. Too many sharp edges can make the nozzle more prone to clogging. Therefore, it is crucial that the nozzle is very smooth and clean before use. In each batch, some nozzles are selected and cut in half to ensure that every specification is met and the surface is in perfect condition.

The nozzles are then checked one last time and individually packed in a protective box – ready to be shipped to you.

The PrimaCreator Ruby Nozzle is the perfect choice for anyone who wants only the best at an excellent price-performance ratio!

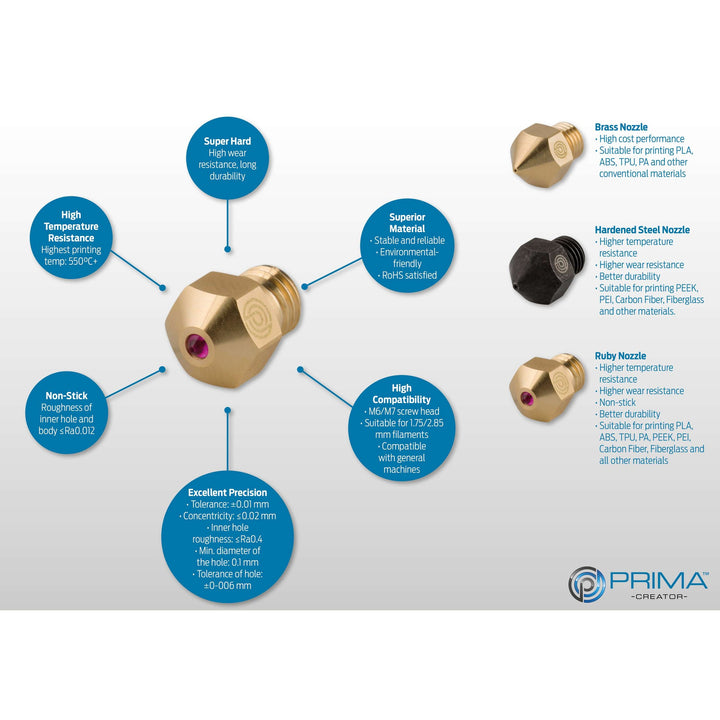

Why should you use a Ruby Nozzle?

• All filaments, one nozzle
<
