EM-Smart Mop 30/30R - 30W JPT Laser
- 30 W Laserleistung für saubere Schnitte und Gravuren
- Verarbeitet u. a.: Edelstahl, Aluminium, Leder, Kunststoff
- Kompatibel mit LightBurn
SKU: P1049S | EAN: 0756892332889

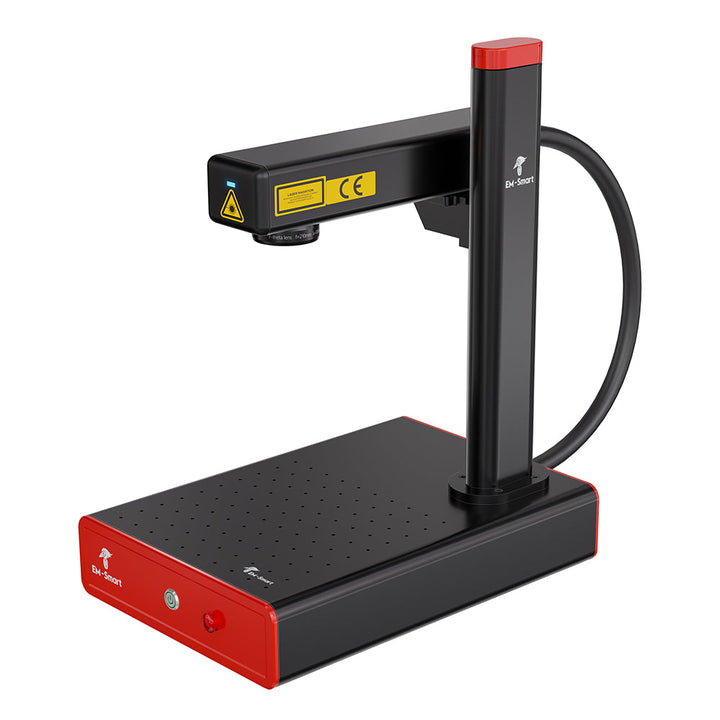

EM-Smart MOPA 30W laser engraving device – precision, versatility, and high marking quality for demanding applications
The EM-Smart MOPA 30W is a professional laser engraving device that impresses with its 30-watt JPT-MOPA laser source, delivering outstanding performance and precision. With highly customizable parameters and a vast range of material compatibility, this laser is ideal for industrial applications, creative design, and personalized markings. The MOPA laser allows colored markings on metals and provides detailed engravings at high speed.
Highlights of the EM-Smart MOPA 30W
1. MOPA laser technology with 30W output power
The EM-Smart 30W MOPA laser offers excellent marking speed and accuracy. The MOPA technology enables not only colored markings on metals but also deep and precise engravings on a variety of materials such as stainless steel, aluminum, and plastic.
2. High marking speed and precision
With a marking speed of up to 10,000 mm/s and a beam quality of ≤1.3, the device offers exceptional engraving quality even for small details. The MOPA laser is ideal for projects requiring fast and fine markings.
3. Flexible working area
The device supports various marking fields (70x70 mm, 110x110 mm, 150x150 mm, and 175x175 mm), allowing engraving of both small and larger objects. The maximum marking height is 150 mm, so taller objects can also be processed easily.
4. Intuitive operation and modern software

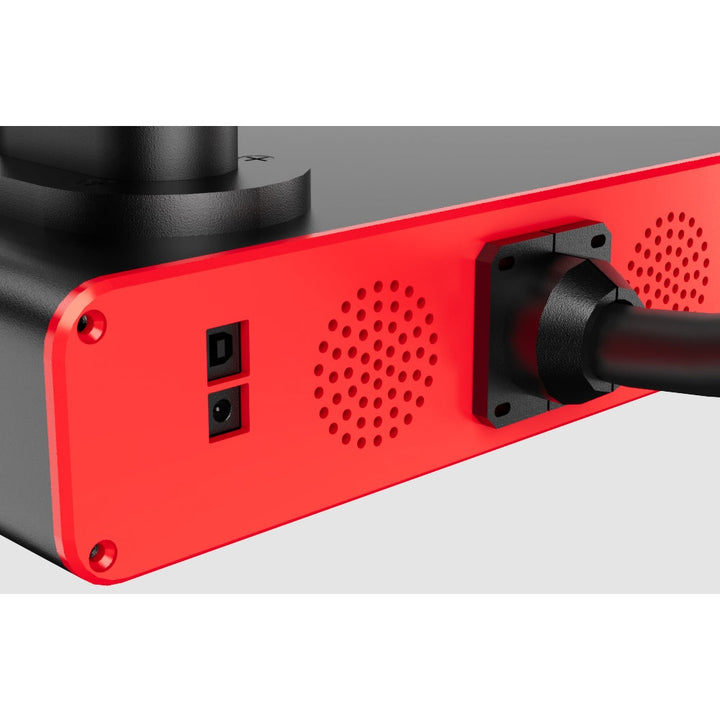

The EM-Smart MOPA 30W is controlled via the EZCAD or LightBurn software interface, compatible with all common operating systems such as Windows, macOS, and Linux. The connection is conveniently made via a USB cable. The laser device supports a wide range of file formats, including PNG, JPG, BMP, AI, DXF, and QR codes.
Technical data of the EM-Smart MOPA 30W
| Feature | Specification |
|---|---|
| Laser source | JPT-MOPA |
| Output power | 30W |
| Wavelength | 1064 nm |
| Beam quality | ≤1.3 |
| Marking speed | Up to 10,000 mm/s |
| Marking fields | 70x70 mm to 175x175 mm |
| Max. marking height | 150 mm |
| Cooling | Air-cooled |
| Operating temperature | 0 - 40 °C |
| Lifespan | Up to 100,000 hours |
| Mains voltage | DC 24V |
| Power consumption | ≤144 W |
| Weight | 18 kg |
| Dimensions | 475 x 325 x 545 mm |
| Safety certificates | CE, FDA, RoHS, SGS, ISO9001 |
Wide range of applications and advanced features
The EM-Smart MOPA 30W offers versatile applications, from marking in manufacturing to personalized markings and product design. It is ideal for materials such as stainless steel, plastic, leather, and coated metals. An optional rotary module is available for cylindrical engravings.
Accessories and expansion options:

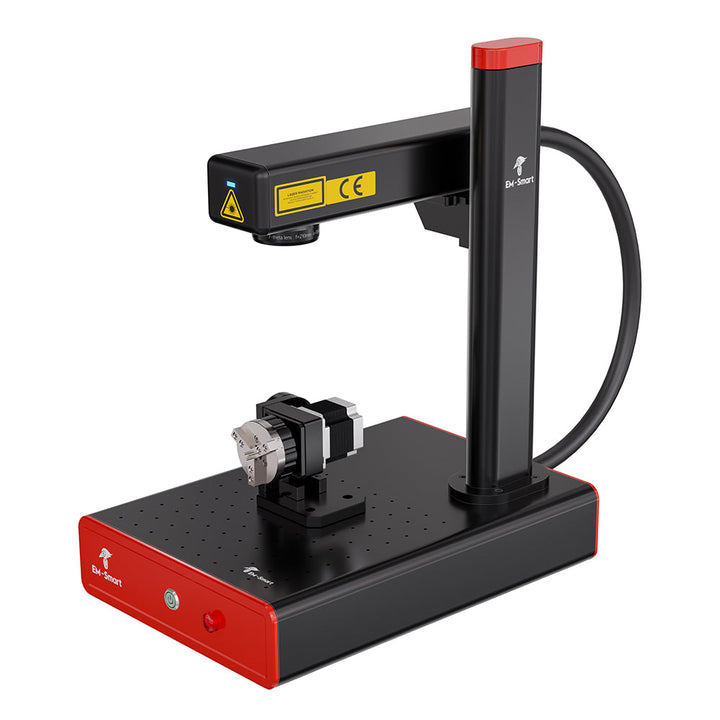

- Rotary module (optional): Ideal for engraving round objects.
- Air Assist Kit: Improved cutting performance and clean edges.
- Color laser function: For impressive colored markings on metals.
Why choose the EM-Smart MOPA 30W?
The EM-Smart MOPA 30W offers an excellent combination of precision, speed, and flexibility. With its robust construction and high safety standards, it is a reliable tool for precise markings at a professional level. With a lifespan of up to 100,000 hours, the device is designed for long-term use and provides you with an outstanding ROI.
