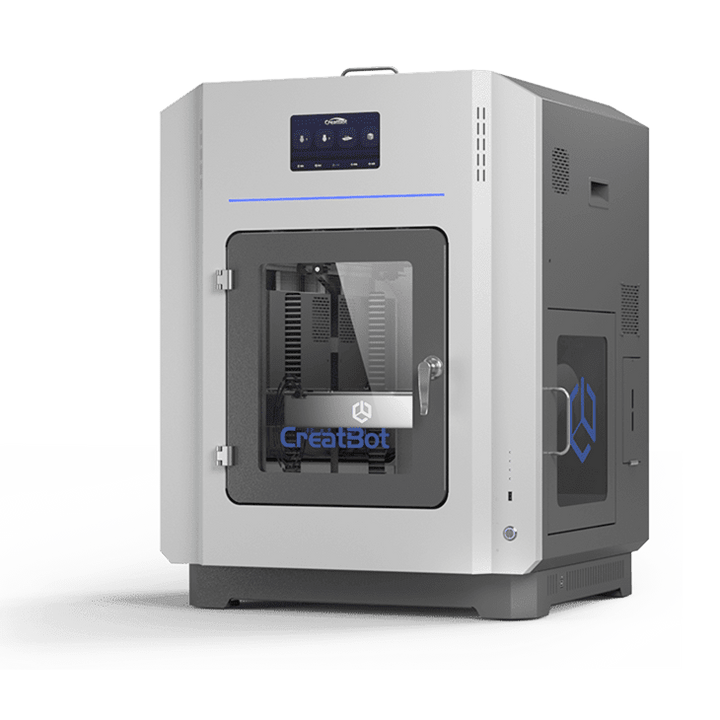

CreatBot PEEK-250

CreatBot PEEK-250 High-Temperature 3D Printer

The CreatBot PEEK-250 is a professional 3D printer specifically designed for processing high-performance polymers such as PEEK and PEI. With its ability to reach temperatures of up to 200 °C in the build chamber within a closed system, it offers an optimal solution for precise and high-quality print results with demanding materials.

Main Features 1. Advanced Temperature Control

• 480 °C Nozzle: Perfect for high-temperature materials like PEEK, PEI, and carbon fiber reinforced plastics.

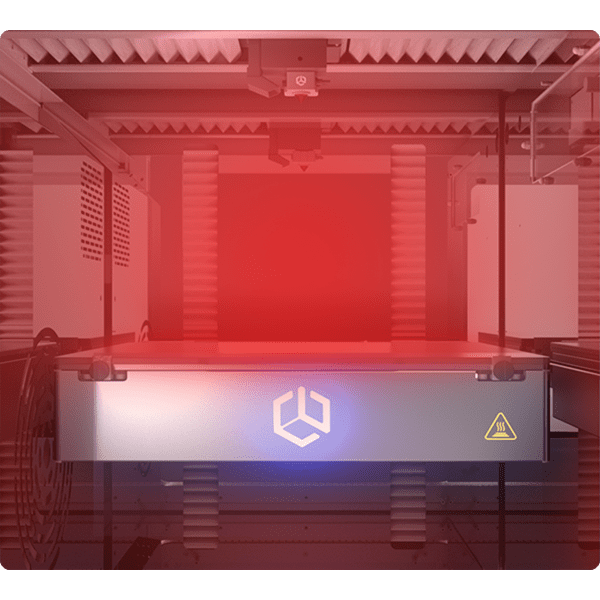

• 200 °C Build Chamber: Ensures uniform crystallization and minimizes warping.
• 200 °C Build Platform: With a polymer-based coating for strong adhesion and excellent precision.

2. Integrated Annealing

• Allows direct post-processing in the printer without removing the model from the print bed.
• Reduces residual stresses and improves material properties through precise heat control.

3. High-Performance Design

• Water Cooling System: Ensures stability during long print jobs.

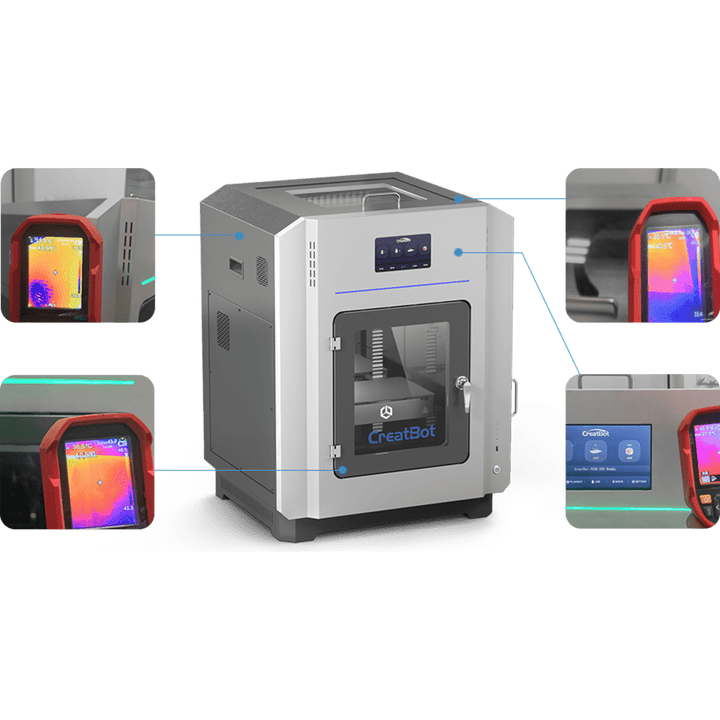

• Multi-layer Insulation: Protects sensitive components and keeps external temperatures below 40 °C.
• 360° Air Circulation: Provides even heat distribution throughout the build chamber.

4. Versatile Material Compatibility

• Supports a variety of technical plastics (e.g., PLA, ABS, Nylon) as well as high-performance materials (PEEK, PEI, PEKK).
• Integrated drying and moisture control for optimal printing conditions.

5. User-Friendliness

• 7-inch Touchscreen: Intuitive control and setting options.
• Filament Detection and Power Failure Protection: Safe and uninterrupted printing.
• Active Cooling of External Parts: Increases safety and extends component lifespan.

Why is a 200 °C Build Chamber Important? For PEEK

1. Direct annealing in the printer prevents warping and stress cracks.
2. No temperature shocks from manually removing the model.
3. Optimized material properties through precise and automated post-heating.

For PEI

1. Ensures perfect extrusion and layer adhesion, reduces stress cracks.
2. Direct drying and annealing improve material strength and chemical resistance.

Technical Specifications Feature Details Build Chamber Size 250 × 250 × 300 mm Nozzle Temperature Up to 480 °C Bed Temperature Up to 200 °C Build Chamber Temperature Up to 200 °C Material Compatibility PLA, ABS, PC, PEEK, PEI, Carbon Fiber Composites Cooling System Water and Air Cooling Device Size 630 × 555 × 815 mm Weight 120 kg Why is a 200 °C Build Chamber Difficult to Achieve?

Generating such a high temperature requires:

1. Special Components: Heat-resistant motors, belts, and electronics designed for continuous operation.
2. Thermal Insulation: Multi-layer materials and air cooling systems prevent heat transfer to the outside.
3. Safety Measures: External surface temperatures below 40 °C ensure user safety.

The CreatBot PEEK-250 combines these technologies to guarantee maximum performance and safety. This makes it the ideal choice for applications in aerospace, automotive, and medical technology.
