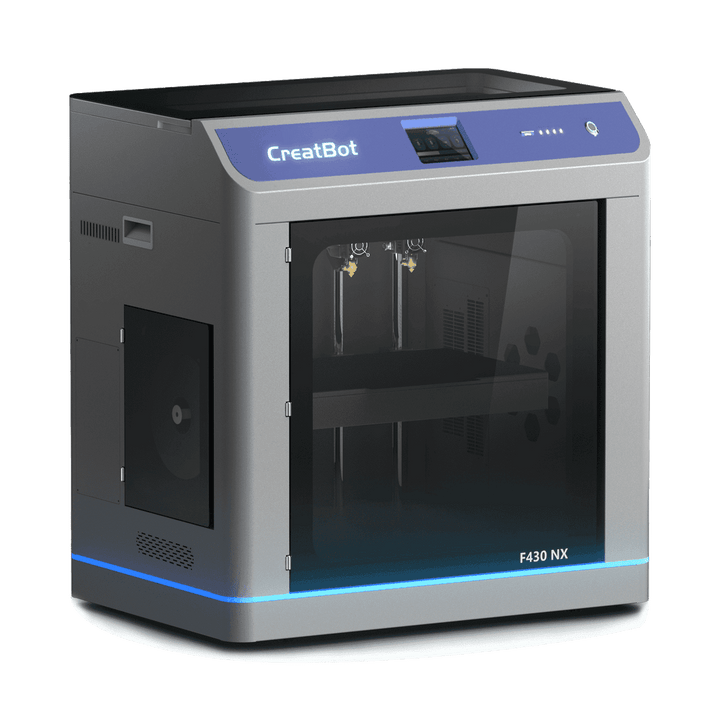

CreatBot F430 NX

CreatBot F430 NX: A new generation of high-performance 3D printers

The CreatBot F430 NX is the evolution of the proven F430 series, which has been sold over 5,000 times worldwide. It is aimed at professional users and offers state-of-the-art technologies for highly precise and fast 3D printing with a variety of materials.

Main features and advantages 1. Powerful extrusion system

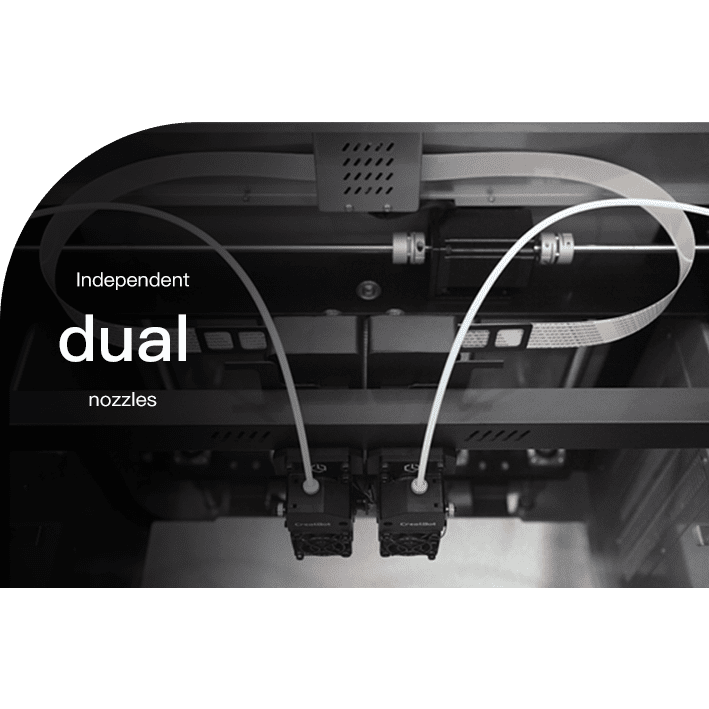

• Independent Dual Extruders (IDEX): For multi-material and multi-color prints. Supports single print, mirror, and copy mode.

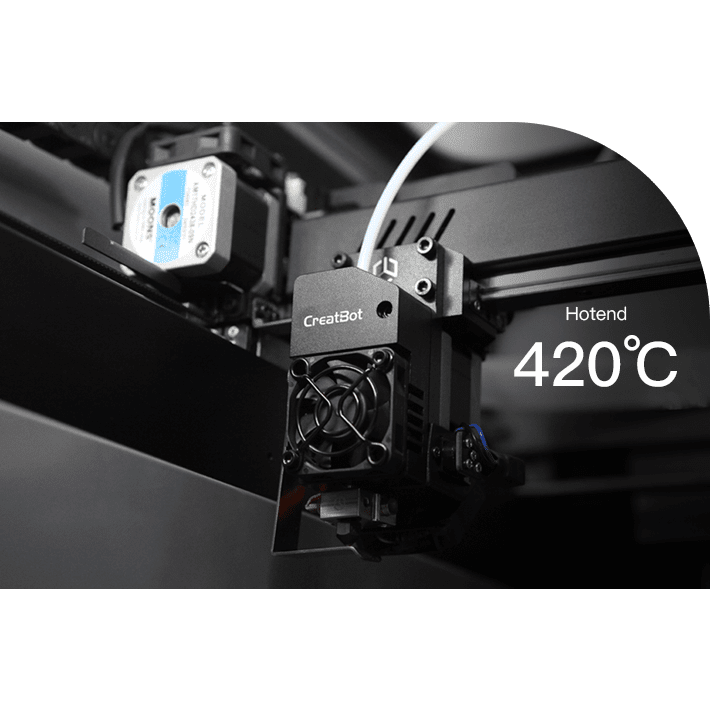

• Titanium alloy and silicon carbide nozzles: Heat resistant up to 420 °C, wear-resistant and ideal for abrasive materials like carbon or glass fiber.

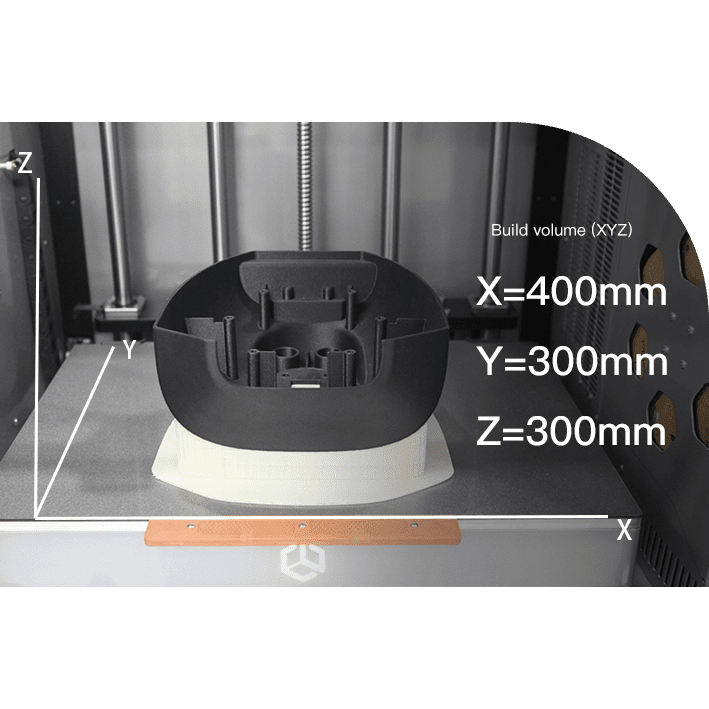

2. Large build volume

• Single print: 400 × 300 × 300 mm
• Dual print: 360 × 300 × 300 mm
• Copy mode: 225 × 300 × 300 mm
• Mirror mode: 190 × 300 × 300 mm

3. Materials and compatibility

• Supports common consumer materials like PLA, PETG and industrial materials like ASA, ABS, PC, Nylon, Carbon fiber.
• Filament diameter: 1.75 mm
• Integrated drying chamber: Up to 70 °C for moisture-sensitive materials.

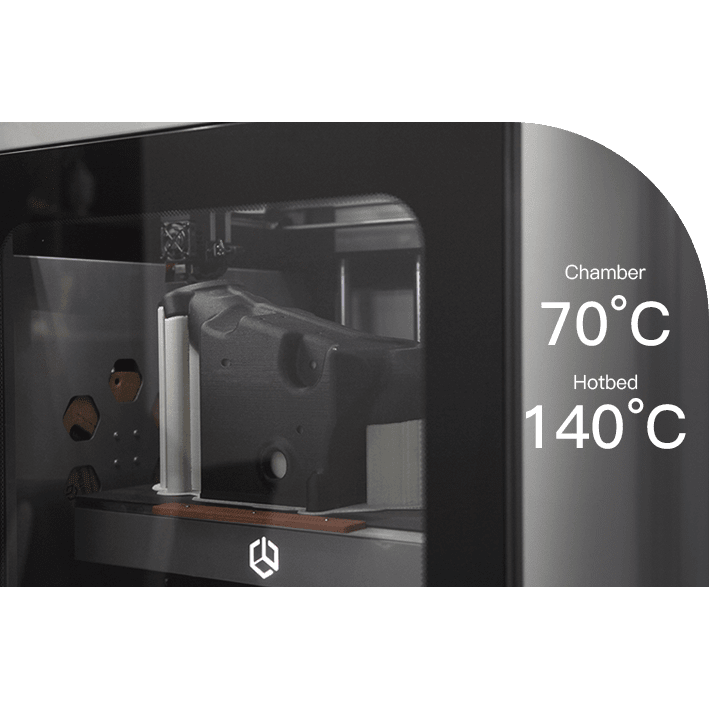

4. Heated work chamber

• Heated bed: Up to 140 °C
• Heated chamber: Up to 70 °C, to prevent shrinkage and cracks.

5. User-friendliness and safety

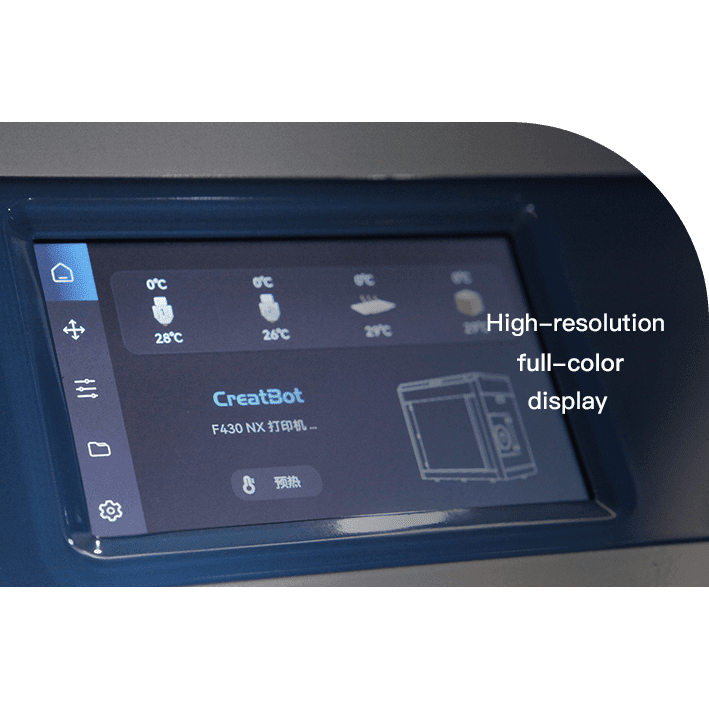

• 5-inch touchscreen: High resolution, lag-free and intuitive to operate.
• Integrated camera: For remote monitoring and real-time control.
• Air filter (HEPA + carbon): Ensures safety and clean air during printing.
• Thermal Runaway Protection: Protection against overheating.

Technical data Printing technology FFF Max. nozzle temperature 420 °C Max. heated bed temp. 140 °C Printing speed 50–300 mm/s Layer resolution 0.05 mm Printing materials PLA, ABS, Nylon, UltraPA-CF Noise level 50 dB Product dimensions 780 × 550 × 800 mm Weight 78 kg Conclusion

The CreatBot F430 NX is an all-rounder for professional applications. With its combination of large build area, excellent material support, and advanced technology like IDEX, it is the first choice for engineers, designers, and production professionals.
