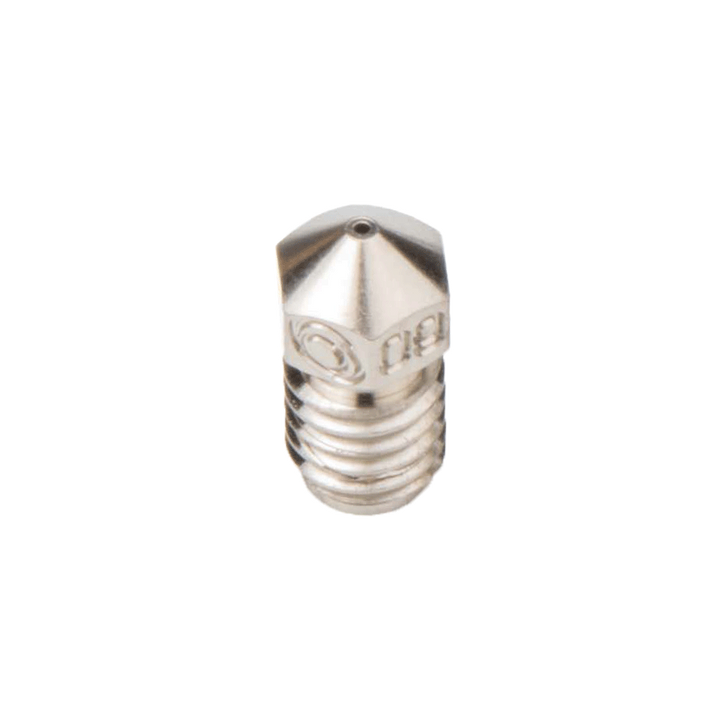

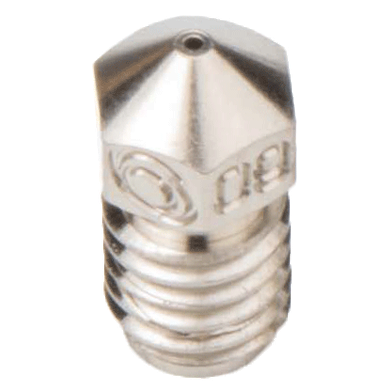

Bondtech CHT Brass Nozzle 0.4 mm

Bondtech CHT™ Nozzle

Main Advantages

• Higher melting capacity due to enlarged heating wall surface
• Price-performance ratio
• Ultra-precise machining
• Brass nozzle with nickel-coated surface
• Complies with RepRap standard (M6×1×7.5×12.5)
• Suitable for 1.75 mm or 2.85 mm hotends

Advantages of Bondtech CHT™ Technology

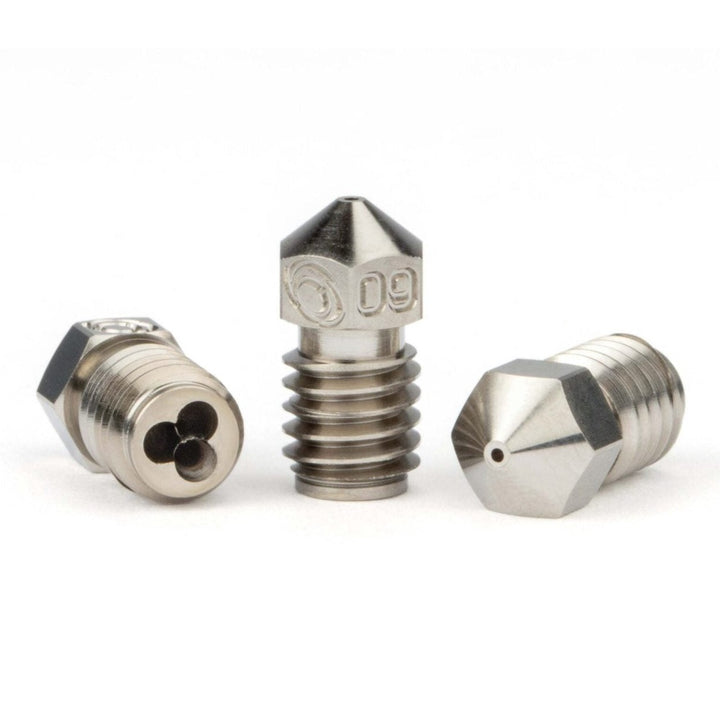

The Bondtech CHT™ nozzles split the filament into 3 thinner strands, allowing the material to melt faster from the inside. This enables higher flow rates.

Patented Technology: Core Heating

Registration number: EP3445568A1. These nozzles for 3D printers are made of metal and have at least one or more holes to enlarge the heating wall surface.

Advantages of the Nickel Coating

A nickel coating is applied to our coated brass nozzles to provide protection against corrosion, erosion, and abrasion. Nickel-coated nozzles have higher corrosion resistance and a lower coefficient of friction, enabling smoother material feeding and delaying plastic adhesion on the nozzle surface.

Recommended Materials

Use this nozzle with the following materials:

• PLA
• ABS
• HIPS
• PC
• TPU
• TPE
• Nylon
• PETG
• ASA
• PP
• PVA

For technical and abrasive materials, we recommend using other nozzles from our range.

Different Nozzle Sets for Different Materials

We recommend having multiple nozzle sets because:

• Using different materials with the same nozzles leads to deposits inside the nozzle.
• These deposits can cause blockages.
• We recommend changing the nozzles when switching materials.

Manufacturer Information

The nozzles are manufactured internally by Bondtech and fit the following hotends/blocks:

• Mosquito® / Magnum
• Mosquito® Liquid
• Mosquito® Magnum+
• Copperhead™
• E3D V4, V5 and V6 blocks
• E3D Chimera and Kraken
• RepRap M6
